Cambridge 223395 3/8L x 3/4S x 1/2I ERC x 50 feet JMF 061208500K EZ Rubber PDM GBW.UN383412050B

Product Description

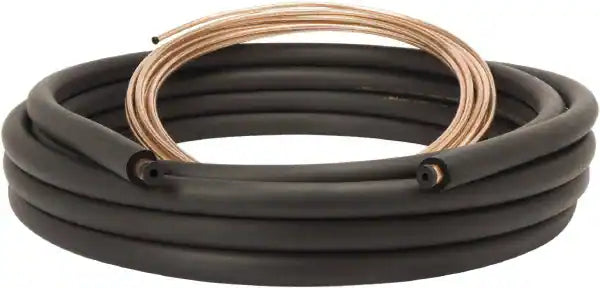

The Cambridge 223395 is identified with specifications of 3/8L X 3/4S X 1/2I ERC X 50', and includes the identifier JMF 061208500K, described as EZ Rubber PDM GBW.UN383412050B. This product functions as a copper tubing line set, connecting split system air conditioners and heat pumps. It features a 50 ft length, with a 3/8 inch liquid line and a 3/4 inch suction line, and 1/2 inch thick elastomeric thermal insulation.

• Produced in accordance with ASTM B280 & ASTM B1003 standards for quality.
• Features a Flame Spread Index of 25/50, plenum rated to ASTM E84, UL723, NFPA 255.
• Thermally effective across a wide range, from -40 degrees Fahrenheit to 200 degrees Fahrenheit.

Product Highlights

This copper lineset is designed for HVAC systems, offering durable, insulated tubing for efficient refrigerant transfer.

Product Information

Standard Information

• Brand: CAMBRIDGE
• Manufacturer Part Number: 223395
• Country of Origin: USA

Technical Specifications

• Additional Information: Elastomeric Thermal Insulated
• Domestic/Import: Domestic
• Insulation Thickness: 1/2 in
• Length: 50 ft
• Liquid Line Size: 3/8 in
• Material Standard: ASTM B280/B1003/E84/E96/G90
• Material: Copper
• Suction Line Size: 3/4 in
• Temperature Rating: -40 to 200 deg F
