Cambridge 112768 Female Disconnect Awg 16-14 Blue Pvc

Product Description

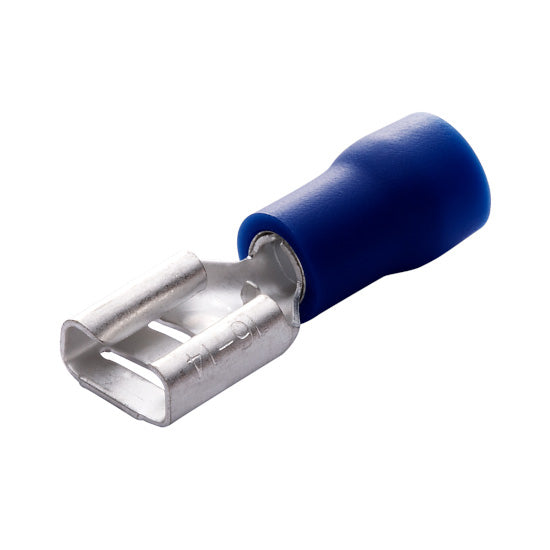

The CAMBRIDGE 112768 is a female disconnect terminal designed for quick-connect and quick-disconnect wiring applications in electrical, HVAC, and control wiring systems. It accepts 16 to 14 AWG wire and features a blue PVC insulating sleeve, which corresponds to the standard color code for 16-14 AWG wire range. The 1/4 inch tab width fits standard male disconnect terminals and spade connectors. Electricians, HVAC technicians, and control system installers use these terminals to create reliable, serviceable connections without soldering.

This terminal is suited for residential and light commercial wiring tasks where removable connections are required. Common applications include low-voltage control wiring, appliance wiring, motor connections, and panel wiring where conductors fall within the 16 to 14 AWG range. The blue insulation sleeve provides a visual reference for correct wire gauge selection during installation and inspection.

Key Features

• Blue PVC insulating sleeve rated for 16-14 AWG wire range
• 1/4 inch female tab width fits standard spade and disconnect terminals
• Quick-disconnect design allows tool-free removal during service
• PVC insulation provides basic protection against incidental contact at the termination point

Compatibility

Designed as a standard female disconnect terminal compatible with 1/4 inch male spade terminals and disconnect tabs commonly used in residential and light commercial electrical and HVAC control wiring with 16-14 AWG conductors.

Installation Notes

Installation is performed by licensed electricians or qualified HVAC technicians. De-energize the circuit and verify zero voltage with a meter before terminating any conductor. Use a ratcheting wire crimper sized for insulated terminals to ensure a secure, low-resistance crimp on the 16-14 AWG conductor. Wiring must comply with applicable NEC requirements for the circuit type and environment.

Technical Specifications

• Wire Range: 16-14 AWG
• Tab Width: 1/4 inch
• Insulation Color: Blue
• Insulation Material: PVC
• Terminal Gender: Female
• UPC: 680183119135

Standard Information

• Brand: CAMBRIDGE
• Manufacturer Part Number: 112768
