Calterm 41310 Illuminated Rocker Switch Panel 20A 12V

Product Description

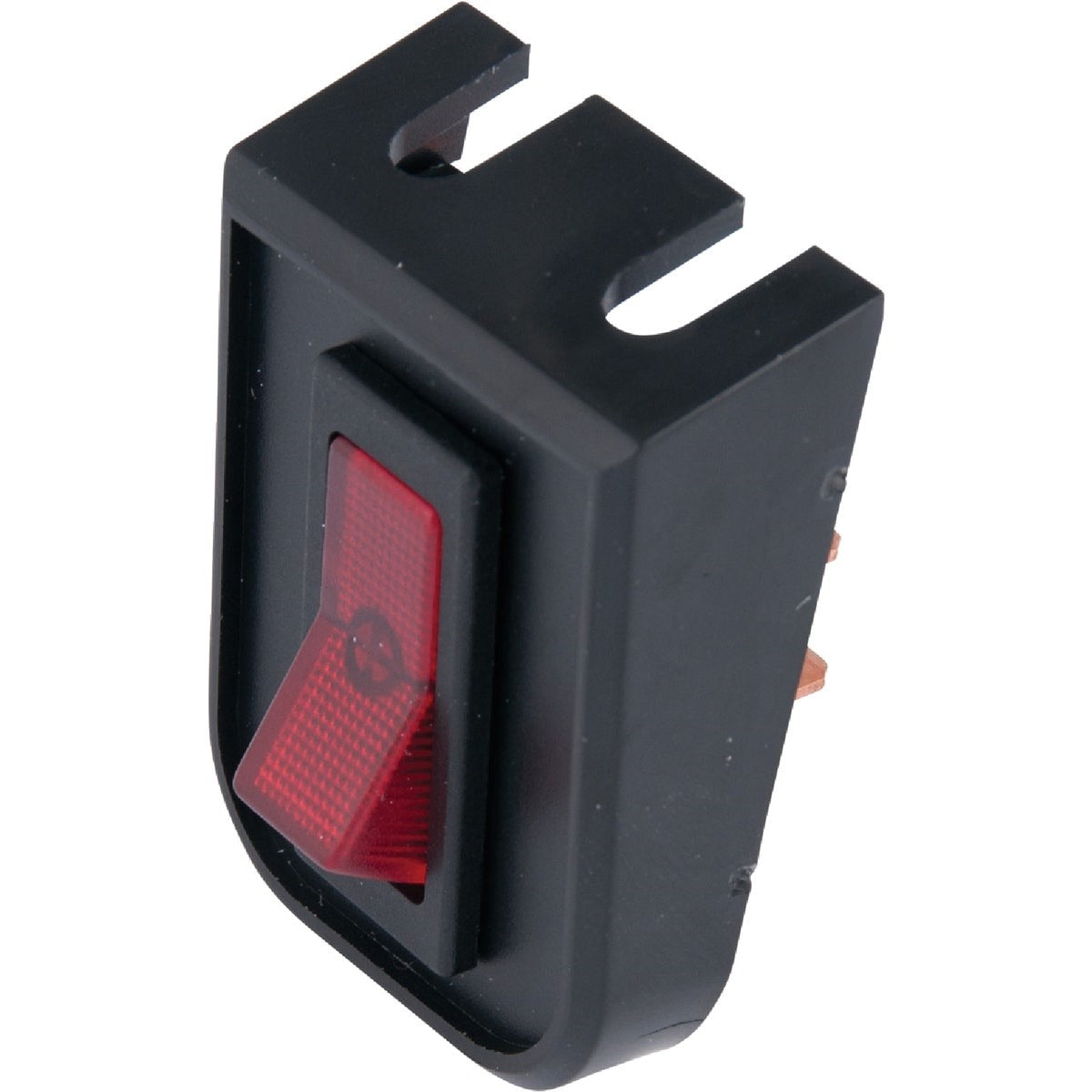

The CALTERM 41310 is an illuminated rocker switch panel combination that consolidates indicator and switching functions into a single compact unit. Rated at 12 volts DC and 20 amps, it uses an incandescent non-replaceable bulb with a colored lens to provide a visual status indicator while handling load switching in one assembly. The male blade terminals measure 0.250 inches and the unit also includes wire leads for flexible wiring options. Designed for 12V DC electrical systems, this switch is suited for automotive, marine, and light equipment applications where panel space is limited and combined indicator-switch functionality is needed.

This rocker switch panel combination is intended for 12V DC electrical installations in vehicles, boats, utility trailers, and similar mobile or off-road equipment. It mounts directly into a standard panel cutout and can be ganged with additional panels using the included clip, allowing technicians to build out multi-switch control panels cleanly. The red illuminated lens makes switch status easy to read in low-light conditions. Automotive electricians and marine technicians are the typical installers for this type of component.

Key Features

• Combined indicator and switch in one unit — eliminates separate pilot light and switch
• Rated 12V DC at 20 amps for reliable load switching
• Incandescent non-replaceable colored lens provides visual status indication
• Male blade terminals at 0.250 inches plus wire leads for flexible installation
• Includes clip for ganging multiple panels together in a single mounting area
• Red illuminated lens for clear status visibility in low-light environments

Compatibility

Designed for use in 12V DC panel installations including automotive, marine, and light equipment control panels. Additional panels of the same type can be mounted together using the provided clip.

Installation Notes

Installation should be performed by a qualified automotive or marine electrician. Disconnect the vehicle or equipment battery before beginning any wiring work to prevent shorts or unintended circuit activation. Ensure the circuit load does not exceed the 20-amp rating of the switch. Secure all terminal connections fully and verify the panel cutout dimensions match the switch body before mounting.

Technical Specifications

• Voltage Rating: 12V DC
• Current Rating: 20 amps
• Terminal Size: 0.250 inches
• Terminal Type: Male blade with wire leads
• Bulb Type: Incandescent non-replaceable
• Lens Color: Red
• Weight: 0.06 pounds

Standard Information

• Brand: CALTERM
• Manufacturer Part Number: 41310
