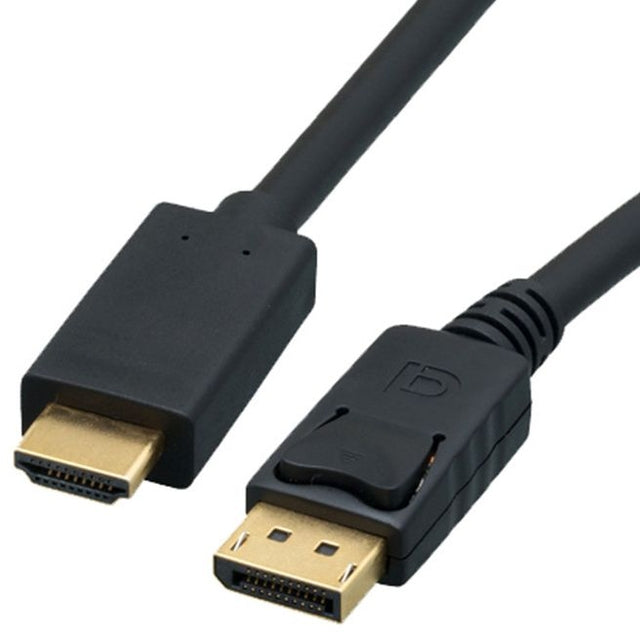

Calrad 55-651-6 active male displayport to hdmi male cable 6 ft. long

Product Description

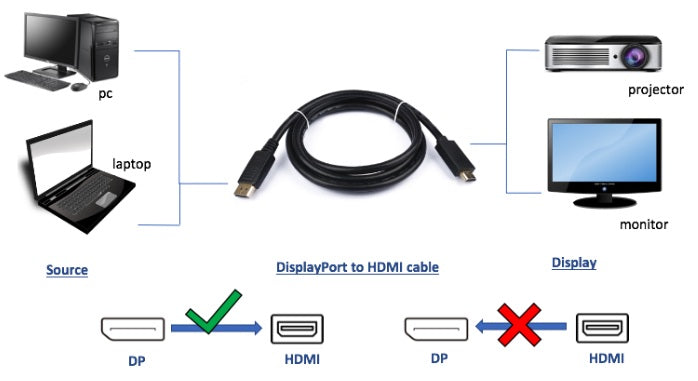

The CALRAD 55-651-6 is an active cable that connects a DisplayPort equipped computer to an HD monitor or projector with HDMI input. It supports HBR bandwidth and resolutions up to 4Kx2K@30Hz. The DisplayPort connector includes latches to keep the cable securely plugged in. All materials are RoHS compliant.

• Compliant with DP1.2 specification.
• Gold-plated connector provides superior transmission, high reliability and durability.
• Deliver high definition audio and video signals from your computer to a monitor for video streaming or gaming.

Product Highlights

This 6 ft. long cable supports up to 192 kHz audio frame rate and up to 24-bit audio sample size. It is HDMI 1.4a compliant with a maximum data rate of 3.0Gbps.

Product Information

Standard Information

• Brand: CALRAD
• Manufacturer Part Number: 55-651-6

Technical Specifications

• Support: up to 192 khz audio frame rate and up to 24-bit audio sample size.
• HDMI: 1.4a compliant with maximum data rate 3.0Gbps.
• Content protection: of HDCP Rx and Tx keys to support HDCP repeater.
• Integrated: both HDCP Rx and Tx keys to support HDCP connectivity.
• Powered: from DisplayPort source.
• Connector A: DisplayPort Male
• Connector B: HDMI Male
• Cable Color: Black Color
• Support DisplayPort1.2 and 4 lanes: Support DisplayPort 1.2a input and HDMI1.4b output.
• Support HDMI highest video resolution: 4Kx2K@30Hz
• Support multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2, 8/10/12bpc.
• Support 10/12-bit deep color 1080p up to 2.25Gbps and 3D video formats: (720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24Hz, 1080P@50/59.94/60Hz) up to 2.97Gbps, 4Kx2K@30Hz.
• Cable length: 6'
