Calrad 55-651-3 Active 4Kx2K@30Hz, Male Plug DisplayPort to HDMI Male Plug Cable, 3 Ft. Long

Product Description

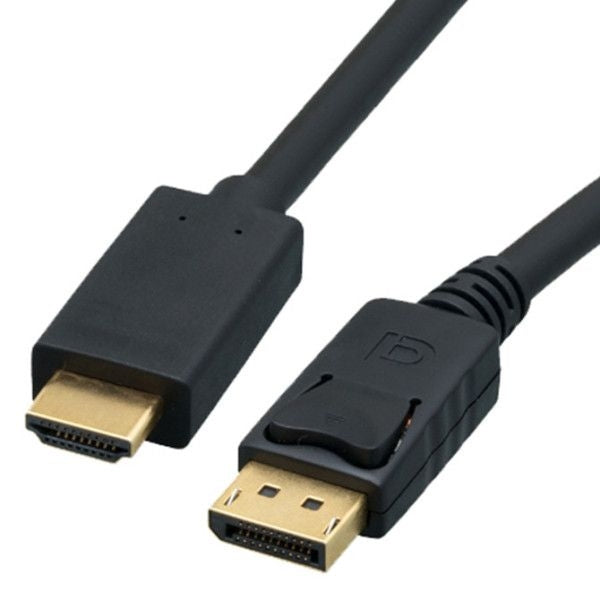

The CALRAD 55-651-3 is an active cable that supports 4Kx2K@30Hz, and features a male DisplayPort plug to a HDMI male plug, with a length of 3 feet. This cable supports DisplayPort 1.2a input and HDMI 1.4b output. It delivers high-definition audio and video signals from your computer to a monitor for video streaming or gaming.

• Compliant with DP1.2 specification.

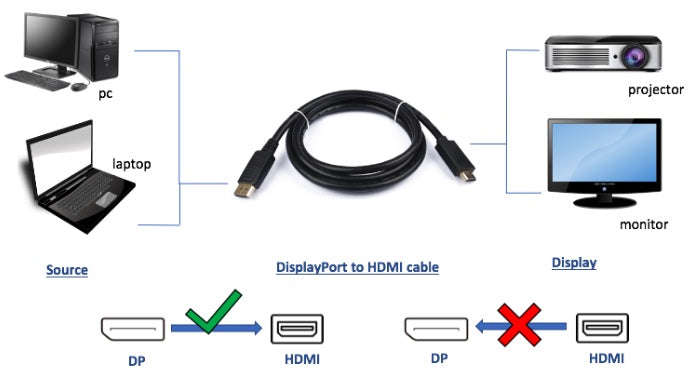

• Connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to a HD monitor or projector with HDMI input.
• Support HBR bandwidth and resolutions up to 4Kx2K@30Hz.

Product Highlights

This Calrad cable ensures reliable high-definition audio and video transmission with resolutions up to 4Kx2K@30Hz. Gold-plated connectors maintain strong signal integrity, and the latching DisplayPort plug prevents accidental disconnections.

Product Information

Standard Information

• Brand: CALRAD
• Manufacturer Part Number: 55-651-3

Technical Specifications

• Support DisplayPort: 1.2a input and HDMI1.4b output.
• Support HDMI highest video resolution: 4Kx2K@30Hz.
• Support multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2, 8/10/12bpc.
• HDMI: 1.4a compliant with maximum data rate 3.0Gbps.
• Support: up to 192 khz audio frame rate and up to 24-bit audio sample size.
• Content protection: of HDCP Rx and Tx keys to support HDCP repeater.
• Integrated: both HDCP Rx and Tx keys to support HDCP connectivity.
• Powered: from DisplayPort source.
• Connector A: DisplayPort Male
• Connector B: HDMI Male
• Cable Color: Black Color
• Resolution: 4K X 2K @ 30Hz
• Standards Approvals: Rohs Compliant
