Product Description

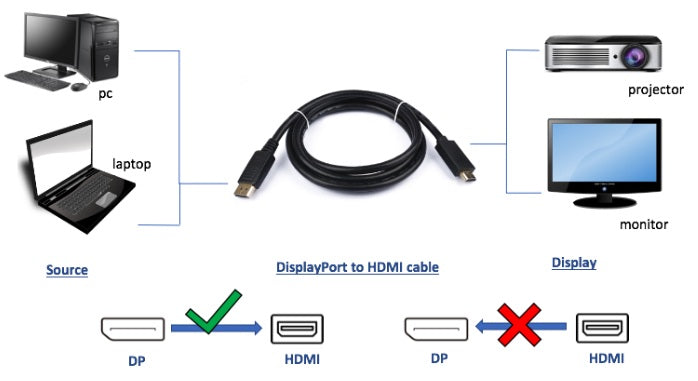

The CALRAD 55-651-10 is an active cable that connects a DisplayPort-equipped computer to an HD monitor or projector with HDMI input. It supports HDMI highest video resolution 4Kx2K@30Hz and HBR bandwidth. The DisplayPort connector includes latches to keep the cable securely plugged in. Compliant with DP1.2 specification.
- Compliant with DP1.2 specification.
- Connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to a HD monitor or projector with HDMI input.
- Support HBR bandwidth and resolutions up to 4Kx2K@30Hz.
Product Highlights
This cable delivers high-definition audio and video signals for video streaming or gaming. Gold-plated connectors provide superior transmission, high reliability, and durability.
Product Information
Standard Information
-
Brand: CALRAD
-
Manufacturer Part Number: 55-651-10
Technical Specifications
-
Support: HDMI highest video resolution 4Kx2K@30Hz
-
Support multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2, 8/10/12bpc
-
HDMI 1.4a compliant with maximum data rate: 3.0Gbps
-
Support 10/12-bit deep color 1080p up to: 2.25Gbps and 3D video formats (720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24Hz, 1080P@50/59.94/60Hz) up to 2.97Gbps, 4Kx2K@30Hz
-
Content protection of HDCP Rx and Tx keys to: support HDCP repeater
-
Support up to: 192 khz audio frame rate and up to 24-bit audio sample size
-
Integrated both HDCP Rx and Tx keys to: support HDCP connectivity
-
Powered from: DisplayPort source
-
Connector A: DisplayPort Male
-
Connector B: HDMI Male
-
Cable Color: Black Color
