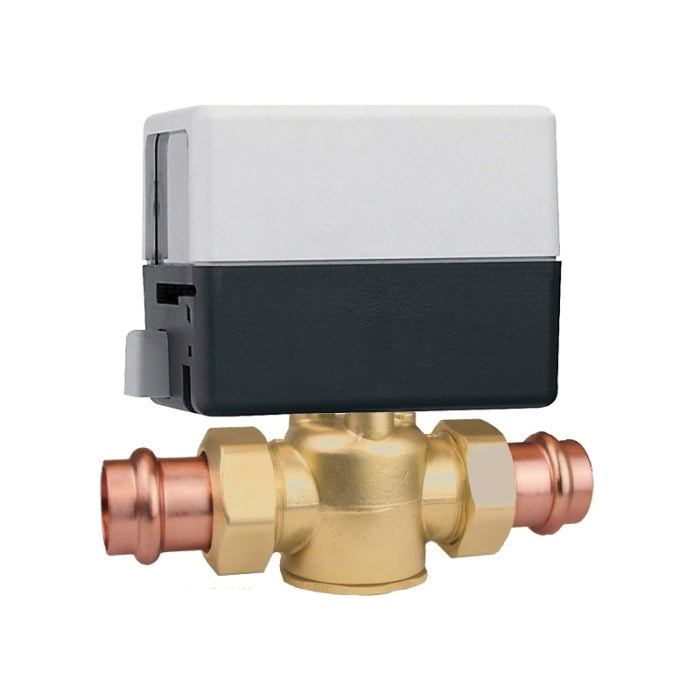

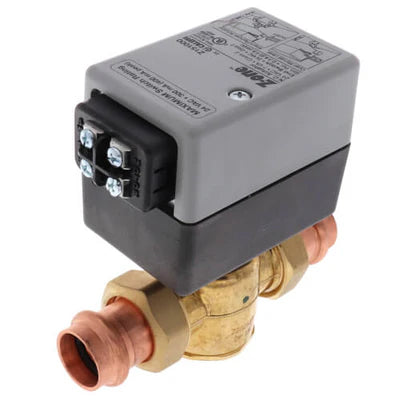

Caleffi Z56P 24V NC 2 Way Zone Valve 1 Union Press Connections 7.5cv Terminal Block & Aux. Switch

Product Description

The Caleffi Z56P 24V NC 2 Way Zone Valve, designed for HVAC systems, ensures optimal control and performance. This valve, identified by MPN Z56P, offers enhanced system efficiency and reliability.

• 1 union press connections for secure fitting.
• 7.5cv terminal block ensures reliable power.
• Auxiliary switch for remote activation.

Product Highlights

This zone valve is built for demanding applications and harsh environments. It remains closed until actuated, enhancing energy efficiency. The 24V operation is compatible with most HVAC systems, and its low power consumption reduces operating costs.

Product Information

Standard Information

• Brand: Caleffi
• MPN: Z56P

Technical Specifications

• Amperage Rating: 0.4 A
• Coefficient of Volume: 7.5 Cv
• Differential: 20 psi
• Dimensions: 5-5/8 inches
• Electrical Connections: Screw Terminal
• End Style: Press
• Material: Forged Brass
• Nominal Size: 1 inch
• Pressure Rating: 300 psi
• Series: Z Series
• Type: 2-Way
• Voltage Rating: 24 VAC
• Water Temperature: 32 to 240 deg F
