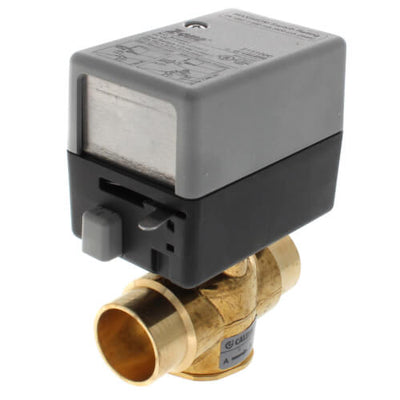

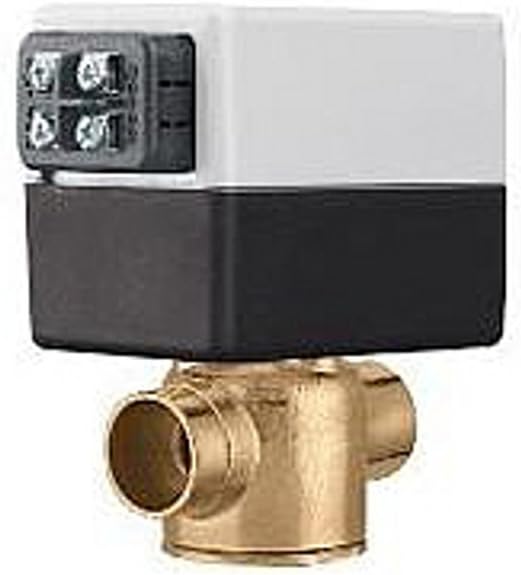

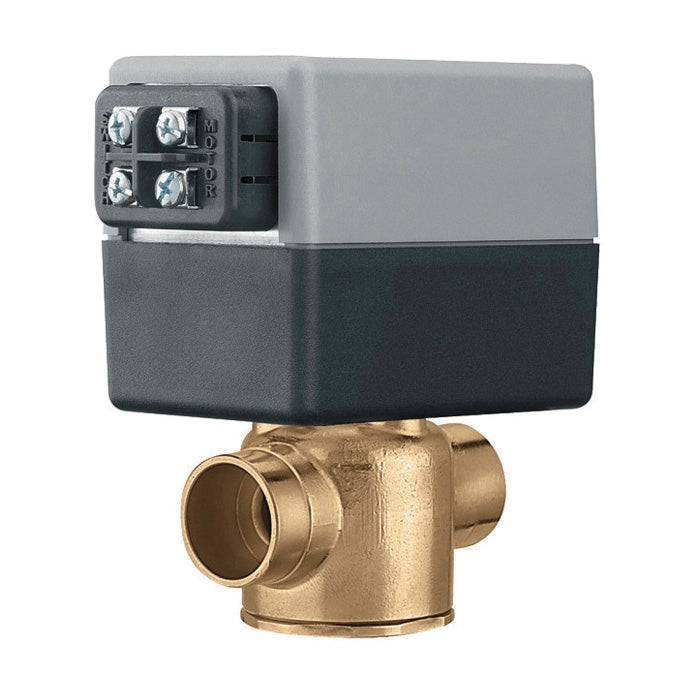

Caleffi Z56 1-Inch Sweat 2-Way Normally Closed Zone Valve 24-Volt 7.5C

Product Description

The Caleffi Z56 1-Inch Sweat 2-Way Zone Valve, MPN Z56, is designed for hydronic HVAC systems. It operates at 24 volts and is normally closed. With a flow capacity of 7.5 Cv at 20 psig, it ensures precise control over the flow of hot or chilled water.

• Automatically shut-off or redirect flow in hydronic HVAC systems
• Compact and easy to install
• 1-inch sweat connection

Product Highlights

The Caleffi Z56 Zone Valve is ideal for controlling flow in heating and cooling systems. Its normally closed design guarantees flow restriction until energized, ensuring reliable performance and energy efficiency in any application.

Product Information

Standard Information

• Brand: Caleffi
• MPN: Z56

Technical Specifications

• Voltage Rating: 24 VAC
• Amperage Rating: 0.4 A
• Pressure Rating: 300 psi
• Max Temperature: 240 degrees Fahrenheit
• Flow Capacity (Cv): 7.5
• Connection Type: Sweat
• Size: 1 inch
• Material: Forged Brass
