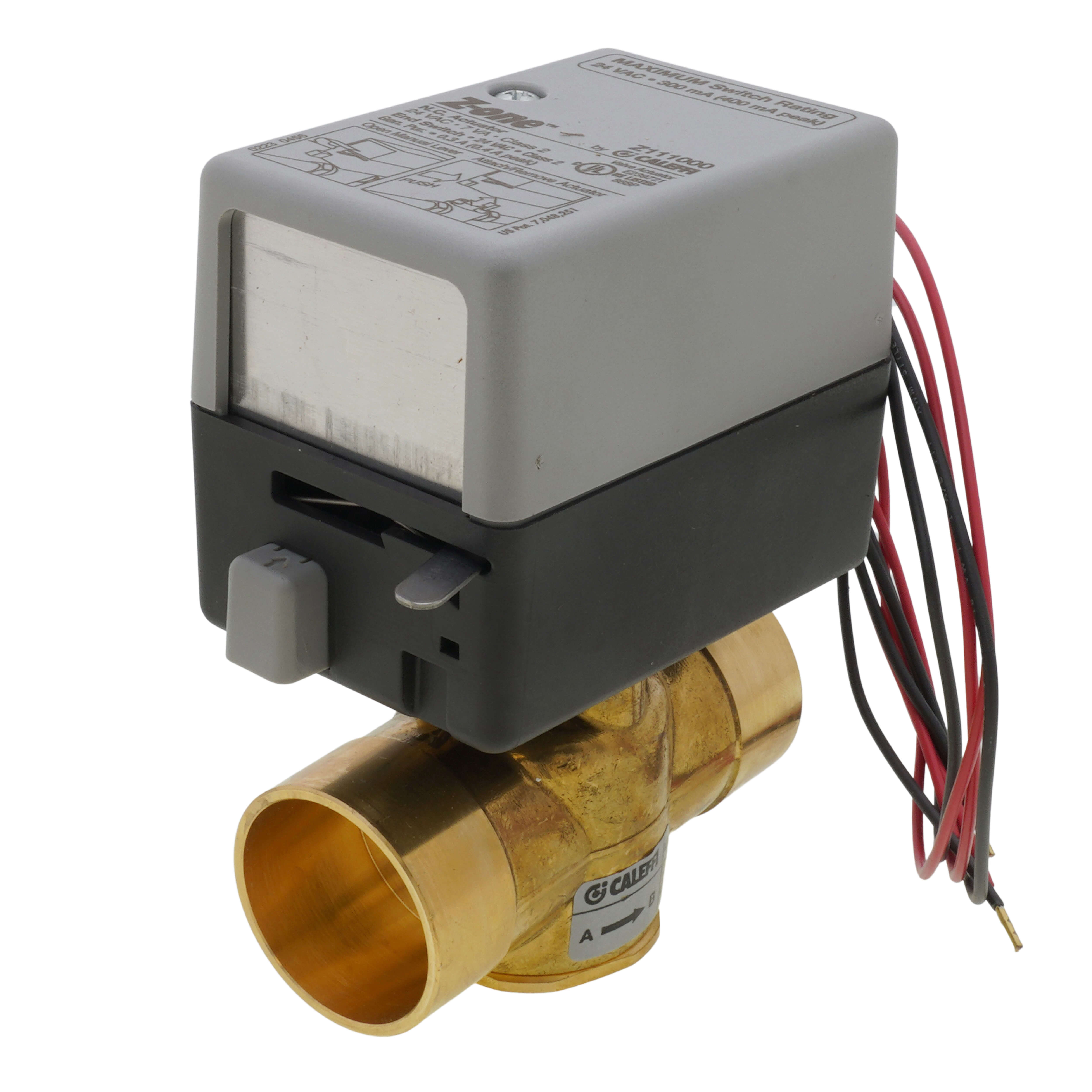

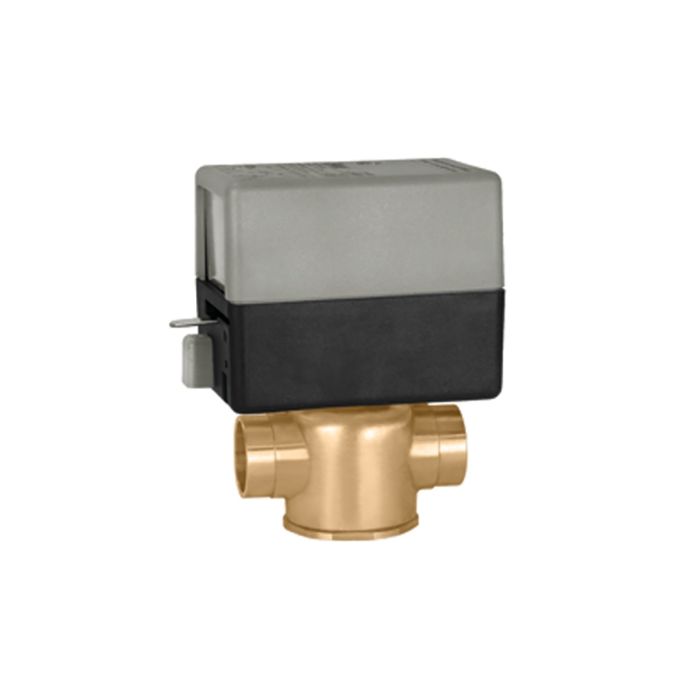

Caleffi Z47 Z-One 2-Way Zone Valve 24 V (1-1/4 inches)

Product Description

Caleffi Z47 is a 1-1/4 inch Z-One two-way motorized zone valve with a 24 V snap-on actuator. The forged brass valve provides a Cv of 7.5 and a sweat connection for hydronic systems, with a typical operating temperature range of 32 to 240 F and a pressure rating up to 300 psi. It includes an auxiliary end switch (0.4 A at 24 V), spring-return operation, 18 inch wire lead, and 7 VA actuator power consumption.

• 1-1/4 inch sweat connection two-way valve, forged brass body, Cv 7.5
• 24 V AC snap-on actuator, spring-return, power consumption 7 VA, 18 inch wire
• Suitable for water, up to 50% glycol, and vapor up to 15 psi; operating temperature 32 to 240 F; pressure rating 300 psi

Product Highlights

Motorized 2-way zone valve, 1-1/4" sweat connection, 24 V actuator, Cv 7.5, auxiliary end switch (0.4 A), forged brass, 32-240 F, 300 psi

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: Z47
• Country of Origin: Italy
