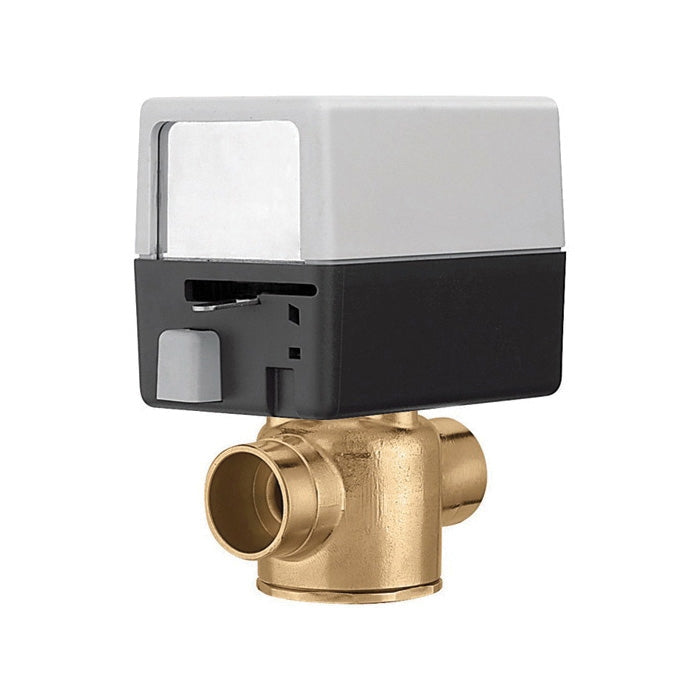

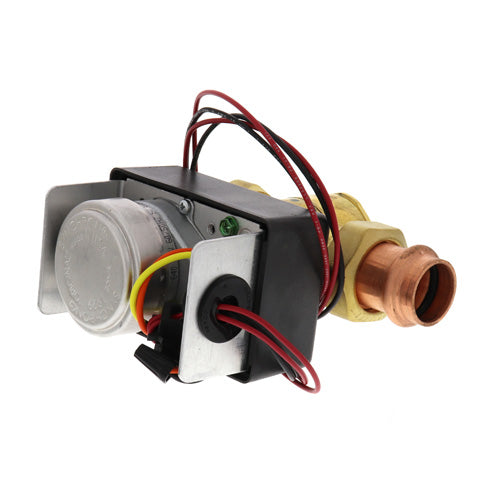

Caleffi Z45P 24V 3/4 Press Fit Zone Valve 7.5 CV 2-Way NC w/18 Leads and Aux Switch

Product Description

The Caleffi Z45P 24V 3/4 Press Fit Zone Valve is a high-performance component for hydronic heating and cooling systems. This valve features a press-fit design for easy installation without soldering or threading. The 3/4 size and 2-way normally closed configuration make it versatile for various applications.

• 24V actuation compatible with standard control systems
• 7.5 CV flow capacity for optimal flow control
• Normally closed operation to prevent unwanted flow

Product Highlights

Enhance your system's performance and efficiency with the Caleffi Z45P. Its advanced press-fit design saves installation time, while the auxiliary switch allows for remote status monitoring.

Product Information

Standard Information

• Brand: Caleffi
• MPN: Z45P

Technical Specifications

• Voltage Rating: 24 VAC
• Amperage Rating: 0.4 A
• Pressure Rating: 300 psi
• Water Temperature: 32 to 240 deg F
• Nominal Size: 3/4 in
• Coefficient of Volume: 7.5 CV
• Material: Forged Brass
• Electrical Connections: 18 in Wire Lead
