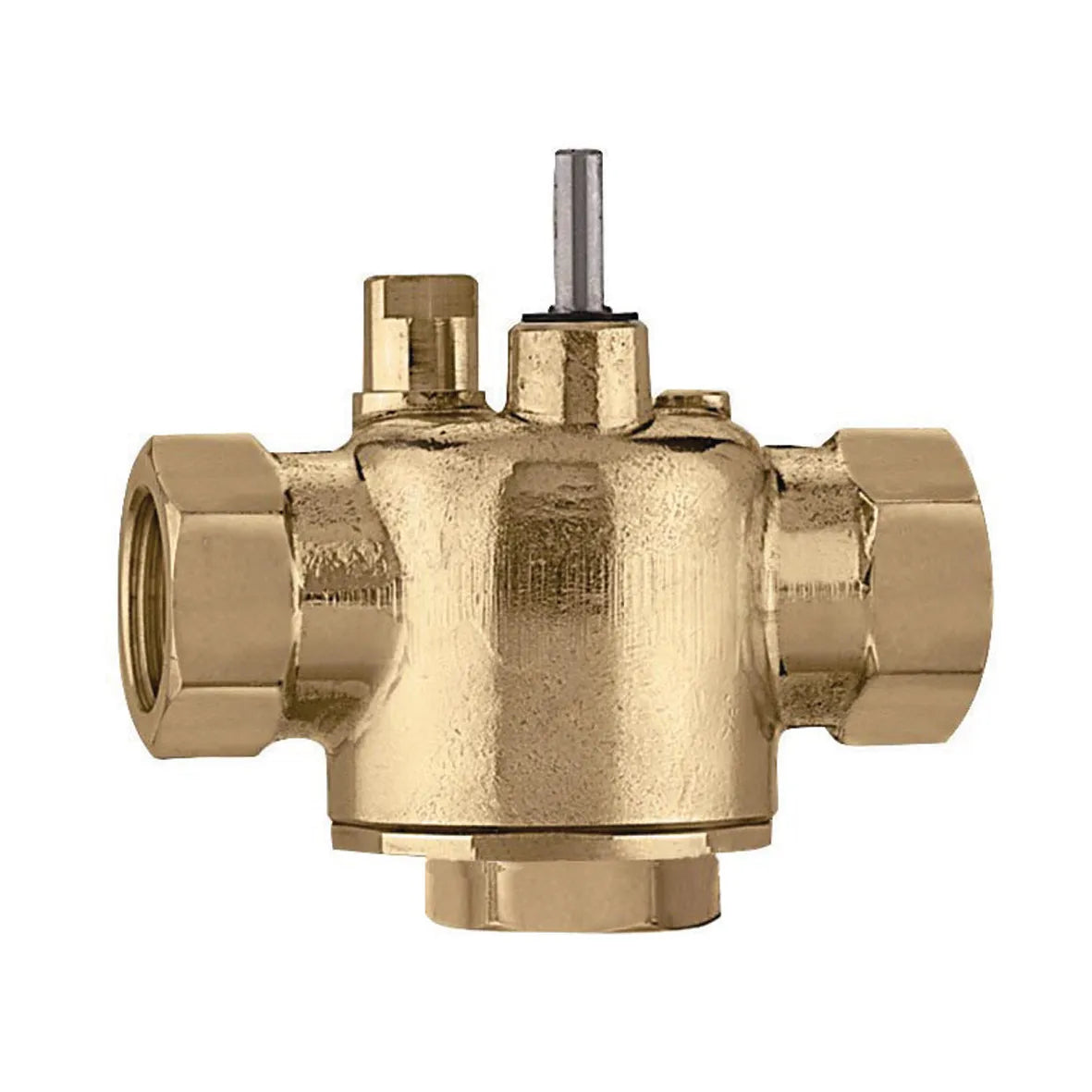

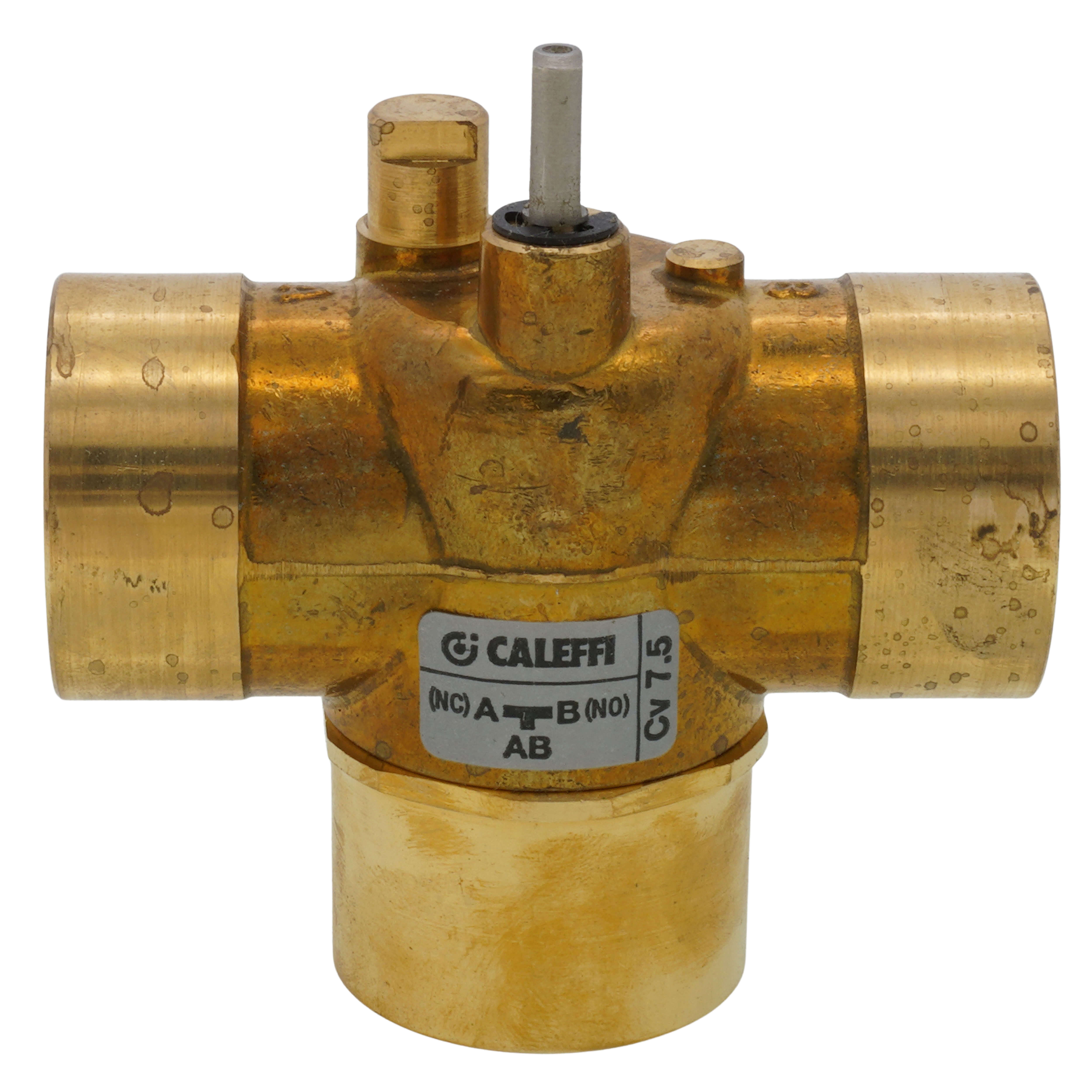

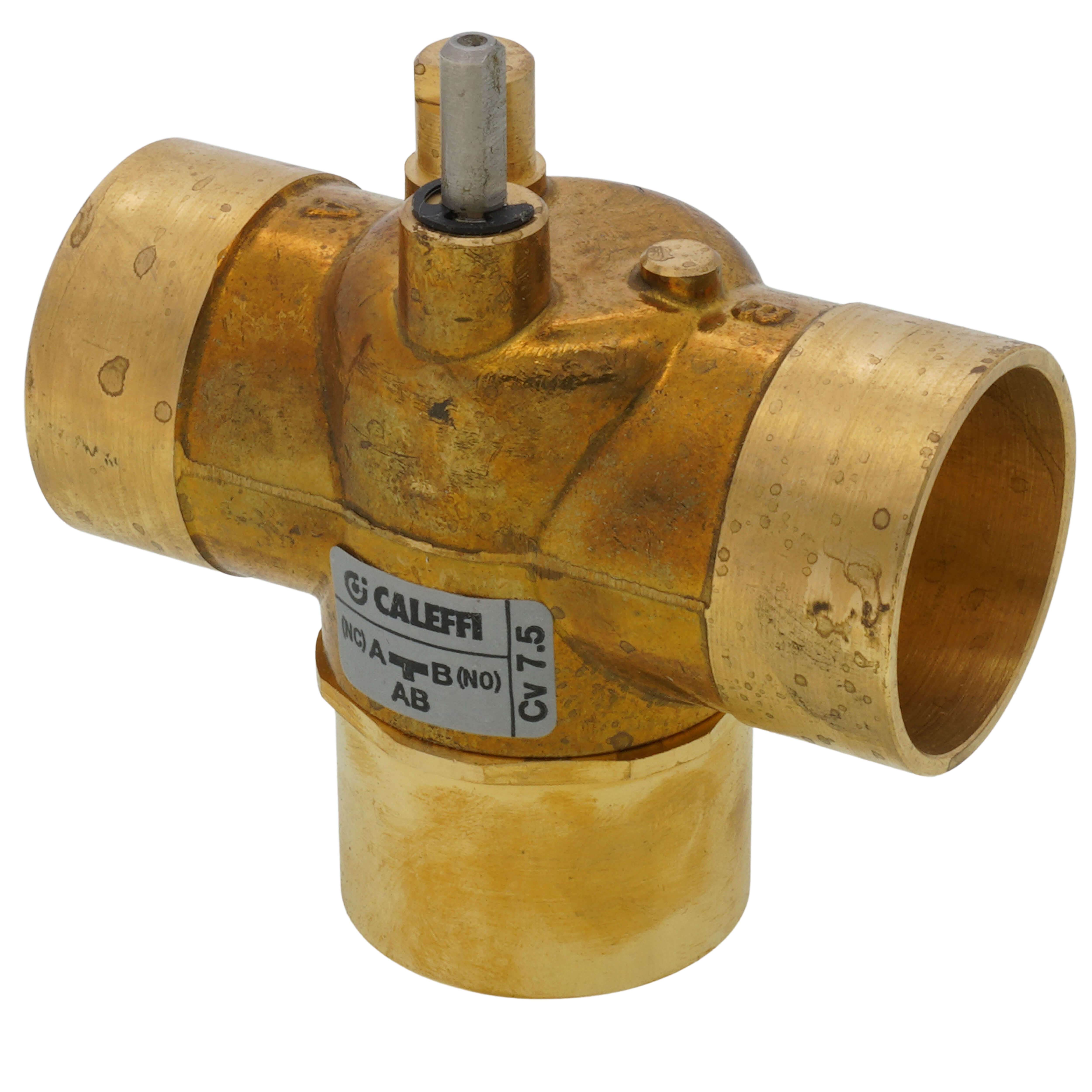

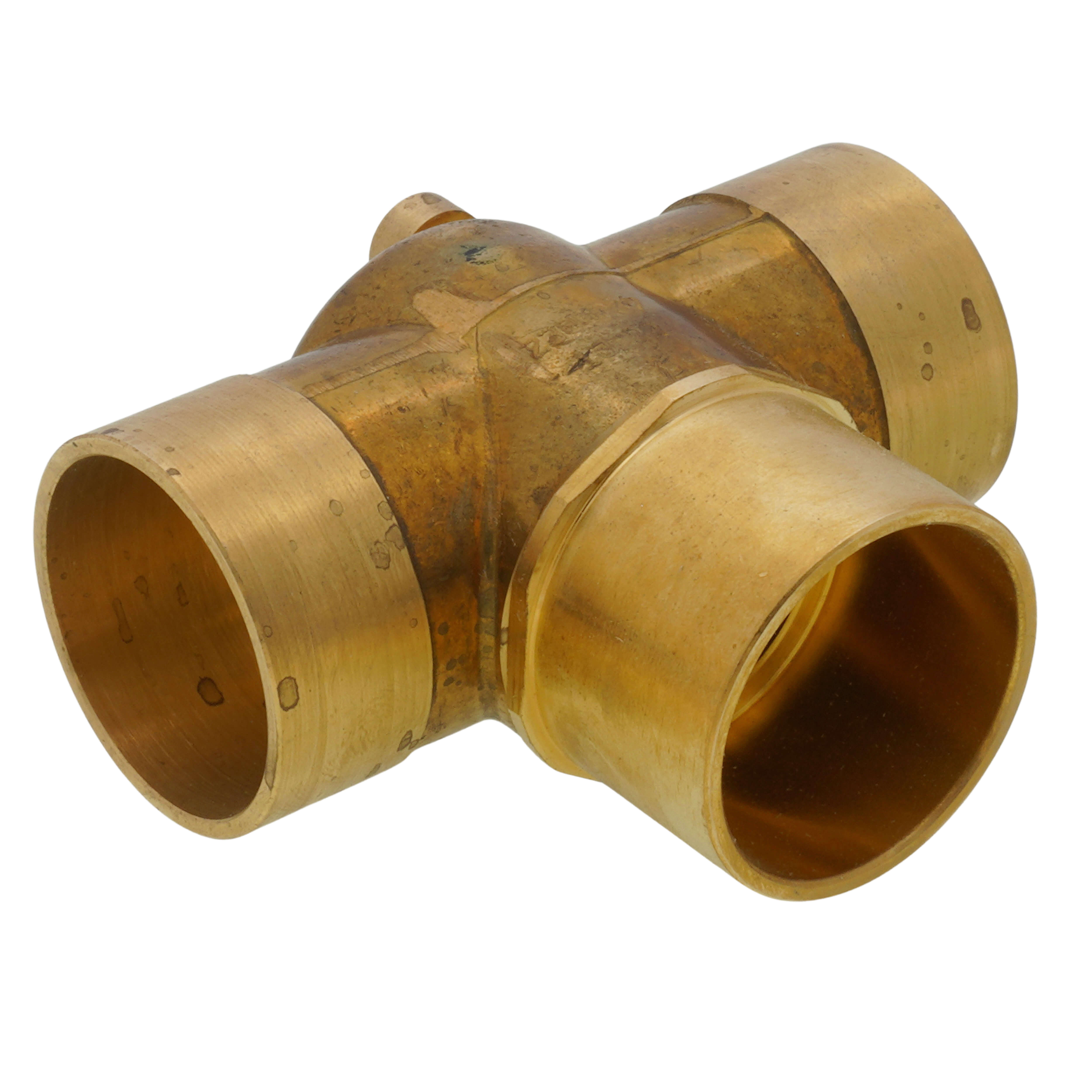

Caleffi Z300737 Z-One 3-Way Diverting Valve Body 1-1/4 inches

Product Description

The CALEFFI Z300737 Z-One 3-Way Diverting Valve Body is designed to automatically shut-off or redirect hot and chilled water in hydronic heating and air conditioning systems. Features a sweat connection type and a flow capacity (Cv) of 7.5. Compact size makes it suitable for installation inside baseboards or fan coil units.

• Automatically shut-off or redirect hot or chilled water in hydronic heating and air conditioning systems
• Compact Size
• Easy installation

Product Highlights

The CALEFFI Z300737 is a 3-way diverting valve body with a 1-1/4" connection, ideal for hydronic systems.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: Z300737

Technical Specifications

• MPN: Z300737
• Manufacturer: Caleffi
• Brand: Caleffi
• Product Type: MECHANICAL_COMPONENTS
• Product Group: BISS
• Connection Type: Sweat
• Connection Size: 1.25 Inches
• Flow Capacity (Cv): 7.5
• Max Close-Off PSI: 20 psi
• Max Temp (F): 240°F
• Body Pattern: Diverting, 3-Way
• Size: 1-1/4"
• Maximum operating pressure: 300 psi
• Medium temperature range: 32–240 °F
• Material: brass
• Coefficient of Volume: 7.5 Cv
• Pressure Rating: 300 psi
• Series: Z Series
• Type: 3-Way Diverting
• Water Temperature: 32 to 240 deg F
• Nominal Size: 1-1/4 In
