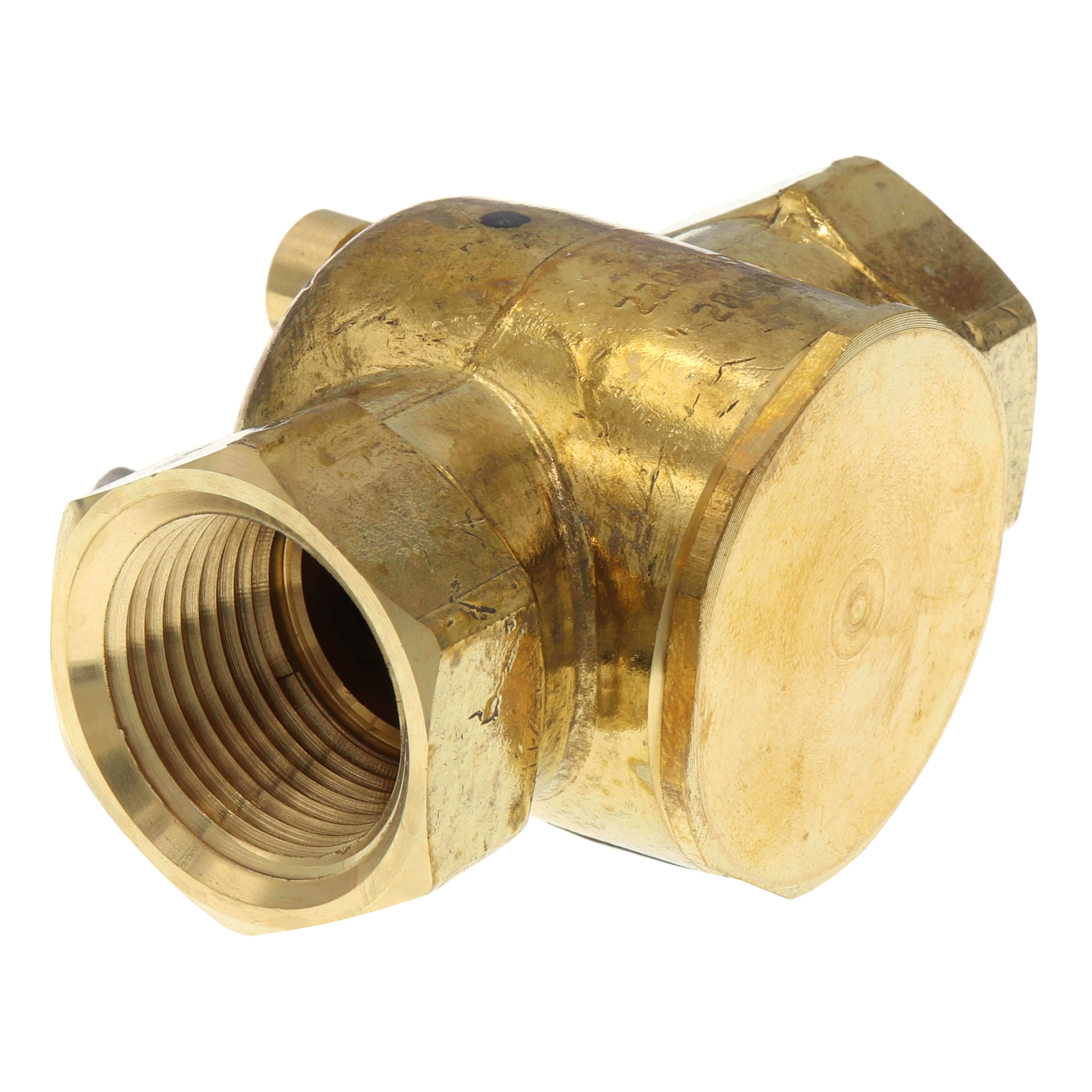

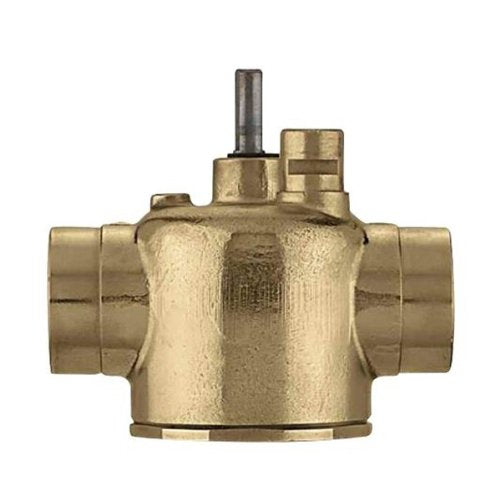

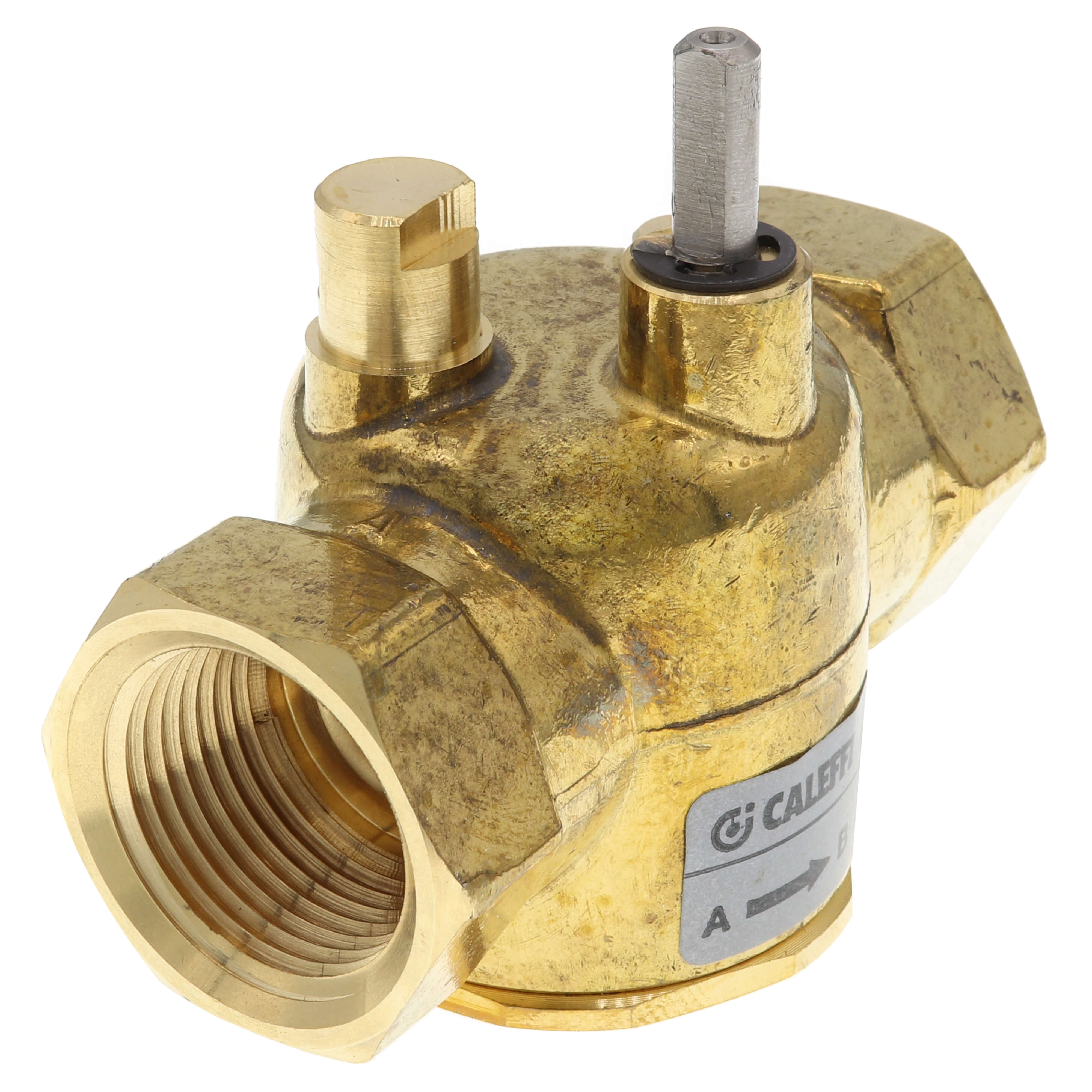

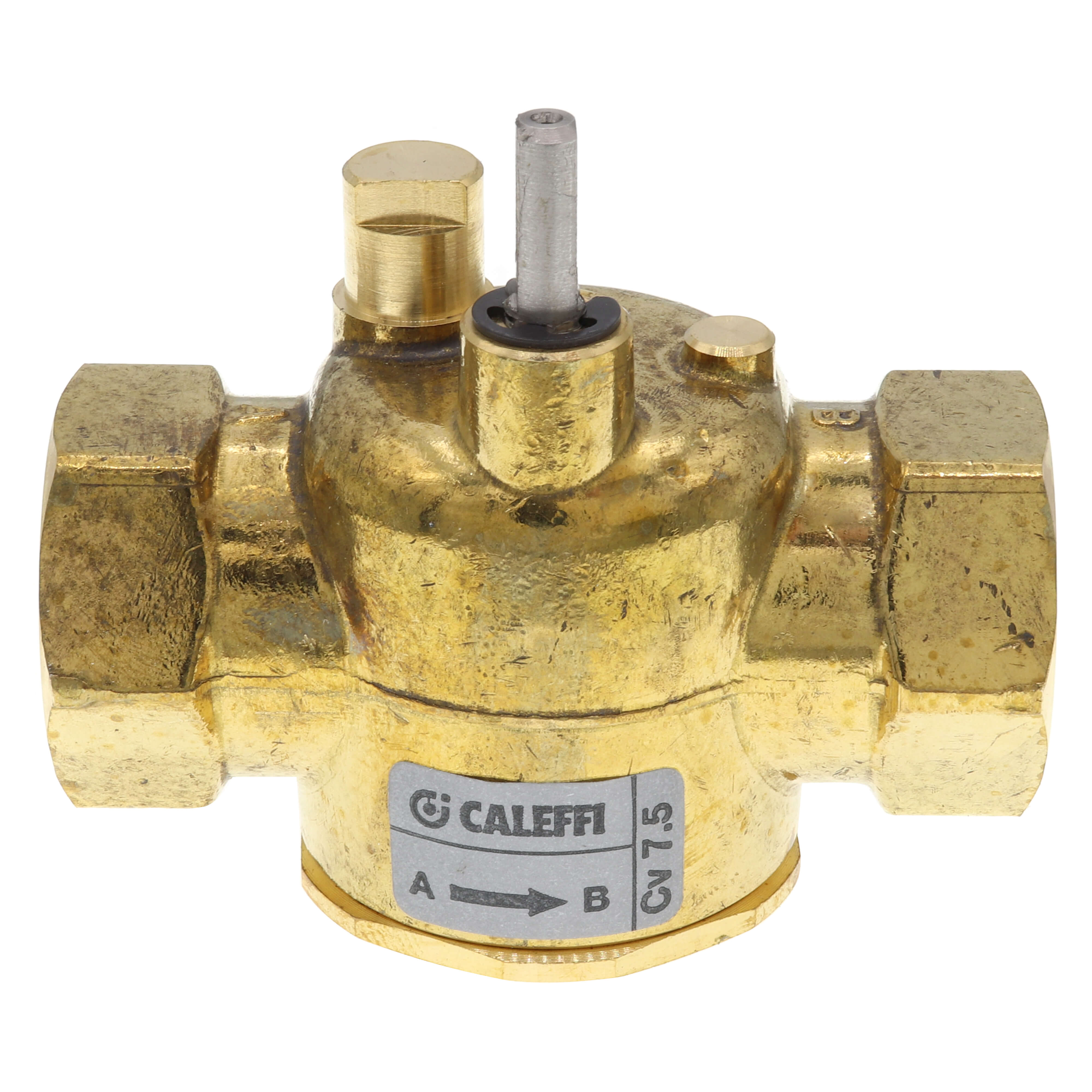

Caleffi Z200517 2-way valve 3/4 inches NPT 7.5 Cv 20 psi

Product Description

The Caleffi Z200517 is a 2-way valve designed for fluid control applications. It features a 3/4" NPT connection, a flow coefficient (Cv) of 7.5, and is rated for a maximum pressure of 20 psi. This threaded valve body is suitable for use in HVAC systems and Building Automation Systems (BAS), handling hot and chilled water, and up to 50% glycol. It offers a straight-through flow pattern and can operate with media temperatures from 32° to 240°F.

• 2-way valve with 3/4" NPT threaded connection
• Flow coefficient (Cv) of 7.5 for efficient fluid control
• Rated for 20 psi pressure and media temperatures up to 240°F

Product Highlights

This valve body is designed for straightforward installation and is compatible with various fluid control systems.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: Z200517
• Country of Origin: Italy

Technical Specifications

• Type: 2-way
• Connection Type: 3/4" NPT
• Flow Coefficient (Cv): 7.5
• Pressure Rating: 20 psi
• Body Pattern: Straight-Through, 2-Way
• Trim Material: Brass
• Flow Characteristic: Quick Opening
• Leakage Class: ANSI Class III (0.1%)
• Maximum System Pressure: 300 psig (2067 kPa)
• Materials of Construction: Forged brass body, stainless steel stem, brass seat, EPDM paddle, aluminum actuator base plate, polycarbonate actuator housing
• Media Compatibility: Hot and chilled water, up to 50% glycol; 15 psig (103 kPa) maximum steam (2-way valves only)
• Media Temperature Range: 32° to 240°F (0° to 115°C)
• Supply Voltage: 24 VAC @ 7 VA models, 120 VAC models (208, 240, 277 VAC models available special order)
• Supply VA: 7VA
• Conduit Connection: 7/8" (2.2 cm) knockout for 1/2" conduit
• Wiring: 24 VAC actuators: 18" (45.7 cm) leads; 120 VAC actuators: 6" (15.2 cm) leads
• Auxiliary Switch: Model dependant; switch closes when actuator opens, operates with manual override
• Contact Rating: 24 VAC actuators: 0.4A @ 24 VAC; 120 VAC actuators: 5.0A @ 120-277 VAC
• Actuator Compatibility: 2-way valves: N.O. or N.C.; actuator 3-way valves: N.C. actuator only
• Drive Time: 10 to 60 seconds
• Spring Return Time: 6 seconds
• Manual Override: Included on N.C. actuators only
• Operating Temperature: 24 VAC, 120 VAC 32° to 104°F (0° to 40°C); 208, 230, 277 VAC: 32° to 170°F (0° to 77°C)
• Humidity: 95% Non-Condensing
• Approvals: UL File #E239721, CE, plenum rating
• Application: For Motorized Zone Valves
