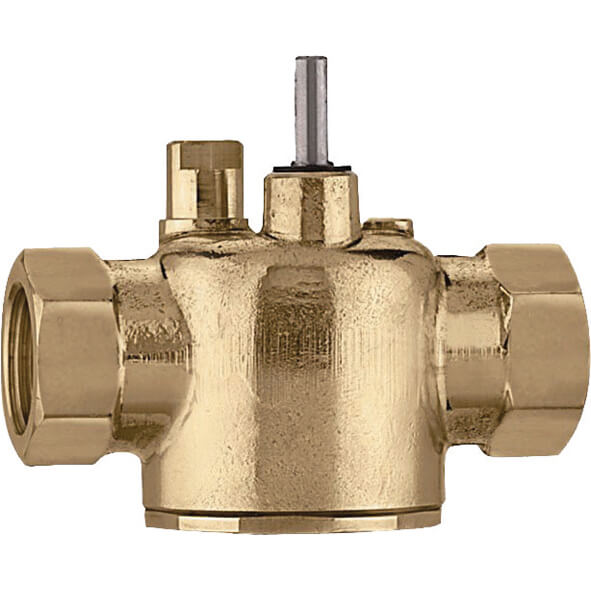

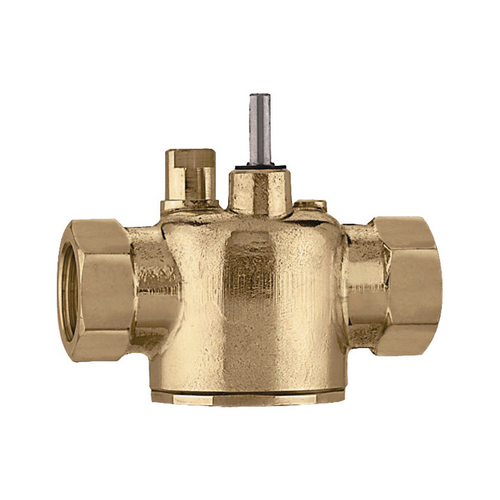

Caleffi Z200512 Z-One 3/4 inch NPT 2-Way Straight Zone Valve Body 50 psi (2.5 Cv) F69294

Product Description

The CALEFFI Z200512 is a Z-One 2-Way Straight NPT Valve Body. It automatically shuts off or redirects hot and chilled water in hydronic heating and air conditioning systems. Designed for high temperature and high close-off performance, this valve body features a 3/4 inch NPT connection and a flow capacity (Cv) of 2.5. It is suitable for installation within baseboards or directly in fan coil units, offering reliable flow control.

• Automatically shuts off or redirects hot and chilled water in hydronic, open, closed, and low-pressure steam systems.
• Features a compact size and 3/4 inch NPT threaded connections for easy installation.
• Provides high temperature and high close-off performance with durable forged brass construction.

Product Highlights

This 2-way straight valve body offers reliable on/off control for hydronic systems, featuring high close-off performance and durable brass construction.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: Z200512

Technical Specifications

• Nominal Size: 3/4 inch
• Replacement MPN: F69294
• Body Pattern: 2-Way Straight-Through
• Connection Type: NPT Threaded
• Max Close-Off Pressure: 50 psi
• Flow Capacity (Cv): 2.5
• Differential Pressure: 50 psi
• Connection End Style: FNPT
• Body Material: Forged Brass
• Max Operating Pressure: 300 psi
• Series: Z Series
• Valve Type: 2-Way Straight
• Medium Temperature Range: 32 to 240 °F
• Flow Rate: 5.0 GPM @ 4 psi
• Actuator Type: Valve Only
