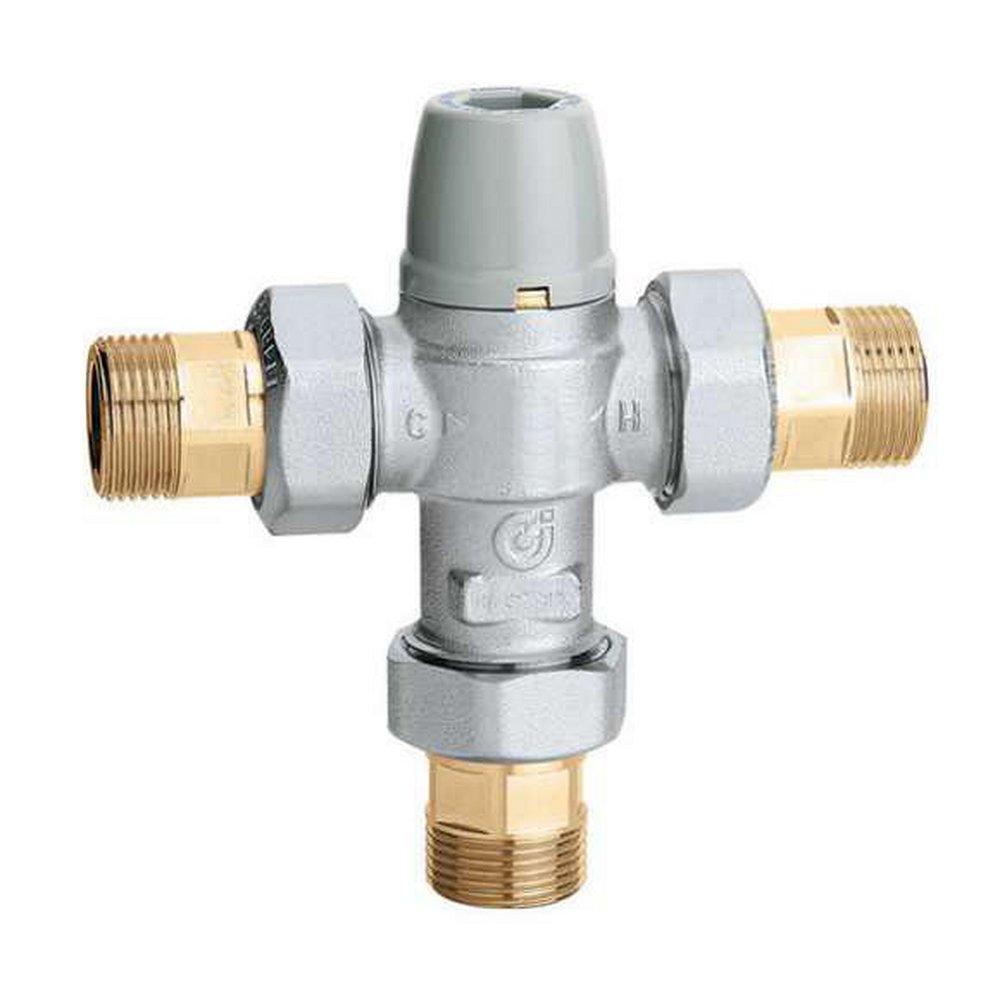

Caleffi North America 521352A 5213 Series 3/4 in. 3-Way MNPT Anti Scald Mix Valve

Product Description

The Caleffi North America 521352A is a 3/4 inch 3-way MNPT anti-scald mix valve. This valve is designed to provide precise temperature control for safe water usage. It helps prevent scalding by regulating the hot and cold water mixture according to set temperatures.

• Adjustable temperature range from eighty-five to one hundred twenty degrees Fahrenheit.
• Constructed from low-lead brass for safety.
• Meets ASSE 1070 and CSA B125.3 standards for single and multiple function applications.

Product Highlights

This valve is ideal for point-of-use installations where hot water safety is a concern. It allows for easy temperature adjustment and locking to prevent unauthorized changes.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 521352A

Technical Specifications

• Connection Type: MNPT
• Size: 3/4 inch
• Type: 3-Way
• Max Working Pressure: 150 psi
• Max Inlet Temperature: 185 degrees Fahrenheit
• Min Flow for Optimum Performance: 0.5 gpm
• Temperature Control: ±3 degrees Fahrenheit
• Lead Free: Yes
