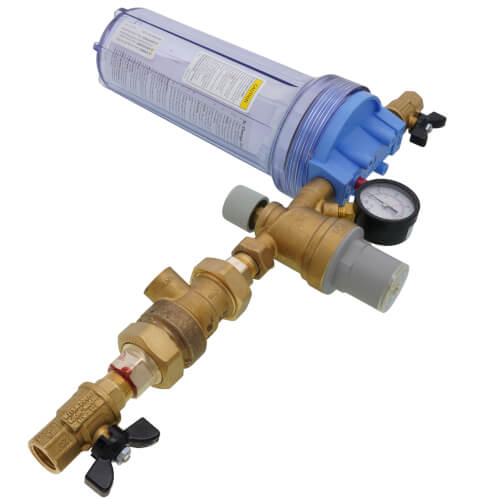

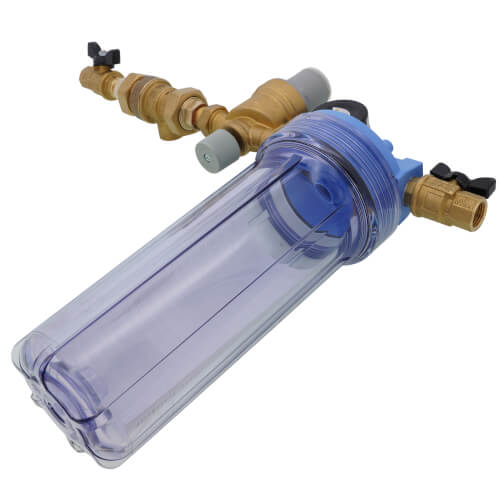

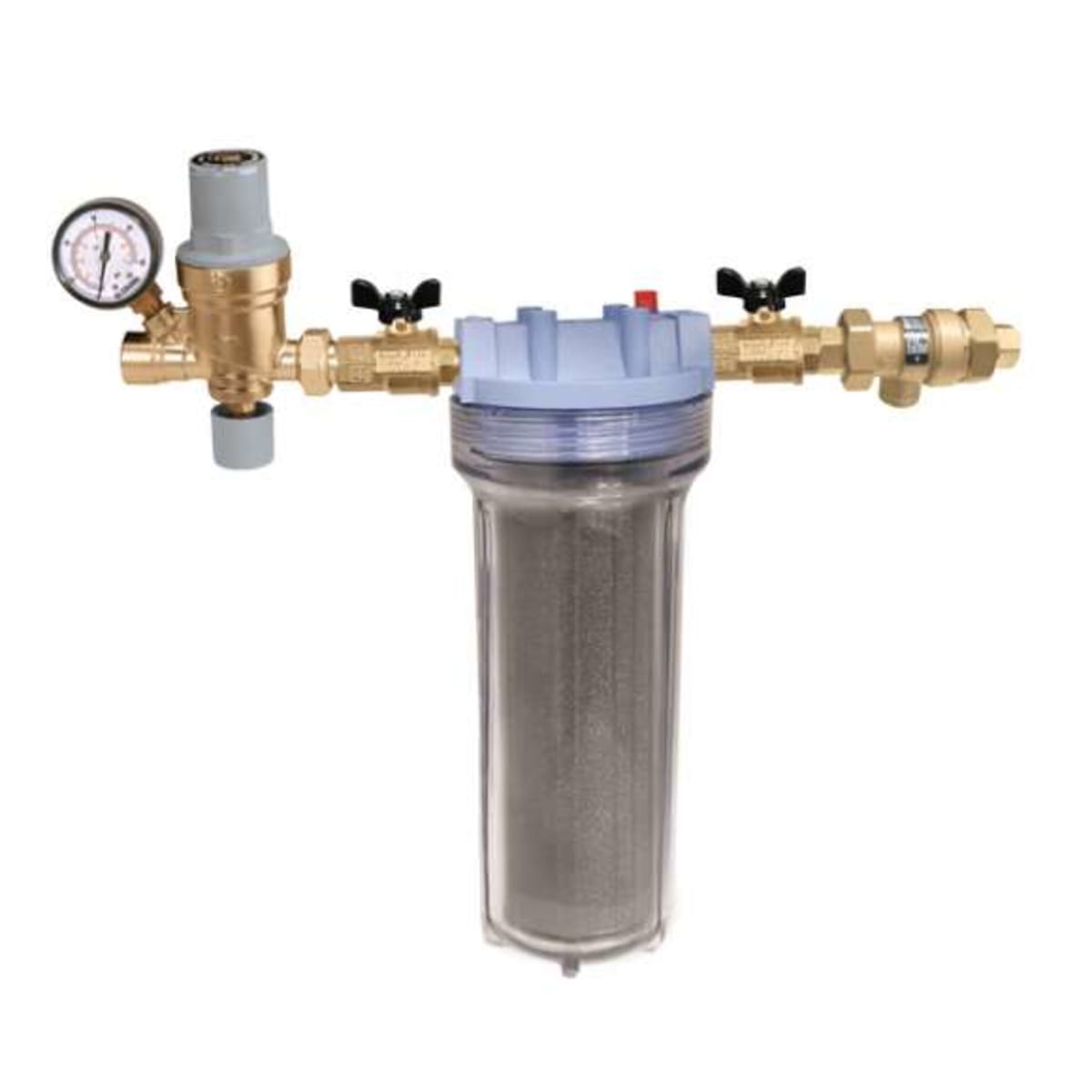

Caleffi NA573022 Autofill Combo 1/2 NPT w/Filter & Gauge

Product Description

The Caleffi Autofill Combo with MPN NA573022 is designed for hydronic heating and cooling systems. This unit features a backflow preventer, isolation valves, and a filter housing with a replaceable resin cartridge. It includes an AutoFill pre-adjustable fill valve and is suitable for installation on water inlet piping.

• Maintains stable pressure in the system.
• Protects drinking water systems from contamination.
• Demineralizes water to prevent scale buildup.

Product Highlights

This unit simplifies management of hydronic systems by automatically filling them with water as needed while safeguarding against back-siphoning.

Product Information

Standard Information

• Brand: Caleffi North America
• Model: NA573022

Technical Specifications

• Size: 1/2 NPT
• Connection Type: MIP
• Max Inlet Pressure: 125 psi
• Max Working Temperature: 100°F
• Max Flow Rate: 1 gpm
• TDS After Treatment: < 30 ppm
• Dimensions: Height 15-1/4 inches, Diameter 4-1/2 inches
