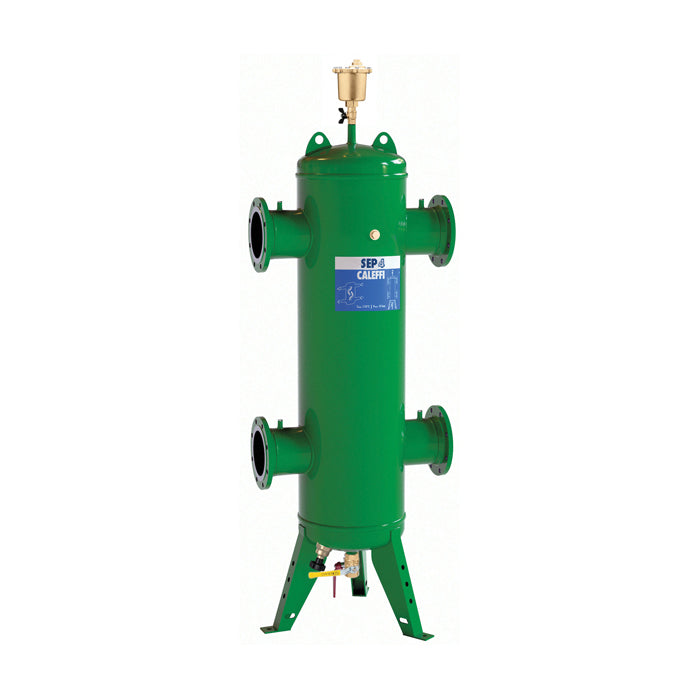

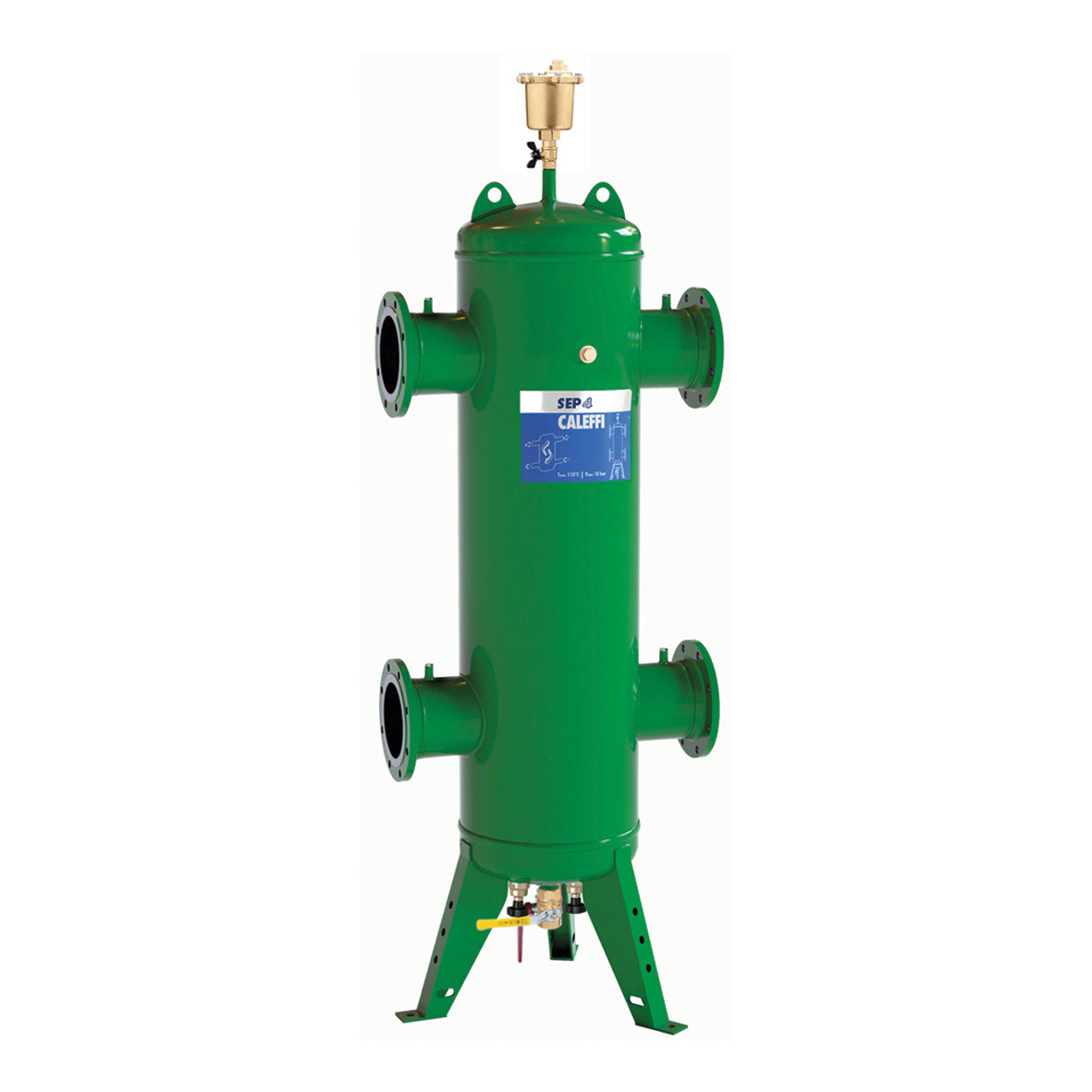

Caleffi NA549300AM SEP4 4-in-1 Magnetic Hydraulic Separator 12 in

Product Description

The CALEFFI NA549300AM SEP4 4-in-1 Magnetic Hydraulic Separator integrates hydraulic, air, dirt, and ferrous impurity separation for hydronic systems. This steel unit, with a 12-inch flange connection, prevents pump conflict by hydraulically decoupling circuits. It efficiently removes micro-bubbles and non-ferrous debris down to 5 microns, while powerful neodymium magnets capture ferrous impurities. Designed for a working pressure of 150 psi, it streamlines system installation and maintenance.

• Air, dirt, hydraulic, and magnetic separation capabilities.
• Features rigid closed-cell expanded polyurethane foam insulation.
• Equipped with neodymium magnets for efficient ferrous sludge capture.

Product Highlights

Combines hydraulic, air, dirt, and magnetic separation in one unit, reducing installation complexity and maintenance.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA549300AM

Technical Specifications

• Connection Type: Flange
• Flow Rate: 1850 gpm
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
• Material: Steel
• Maximum Percentage of Glycol: 0.5
• Nominal Size: 12 In
• Series: NA549
• Type: 4-IN-1
• Working Pressure: 150 psi
• Thermowell Tap: 1/2" straight female
• Application: Hydronic Primary/Secondary — Full System Protection
• Vessel Temperature Range: 32–270°F
• Particle Separation Capacity: to 5 µm (0.2 mil)
• Flange Standard: ANSI 150
• Thermometer Pockets: NPT, 1/2" inlet/outlet flanges, 3/4" front center
• ASME U-stamp: Tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors
• CRN Registration: Up to 10" (Consult factory for 12"– 14")
