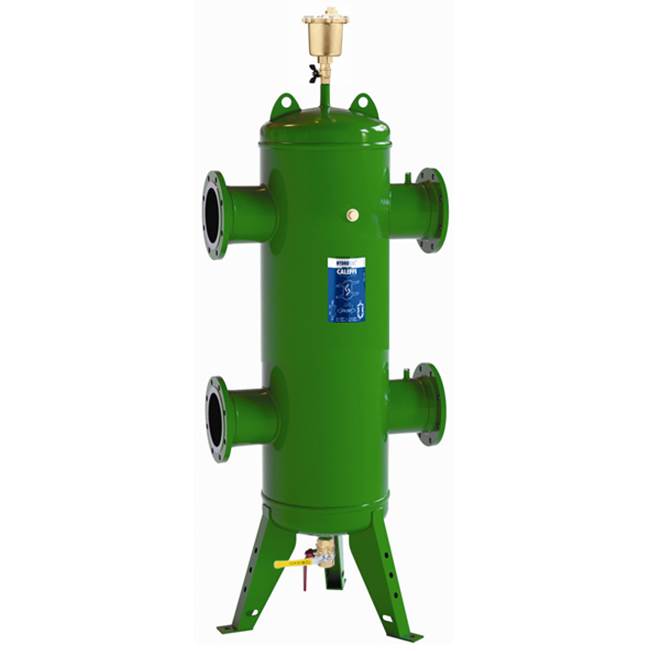

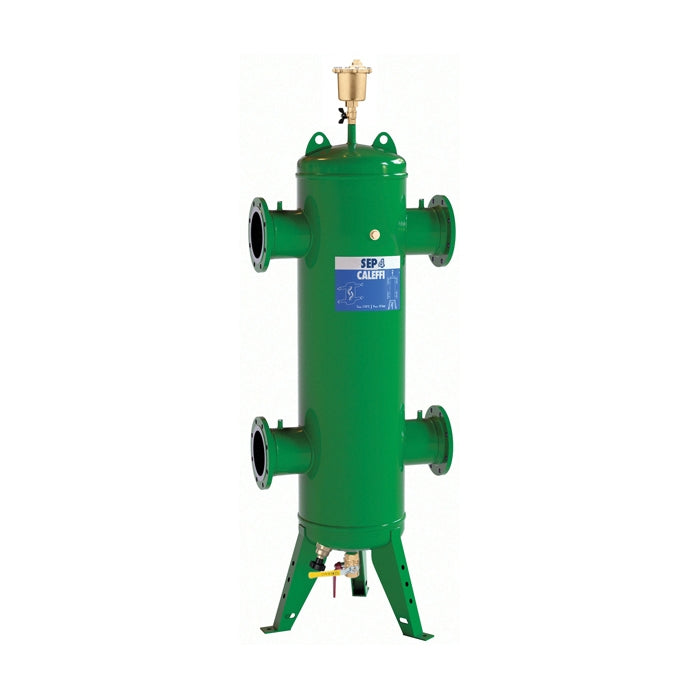

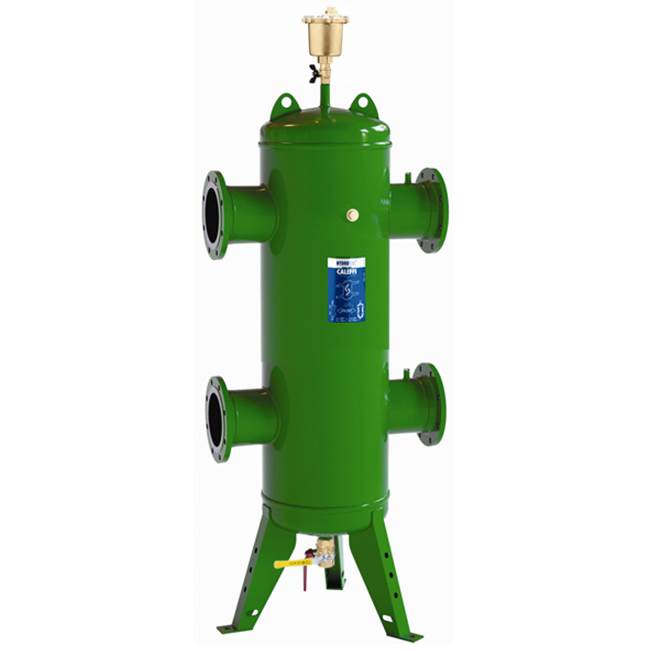

Caleffi NA549250AM sep4 4-in-1 magnetic hydraulic separator 10 in

Product Description

The Caleffi NA549250AM SEP4 4-in-1 combination separator integrates hydraulic, air, dirt, and ferrous impurity separation for hydronic systems. Its unique design prevents pump conflict by hydraulically de-coupling circuits. An internal screen captures micro-bubbles and non-ferrous debris down to 5 micron. Powerful neodymium magnets remove ferrous impurities like iron oxide, offering 2.5 times the performance of standard separators. This steel unit simplifies installation and maintenance, allowing debris removal via a purge valve without system downtime.

• Provides air, dirt, hydraulic, and magnetic separation functions.
• Features rigid closed cell expanded polyurethane foam insulation.
• Includes stainless steel internal coalescing mesh and three neodymium magnet assemblies.

Product Highlights

Combines four essential hydronic system functions: hydraulic, air, dirt, and magnetic separation, with efficient debris removal.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA549250AM
• Country of Origin: US

Technical Specifications

• Type: 4-In-1
• Series: NA549
• Material: Steel
• Flow Rate: 1330 gpm
• Nominal Size: 10 in
• Connection Type: ANSI 150 lb Raised Face Flange
• Working Pressure: 150 psi
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
• Maximum Percentage of Glycol: 0.5
• Included Components: 501502A Automatic Air Vent, NA39589 Air Vent Shut-Off Valve, NA59600 Drain Valve
• Particle Separation Capacity: Up to 5 µm
• Certifications: ASME-U Stamp Tagged and Registered
• Temperature Range: 32-270 °F
• Thermometer Pockets: 1/2'' Inlet/Outlet, 3/4'' Front Center
