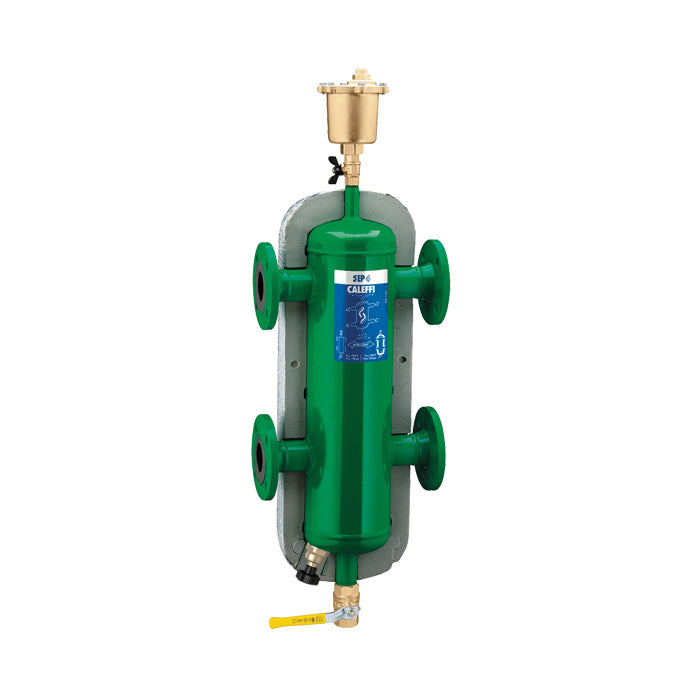

Caleffi NA549150AM sep4 4-in-1 air, dirt, hydro & magnet hydraulic separator 6 inch

Product Description

The CALEFFI NA549150AM SEP4 is a 4-in-1 hydraulic separator designed for hydronic systems, combining air, dirt, hydraulic, and magnetic separation functions. This 6-inch flanged unit prevents pump conflict by hydraulically decoupling circuits and efficiently removes micro-bubbles and non-ferrous debris down to 5 microns. It features a stainless steel internal coalescing mesh and a neodymium magnet assembly for ferrous impurity removal. The steel body is rated for a maximum working pressure of 150 psi and a working temperature of 32-270°F without insulation.

• 4-in-1 separation for air, hydraulic, dirt, and magnetic impurities.
• Includes automatic air vent (code 501502A) and drain valves (NA39753, NA39588).
• Features stainless steel internal coalescing mesh and one neodymium magnet assembly.

Product Highlights

Combines air, dirt, hydraulic, and magnetic separation in one unit, reducing installation and maintenance complexity.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA549150AM
• Country of Origin: US

Technical Specifications

• Max Flow Rate: 484 GPM
• Nominal Size: 6 Inch
• Product Type: Hydraulic Separator
• Connection Type: Flanged
• Working Temperature without Insulation: 32-270°F
• Connection: 6'' ANSI 150 flange, ASME & CRN
• Maximum Working Pressure: 150 psi
• Medium Temperature Range: 32-220°F
• Material: Steel
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
• Maximum Percentage of Glycol: 50 %
• Series: NA549
• Type: 4-IN-1
• Finish: Epoxy Resin
• Capacity: 23 gal.
• Includes: 501502A Automatic Air Vent, NA39589 Air Vent Shut-Off Valve, 2''-4'' NA39753 Drain Valve, 5''-6'' NA39588 Drain Valves
• Particle Separation Capacity: Up to 5 um
• Safety List: ASME-U Stamp Tagged and Registered, CRN Registered
• Made in USA: Yes
