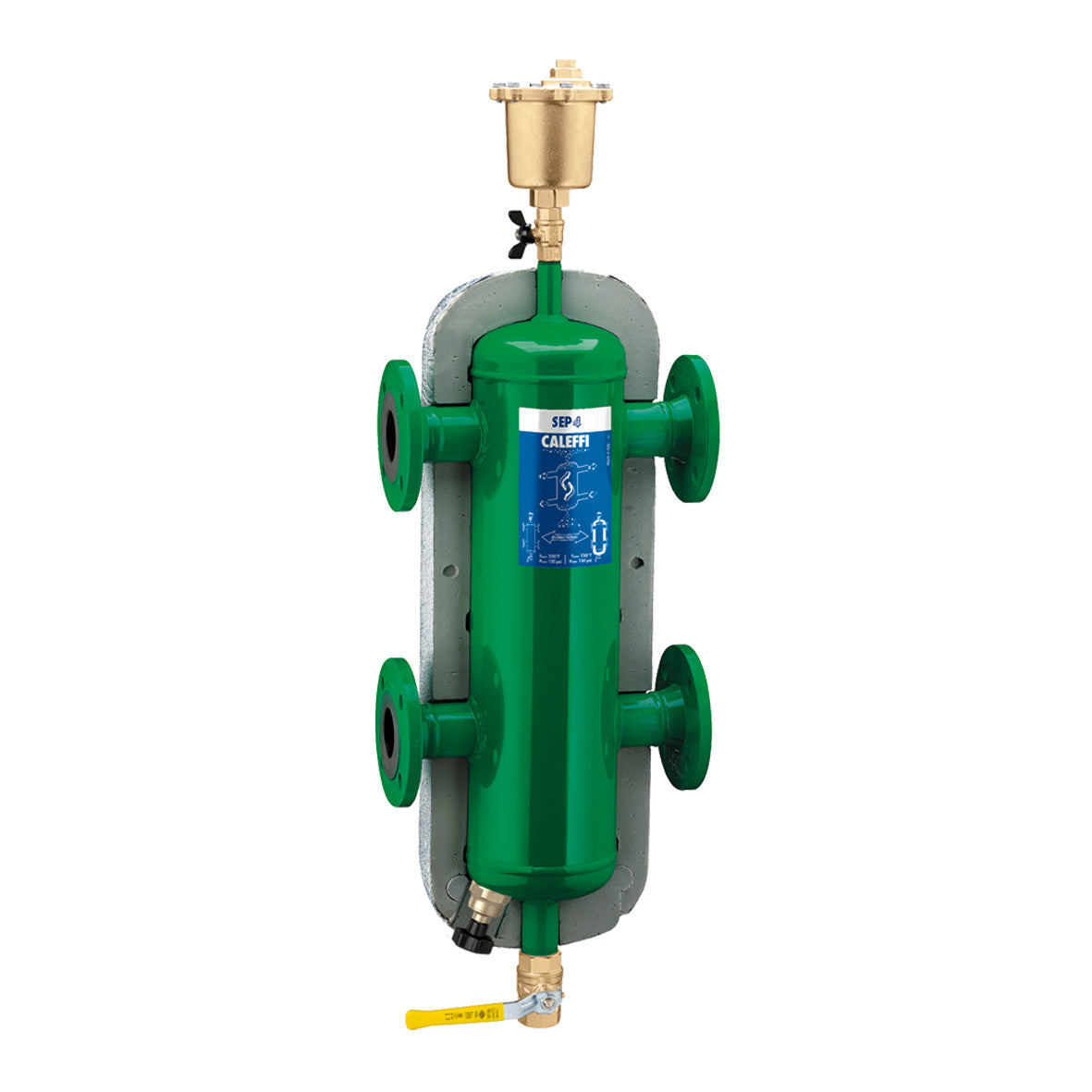

Caleffi NA549120AM SEP4 4-in-1 Magnetic Hydraulic Separator 5 in Nominal 150 psi Working

Product Description

The CALEFFI NA549120AM SEP4 4-in-1 combination separator integrates hydraulic separation, air separation, dirt separation, and ferrous impurity separation for hydronic systems. Its unique design prevents pump conflict by hydraulically decoupling circuits. An internal screen captures micro-bubbles and non-ferrous debris down to 5 microns. A powerful neodymium magnet removes ferrous impurities like iron oxide, enhancing removal performance. This steel unit operates at 150 psi working pressure with a 5 in nominal size.

• Combination air, dirt, hydraulic, and magnetic separator
• Neodymium magnet captures ferrous sludge and impurities
• Features a drain valve, thermowell tap, and mounting bracket for installation

Product Highlights

Integrates four essential hydronic system functions: hydraulic separation, air elimination, dirt separation, and magnetic filtration, saving space and labor.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA549120AM
• Country of Origin: Italy

Technical Specifications

• Connection Type: ANSI 150 lb Raised Face Flange
• Flow Rate: 80 gpm
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
• Material: Steel
• Maximum Percentage of Glycol: 50 %
• Nominal Size: 5 in
• Series: NA549
• Type: 4-IN-1
• Working Pressure: 150 psi
• Product Line: SEP4
• Functions: Hydraulic separation, air elimination, dirt separation, magnetic filtration
• Thermowell Tap: ½" straight female
• Application: Hydronic Primary/Secondary Full System Protection
