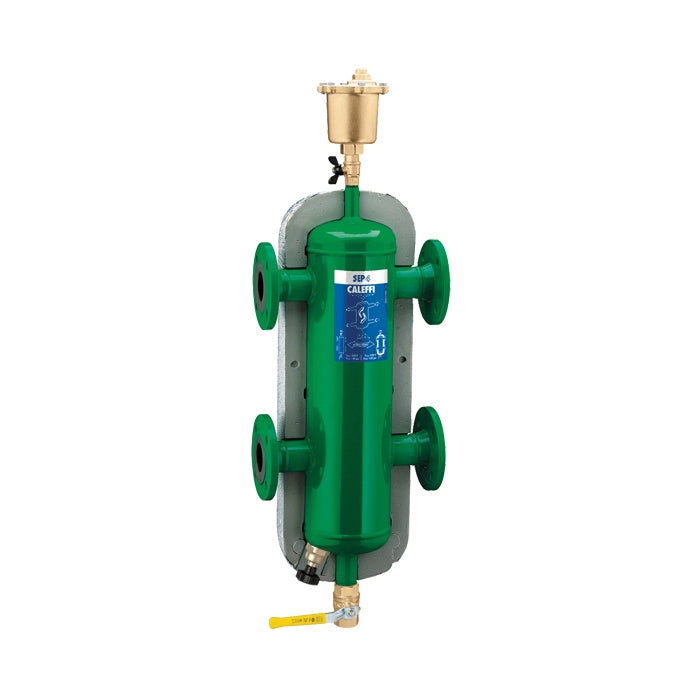

Caleffi NA549102AM SEP4 4-in-1 magnetic hydraulic separator 4 in nominal

Product Description

The Caleffi NA549102AM SEP4 4-in-1 Magnetic Hydraulic Separator integrates hydraulic, air, dirt, and ferrous impurity separation for hydronic systems. This steel unit, with a 4 in nominal size and ANSI 150 lb Raised Face Flange connection, prevents pump conflict and removes micro-bubbles and non-ferrous debris down to 5 microns. Its powerful rare-earth neodymium magnets capture ferrous impurities, enhancing system efficiency and reducing maintenance.

• Air, dirt, hydraulic, and magnetic separation capabilities
• Captures non-ferrous debris particles down to 5 micron size
• Removes ferrous impurities using rare-earth neodymium magnets

Product Highlights

Combines four essential hydronic system functions into one unit, simplifying installation and maintenance.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA549102AM

Technical Specifications

• Connection Type: ANSI 150 lb Raised Face Flange
• Flow Rate: 247 gpm
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
• Material: Steel
• Maximum Glycol Percentage: 0.5
• Nominal Size: 4 in
• Series: 549
• Type: 4-IN-1
• Working Pressure: 150 psi
