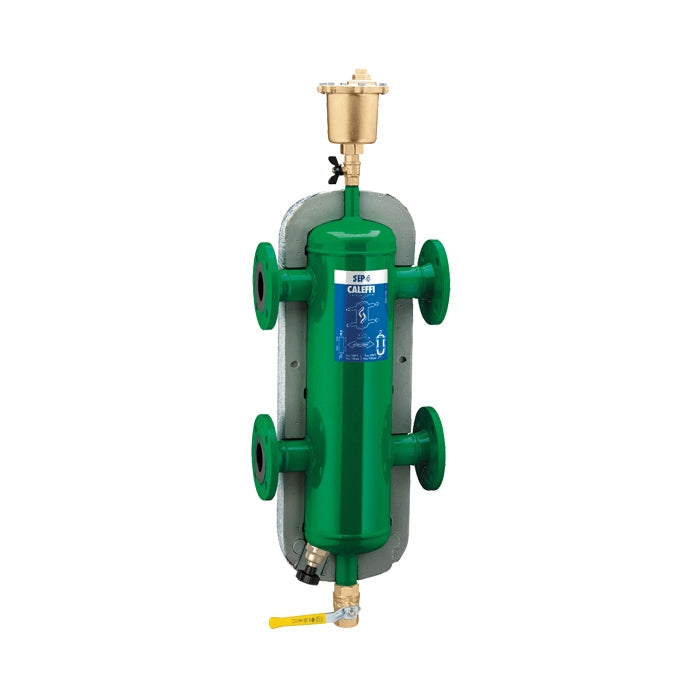

Caleffi NA549062AM Sep4 4-in-1 Magnetic Hydraulic Separator 2-1/2 in ANSI 150 lb Raised Face Flange

Product Description

The Caleffi NA549062AM SEP4 4-in-1 combination separator integrates hydraulic, air, dirt, and ferrous impurity separation for hydronic systems. This steel unit, with a 2-1/2 inch ANSI 150 lb Raised Face Flange connection, prevents pump conflict by hydraulically decoupling circuits. It captures micro-bubbles and non-ferrous debris down to 5 microns, while powerful neodymium magnets remove ferrous impurities. Designed for 150 psi working pressure and 80 gpm flow, it simplifies installation and maintenance.

• Integrates hydraulic, air, dirt, and magnetic separation functions.
• Features a 2-1/2 inch ANSI 150 lb Raised Face Flange connection for secure installation.
• Removes ferrous impurities with powerful neodymium magnets and non-ferrous debris down to 5 microns.

Product Highlights

Combines four essential hydronic system functions into one unit, reducing installation and maintenance.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA549062AM

Technical Specifications

• Type: 4-IN-1
• Series: 549
• Material: Steel
• Flow Rate: 80 gpm
• Nominal Size: 2-1/2 in
• Connection Type: ANSI 150 lb Raised Face Flange
• Working Pressure: 150 psi
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
