Caleffi NA549052AM SEP4 flanged 4-in-1 hydraulic separator (ASME & CRN) 2 inch

Product Description

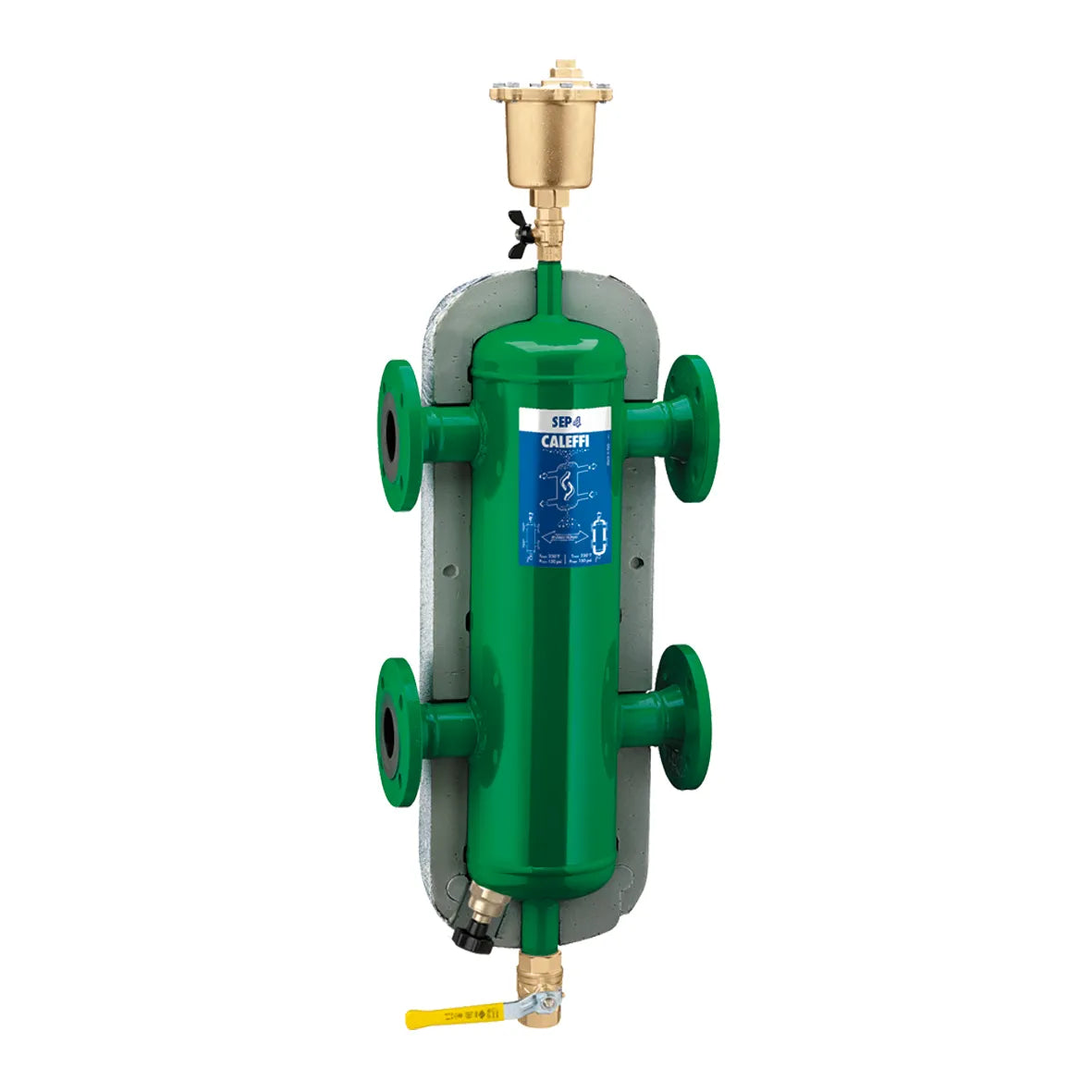

The CALEFFI NA549052AM SEP4™ is a flanged 4-in-1 hydraulic separator designed for ASME & CRN applications, providing air, hydraulic, dirt, and magnetic separation for hydronic systems. This steel unit features a 2-inch ANSI 150 flange connection, a maximum operating pressure of 150 psi, and operates within a medium temperature range of 32 – 220 °F. It is ASME U-stamp tagged and CRN registered.

• Provides comprehensive air, hydraulic, dirt, and magnetic separation.
• Features a 2-inch ANSI 150 flange connection and steel construction.
• Includes an air vent isolation valve, drain valve, and insulation jacket.

Product Highlights

This 4-in-1 hydraulic separator simplifies hydronic system protection by combining four essential functions into a single, ASME and CRN certified unit.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA549052AM
• Country of Origin: Italy

Technical Specifications

• Part Number: NA549052AM
• Connection: 2" ANSI 150 flange
• Material: steel
• Medium Temperature Range: 32 – 220 °F
• Maximum Operating Pressure: 150 psi
• Certifications: ASME U-stamp tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered
• Flow Rate: 60 gpm
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
• Maximum Percentage of Glycol: 0.5
• Nominal Size: 2 In
• Series: 549
• Type: 4-in-1 Hydraulic Separator Combination
• Manufacturer: Caleffi
• Product Line: SEP4™
• Functions: Hydraulic separation + air elimination + dirt separation + magnetic filtration
• Thermowell Tap: ½" straight female
• Application: Hydronic Primary/Secondary — Full System Protection
