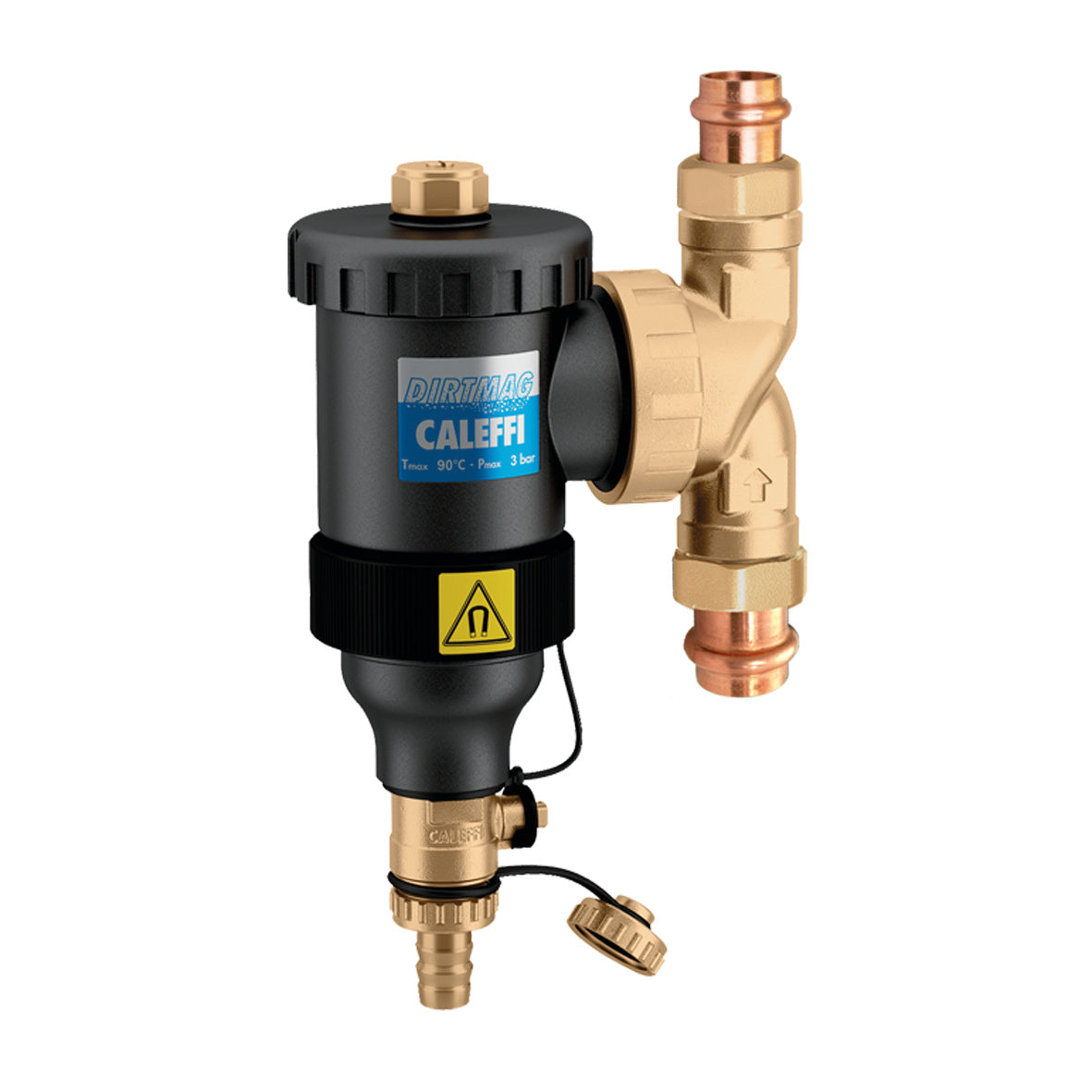

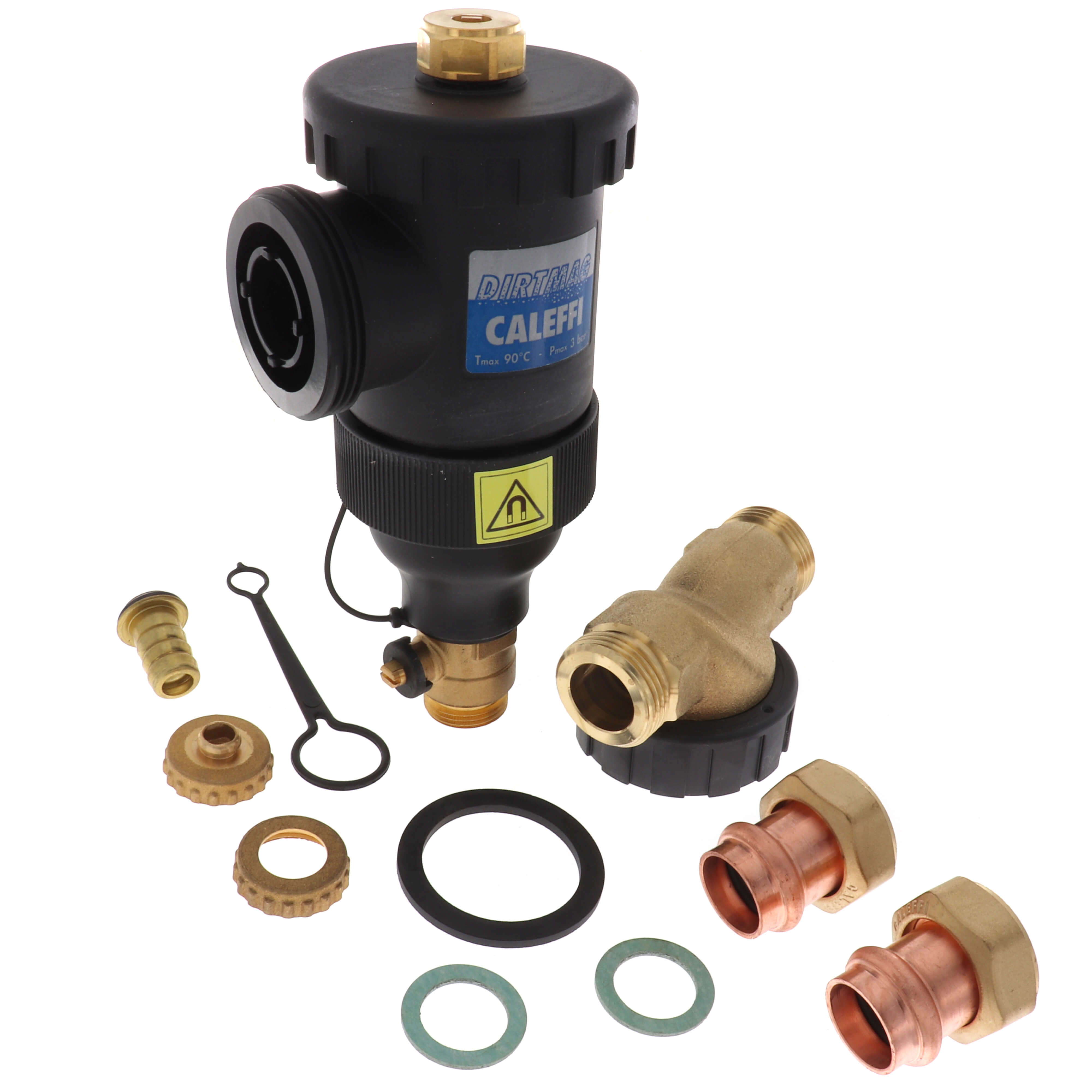

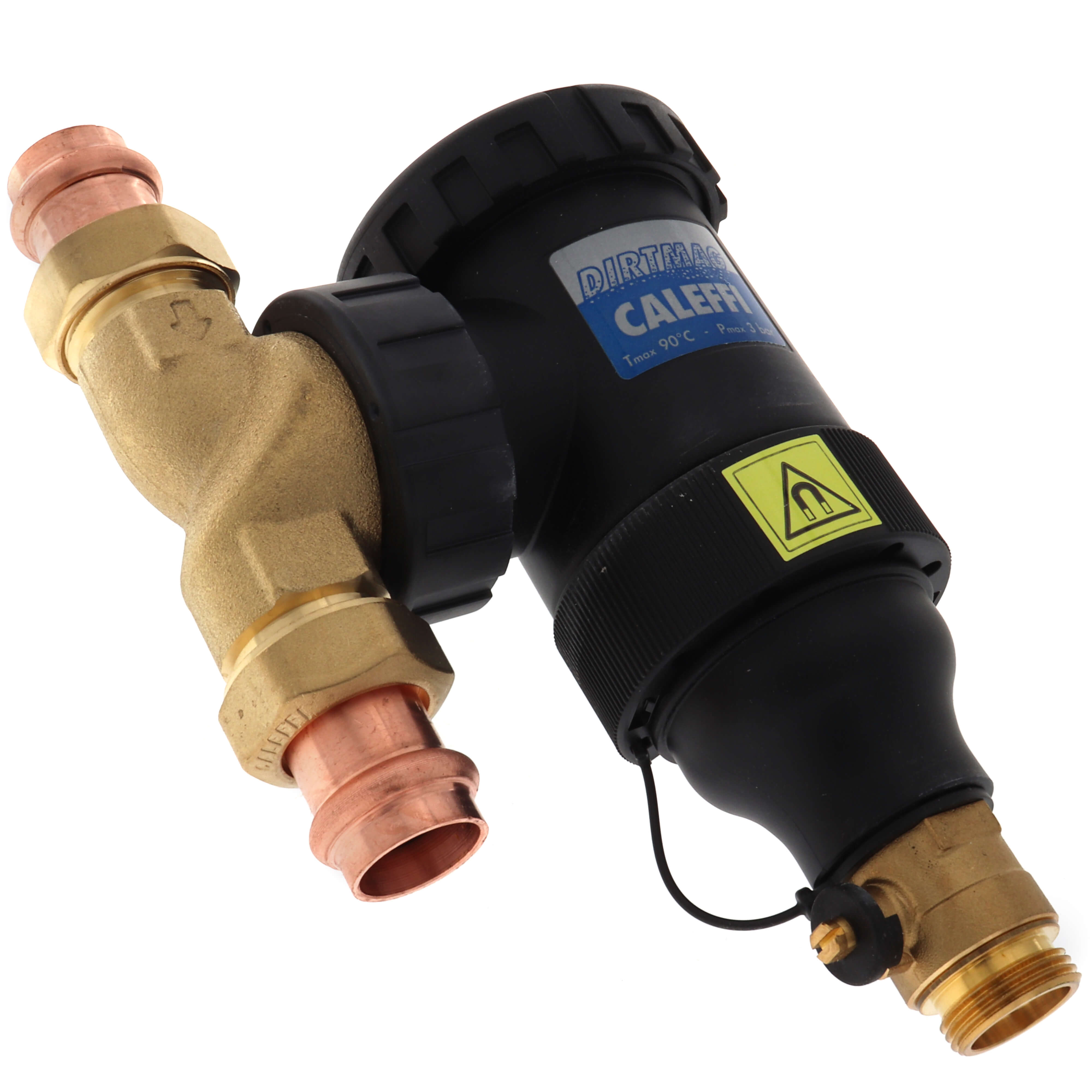

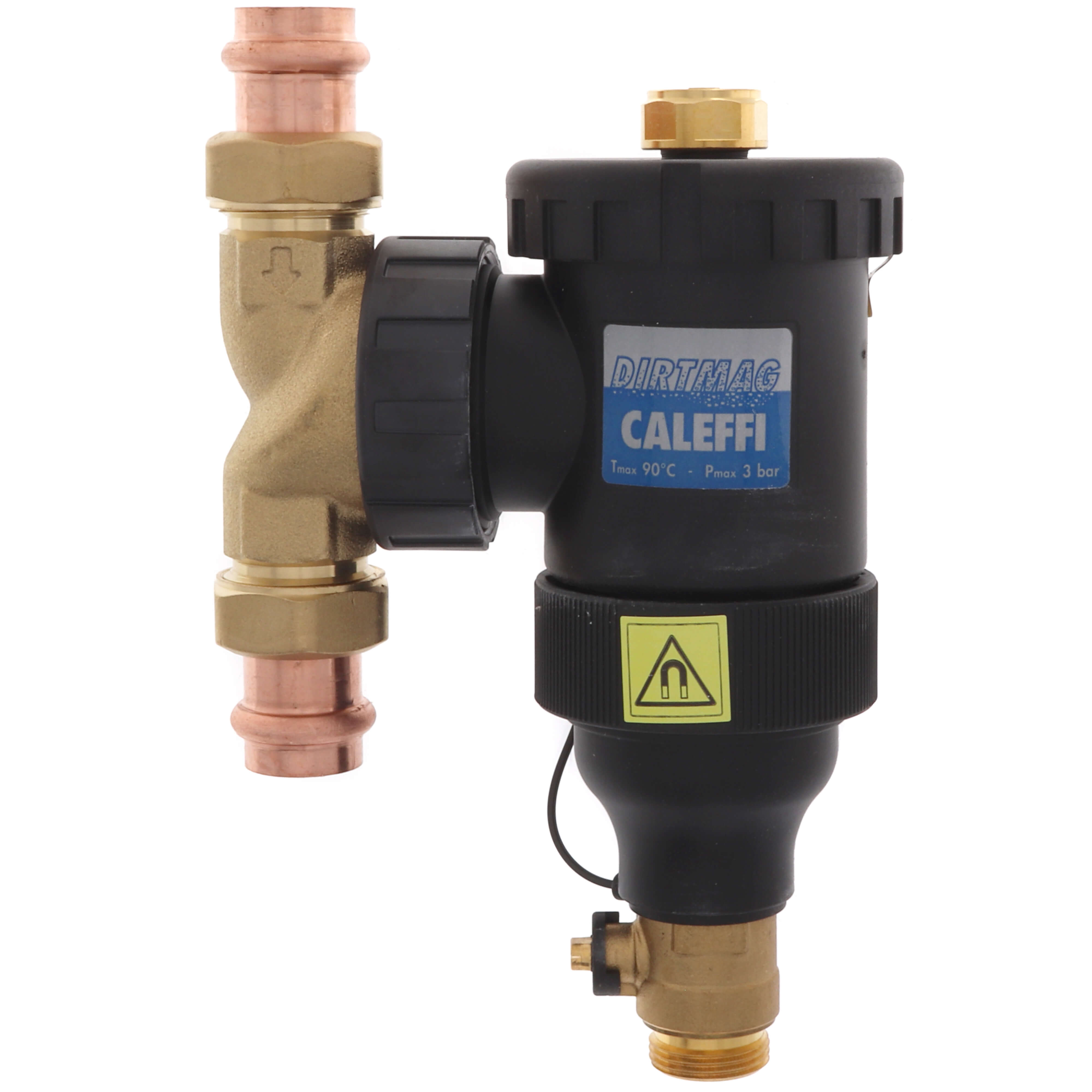

Caleffi NA545365 Dirtmag - Dirt Separator with Magnet 3/4 inches

Product Description

Caleffi NA545365 is a magnetic dirt separator designed for hydronic heating and cooling systems. It features a brass mounting housing and a composite PA66G30 body, capable of separating particles down to 5 um. This device efficiently removes impurities, including 95% of magnetite, to protect system components. It can be rotated for installation in vertical or horizontal pipes, maintaining consistent performance. The separator operates within a working temperature range of 32-195°F and a maximum working pressure of 45 psi.

• Brass mounting housing and composite PA66G30 body for durability.
• Rotatable design allows installation in vertical or horizontal piping.
• High efficiency particle separation to 5 um and 95% magnetite removal.

Product Highlights

Magnetic dirt separator with drain valve, dosing port, and manual air vent for hydronic systems.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA545365

Technical Specifications

• Nominal Size: 3/4 in
• Type: Magnetic Dirt Separator
• Material: Brass, Steel
• Operating Temperature: 32 to 195°F
• Product Type: Dirt Eliminator
• Connection Type: Press x Press
• Connection Method: Press
• Max Working Pressure: 45 psi
• Maximum Glycol Percentage: 0.3
• Particle Separation Capacity: 5 um
• Series: NA5453
• Suitable Media: Water/Glycol Solution
• Product Line: DIRTMAG
• Filtration Method: Mesh + external neodymium magnet
• Application: Hydronic Heating & Cooling - Primary Return Line
• Union Type: Union ends
