Caleffi NA545356 DIRTMAG Composite Dirt Separator w/ Magnet 1 Union NPT w/ Isolation Valves

Product Description

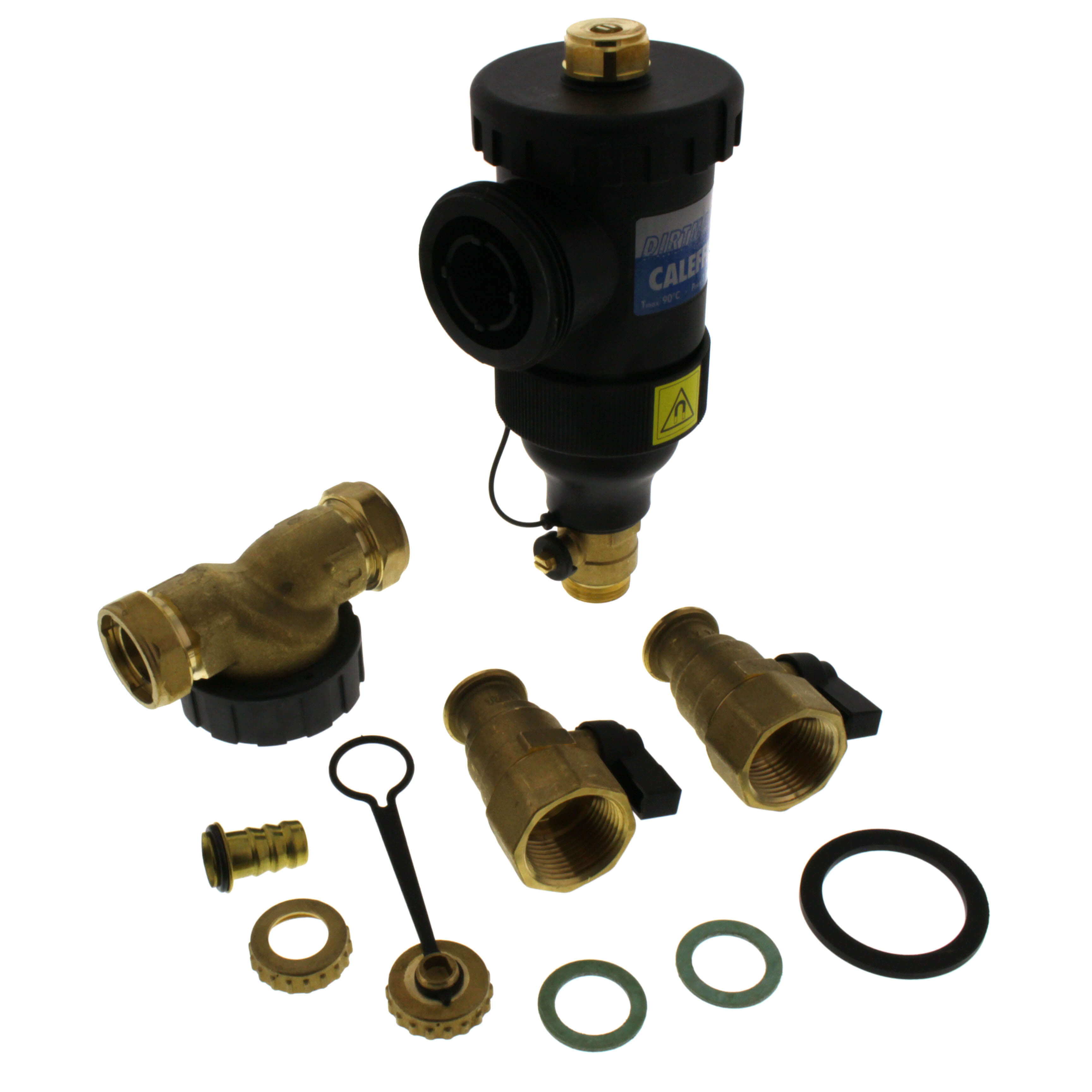

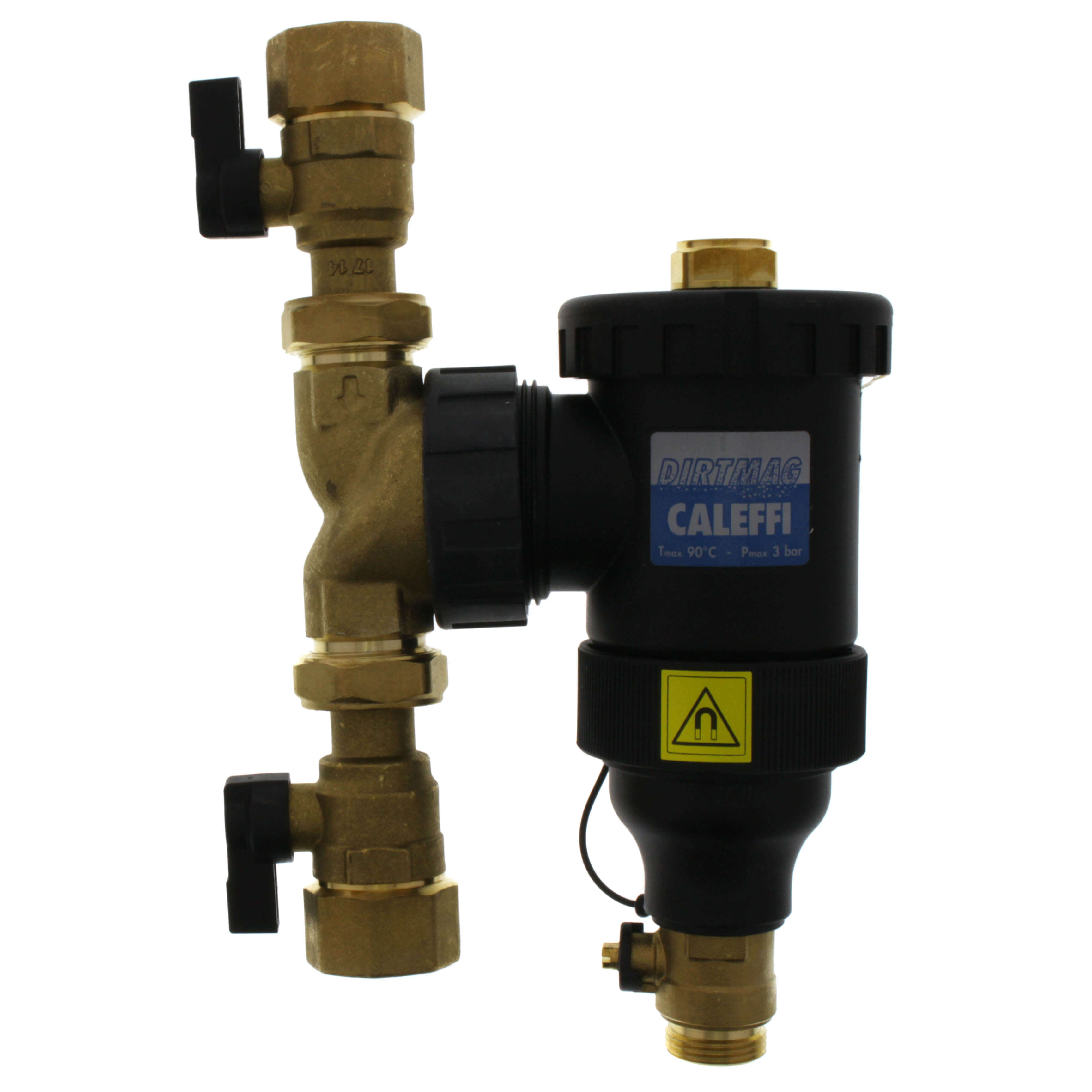

The Caleffi NA545356 DIRTMAG Composite Dirt Separator is designed to remove both ferrous and non-ferrous impurities in hydronic heating and cooling systems. This separator incorporates a powerful removable external magnetic ring that enhances its dirt removal capabilities significantly.

• Removes dirt particles down to five microns.
• Includes isolation valves for easy maintenance.
• Quick flushing of collected dirt is possible while the system operates.

Product Highlights

This dirt separator effectively separates contaminants, including magnetite, thus ensuring optimal system performance.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: NA545356
• UPC: 8016615531794
• Part #: CALE-NA545356

Technical Specifications

• Size: 1 inch
• Connection Type: MIP
• Weight: 4.45 pounds
• Max Pressure: 45 PSI
• Max Temperature: 195°F
• Shipping Dimensions: 9.1 inches (Depth) x 8 inches (Width) x 4.19 inches (Height)
