Caleffi 694045 Temperature Pocket Well for 1 to 1-1/2 inches Hydro Separator

Product Description

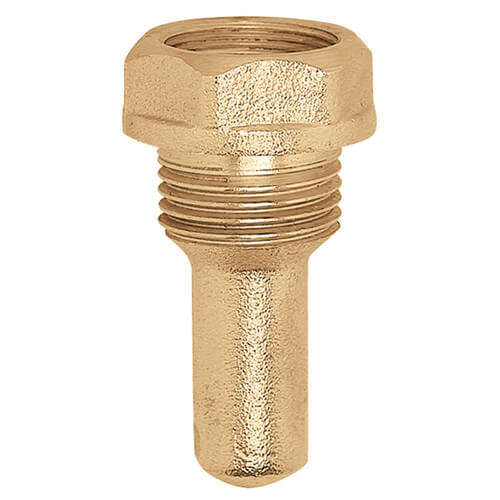

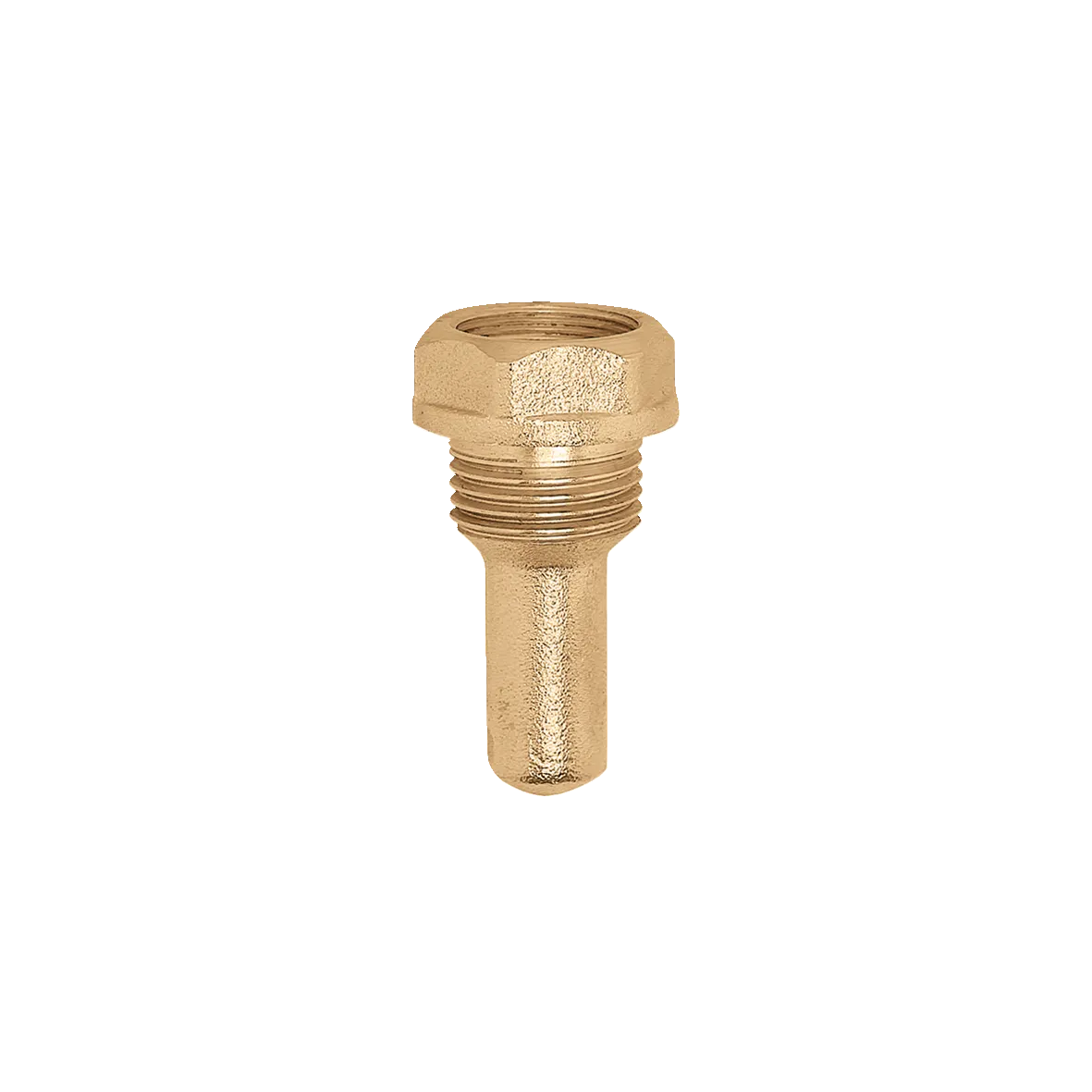

The Caleffi 694045 temperature pocket well is designed for use with hydro separators measuring one inch, one and one-quarter inches, and one and one-half inches. It features a pocket length of one and three-quarters inches and a straight thread measuring one-half inch. This product is compatible with the 548 and 5495 series of magnetic hydraulic separators.

• Temperature pocket well fits 1 inch, 1-1/4 inches, and 1-1/2 inches Hydro Separator
• 1-3/4 inch pocket length
• 1/2 inch straight thread connection

Product Highlights

This pocket well aids in the accurate measurement of temperature within your hydraulic systems.

Product Information

Standard Information

• Product Type: Replacement Part
• Product Category: Boiler Accessories

Technical Specifications

• Connection Type: Straight Thread
• Connection Size: 1/2 Inch
• Part Number: 694045
• Pocket Connection: G 1/2 inch A (ISO 228-1) M
• Length of Pocket: 45 mm
• Diameter: 14 mm
• Series: 694
• Specifications: 1-3/4 inch length, 1/2 inch straight NPT
• Suitable For Use With: 548/5495 Series 1, 1-1/4 inches, and 1-1/2 inches Magnetic Hydraulic Separator
