Caleffi 644266A 2-Way 1 Press 24V 13 Cv Motorized Ball Valve

Product Description

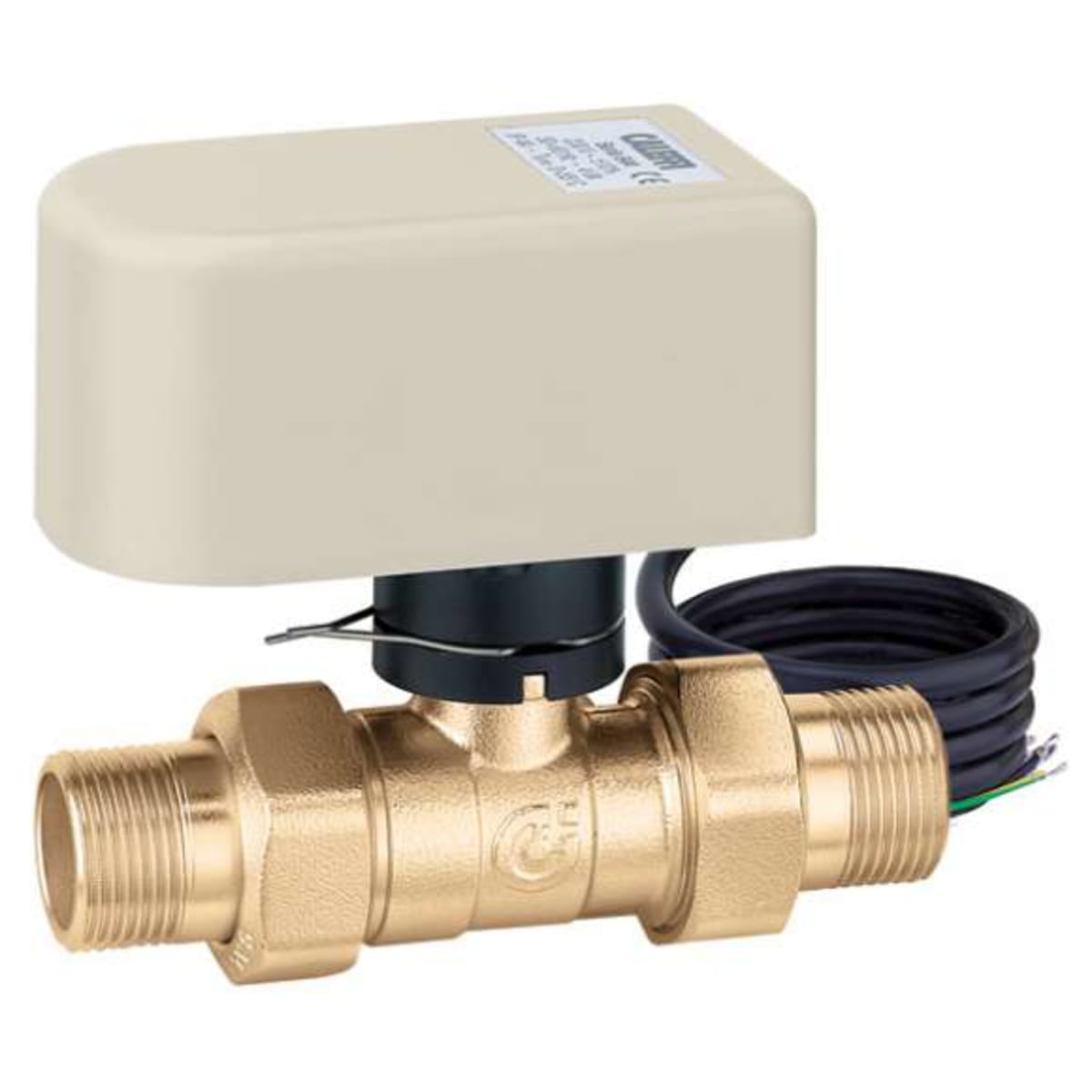

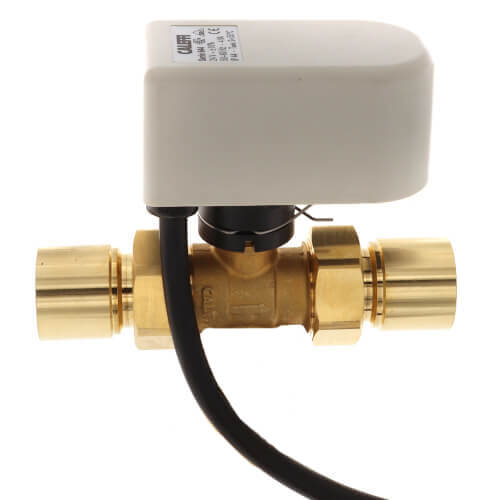

The Caleffi 644266A is a two-way motorized ball valve designed for use in heating systems. This valve operates with a one-inch press connection and is powered by twenty-four volts. It features a high flow capacity of thirteen Cv, making it efficient for various hydronic heating applications.

• High performance in hot and chilled water systems.
• Zero leakage across the valve.
• Operates at high differential pressures.

Product Highlights

This valve is ideal for automatically shutting off the flow, redirecting, or modulating water in heating systems. Its compact design allows for easy installation in baseboards or fan coil units.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-644266A

Technical Specifications

• Size: 1 inch
• Type: 2-Way
• Connection Type: Press
• Max Temperature: 230 degrees F
• Max Pressure: 150 PSI
• Shipping Dimensions: 6 inches depth, 5.5 inches width, 3 inches height
• Weight: 2.4 lbs
• Flow Capacity: 13 Cv
