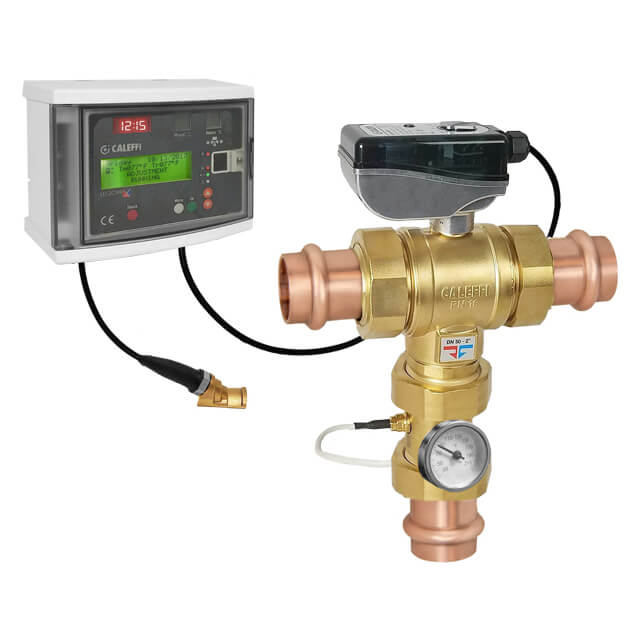

Caleffi 600066A LegioMix Electronic Mixing Valve 1 Press Union 21Cv

Product Description

The Caleffi 600066A LegioMix Electronic Mixing Valve is designed for use in centralized systems that produce and distribute domestic hot water. This valve ensures consistent water temperature, adapting to changes in hot and cold water supply.

• Adjustment temperature range: 70 degrees - 185 degrees Fahrenheit
• Automatic self-cleaning feature
• Digital interface with monitoring options

Product Highlights

This mixing valve employs advanced technology for precise temperature control across varying flow rates. It is built for efficiency with minimal pressure drop and enhanced performance.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-600066A

Technical Specifications

• Size: 1 inch
• Type: Digital
• Connection Type: Press
• Flow Capacity (Cv): 21
• Max Operating Pressure: 150 psi
• Max Body Pressure Rating (Static): 230 psi
• Max Inlet Temperature: 212 degrees Fahrenheit
• Disinfection Temperature Range: 100 degrees - 185 degrees Fahrenheit
