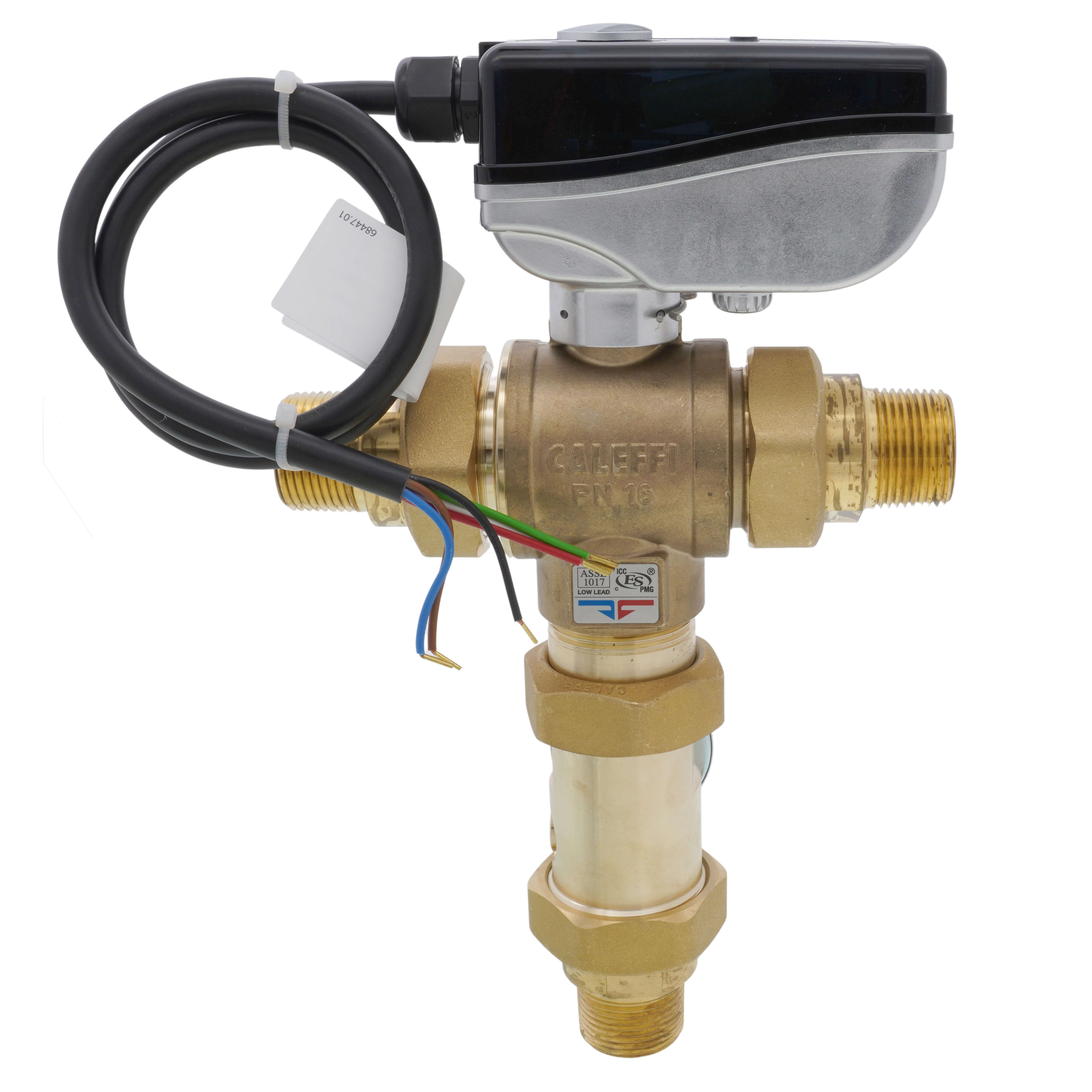

Caleffi 600064A legiomix electronic mixing valve 1 inches male npt 24 vac-50/60 hz-6 va

Product Description

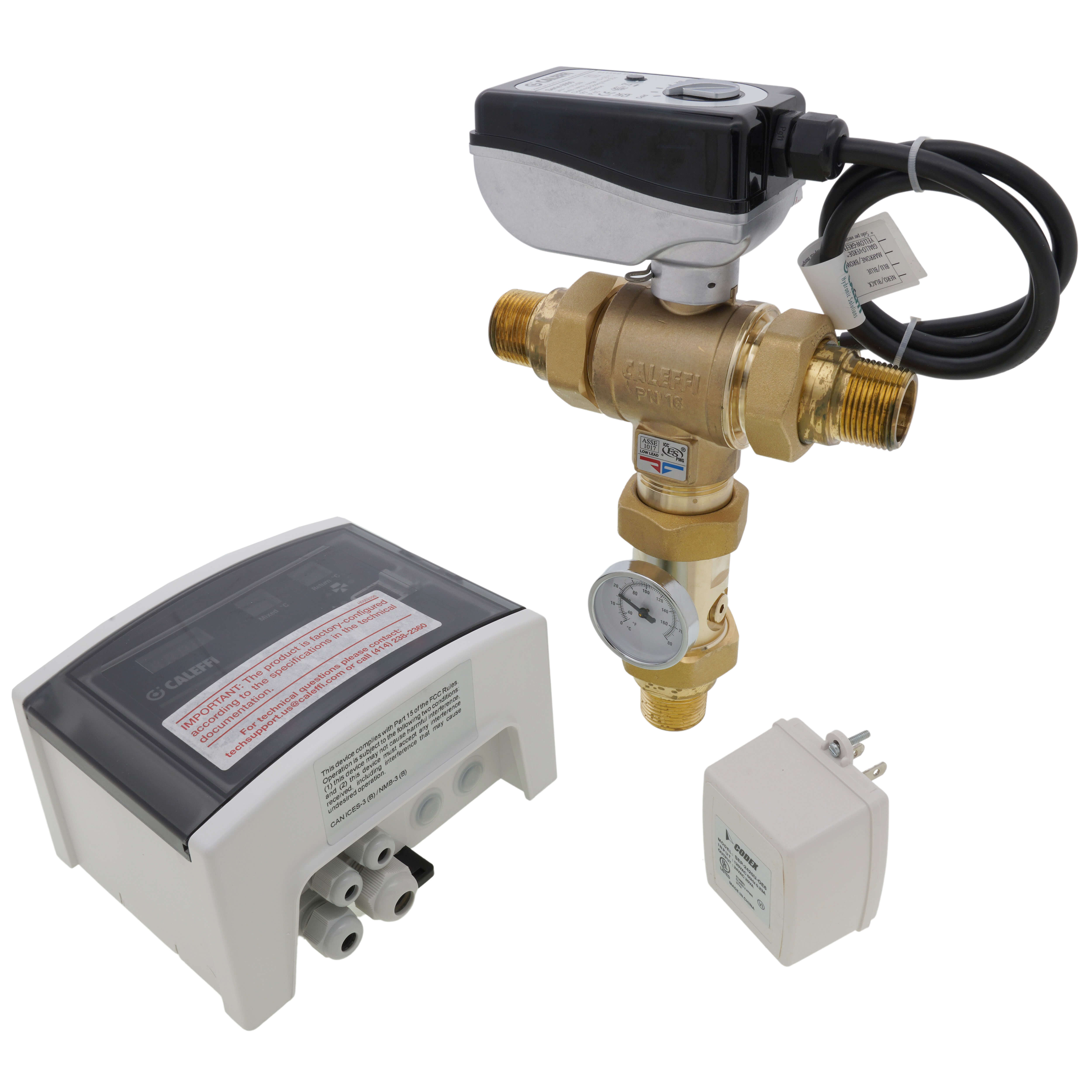

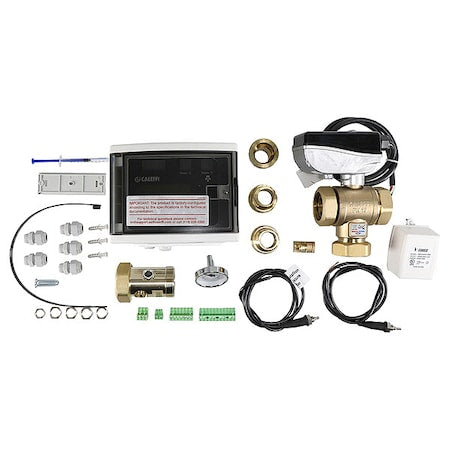

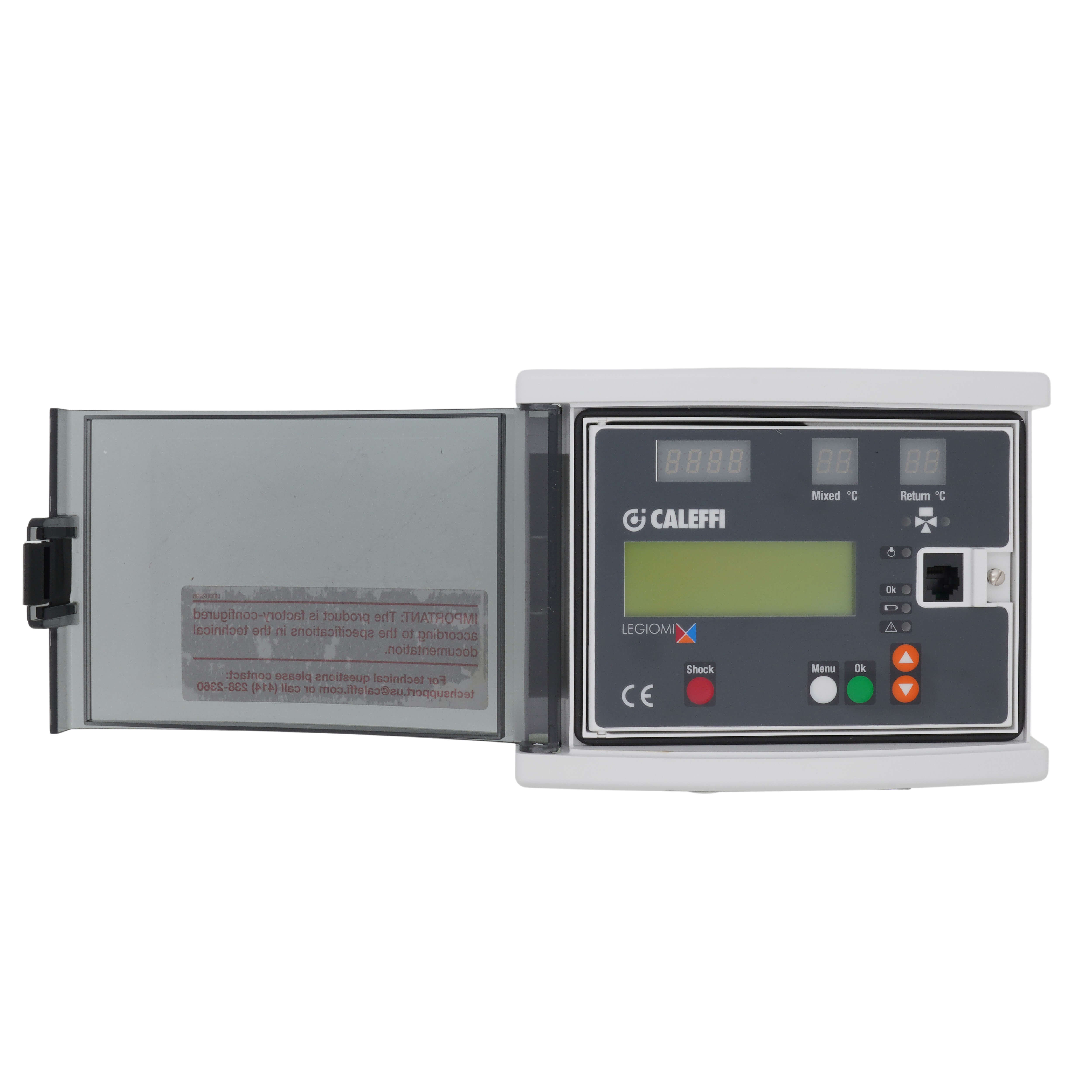

The CALEFFI 600064A electronic mixing valve is designed for centralized domestic hot water systems. It precisely maintains the hot water temperature despite variations in inlet temperature, pressure, or flow rate. This valve features automatic self-cleaning to prevent scale buildup and offers a digital interface for data logging, alarming, and status indication. It includes a controller with an LCD user interface that provides programs for circuit thermal disinfection to combat Legionella, ensuring safe and consistent hot water delivery.

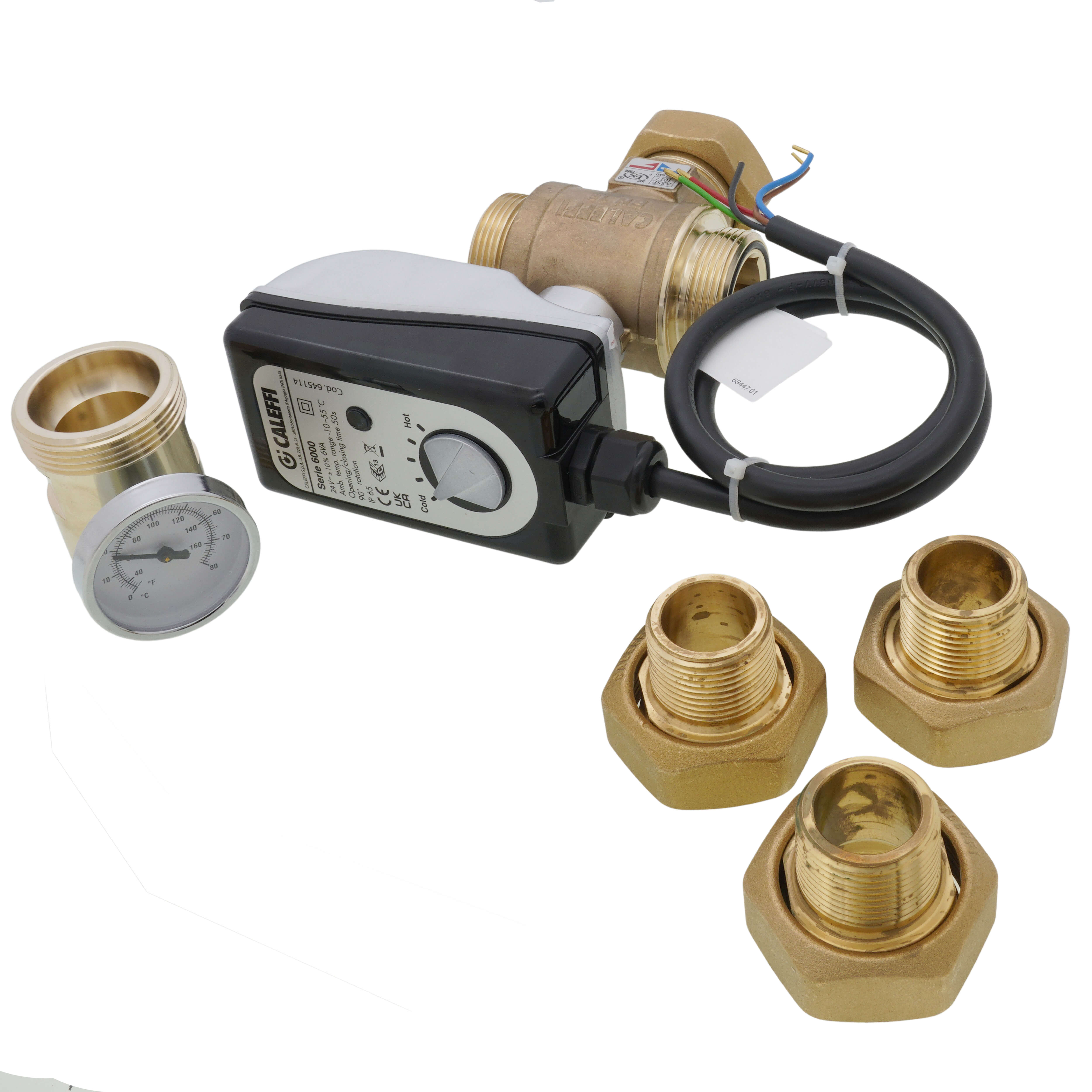

• Features a 3-wire floating control actuator and 3-way ball valve for reliable operation.
• Controller is configurable via keypad, local, or remote computer for flexible management.
• Provides programs for circuit thermal disinfection to kill Legionella, enhancing safety.

Product Highlights

Maintains precise domestic hot water temperature, features automatic self-cleaning, and includes a digital interface with Legionella disinfection programs.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 600064A
• Country of Origin: Italy

Technical Specifications

• Power: 24 VAC-50/60 Hz-6 VA
• Adjustment Temperature Range: 70°-185°F
• Disinfection Temperature Range: 100°-185°F
• Max Body Pressure Rating (Static): 230 psi
• Max Operating Pressure: 150 psi
• Max Inlet Temperature: 212°F
• Protection Class: IP 54 (controller)
• Compliance with Codes: International Plumbing Code (IPC), International Residential Code (IRC), Uniform Plumbing Code (UPC), National Plumbing Code of Canada (NPC)
• Compliance with Standards: ASSE 1017 Temperature Actuated Mixing Valves for Hot Water Distribution Systems, CSA B125.3 Water Temperature Limiting Devices, NSF/ANSI 372 - 2016, Drinking Water System Components - Lead Content, Reduction of Lead in Drinking Water Act, California Health and Safety Code 116875 S.3874, Reduction of Lead in Drinking Water Act; meets requirements of ANSI/NSF 372-2011 and certified to ASSE 1017, CSA B125.3, UPC, IPC, Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes
• Size: 1"
• Material: Brass
• Body Pattern: 3-Way
• Connection Type: MNPT x MNPT
• Connection Method: Threaded
• Flow Capacity (Cv): 21
• Flow Rate: 94 gpm
• Lead Content: Contains Lead
• Media: Water
• Packing Material: EPDM
• Seal Material: EPDM
• Seat Material: PTFE
• Series: 6000 Series
