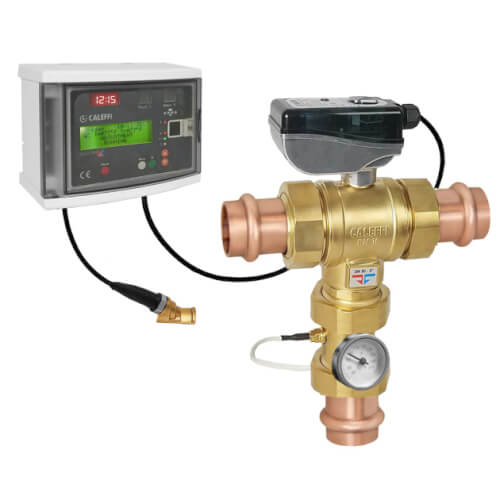

Caleffi 600056A LegioMix Electronic Mixing Valve 3/4 Press Union 9.7Cv

Product Description

The Caleffi 600056A is an electronic mixing valve designed for centralized systems that distribute domestic hot water. It ensures consistent water temperature despite variations in supply conditions. This valve offers precise control for low and high flow rates, reducing pressure drops effectively.

• Automatic self-cleaning feature
• Easy-to-use digital interface
• Equipped with a controller for temperature disinfection

Product Highlights

The LegioMix valve utilizes digital technology to maintain optimal hot water delivery. It incorporates a user interface that allows programming for thermal disinfection to combat Legionella bacteria.

Product Information

Standard Information

• Brand: Caleffi North America
• Model Number: 600056A

Technical Specifications

• Size: 3/4 inches
• Type: Digital
• Connection Type: Press
• Flow Capacity (Cv): 9.7
• Maximum Operating Pressure: 150 psi
• Max Inlet Temperature: 212 degrees F
• Max Body Pressure Rating: 230 psi
• Adjustment Temperature Range: 70 degrees to 185 degrees F
• Disinfection Temperature Range: 100 degrees to 185 degrees F
