Caleffi 577876A XF Xtra Filtration Magnetic Dirt Separator 1-1/4 inches Press Union

Product Description

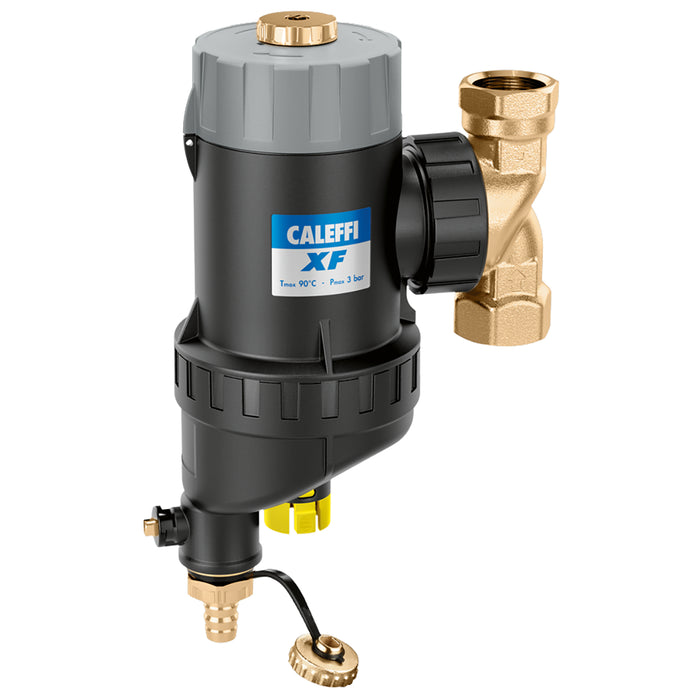

The CALEFFI 577876A Xtra Filtration magnetic dirt separator (press) features a composite body with a rotating brass collar. Designed for hydronic and plumbing systems, it supports safe and efficient system performance. It has an internal filter mesh with rotating brush and a 50% bypass feature on 1 1/4" and 1 1/2" sizes.

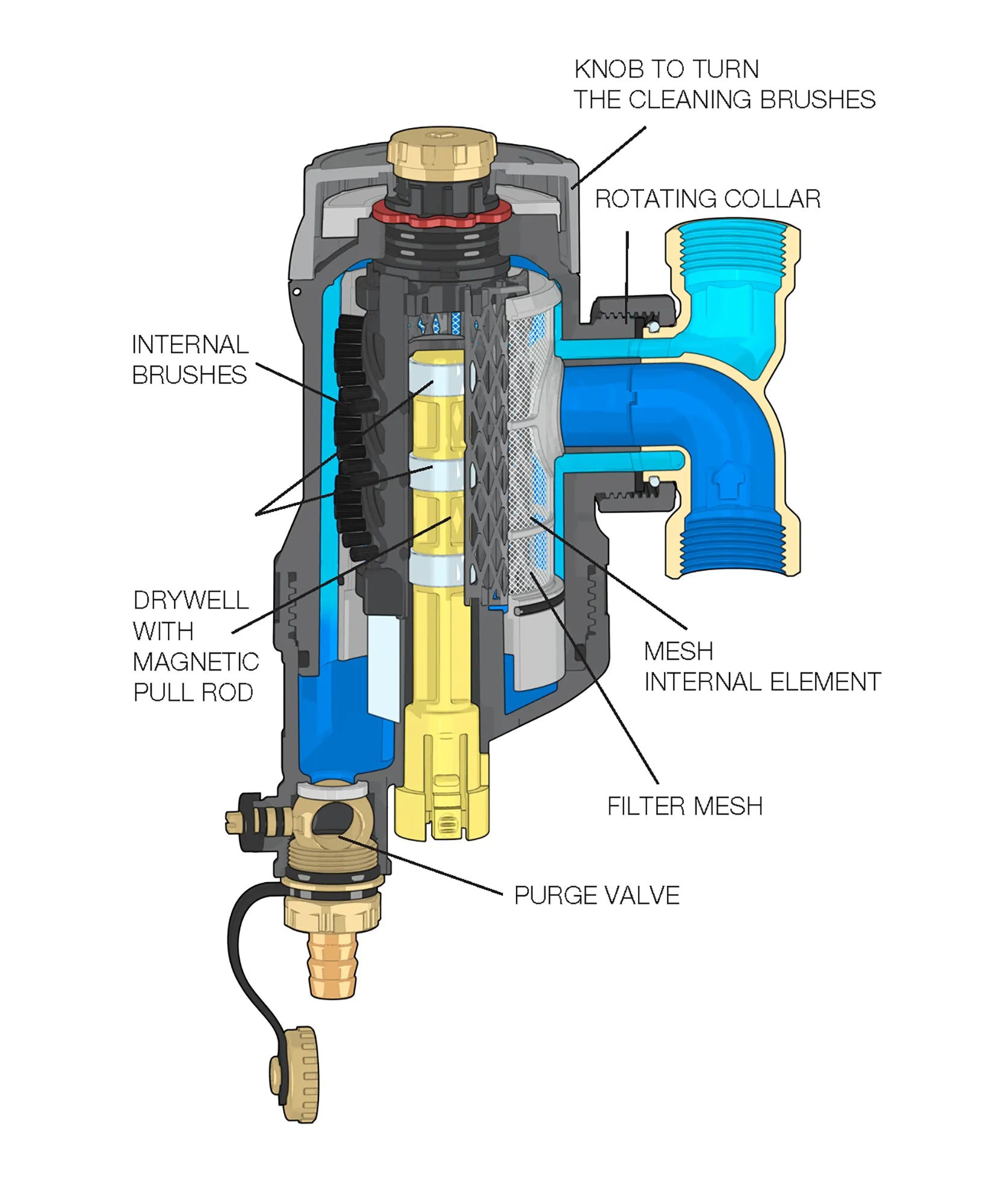

• Composite body with rotating brass collar
• Internal filter mesh with rotating brush
• Internal magnet in drywell

Product Highlights

The XF magnetic dirt separator is a semi-automatic, self-cleaning magnetic filter adjustable for horizontal and vertical pipes. It includes a drain valve and cock with hose connection.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 577876A

Technical Specifications

• Material: composite/brass
• Medium temperature range: 32 – 195 °F
• Maximum operating pressure: 45 psi
• Connection: 1 1/4" Press, union
• Filter mesh size: 160 cm
• Compatible medium: Water, glycol solutions up to 30%
• Brand: Caleffi
• Category: Hydraulics & Valves
• Size: 1 1/4
• Application: Designed for hydronic and plumbing systems where dependable flow control, protection, or regulation is required.
• Working temperature range: 32 – 195 °F
