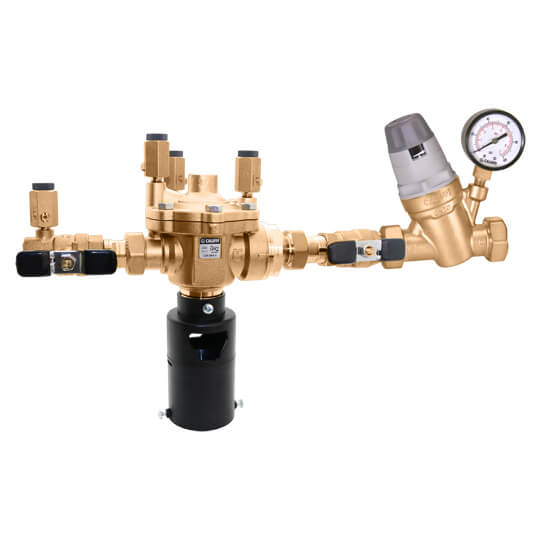

Caleffi 574166A 1 inches press 574 brass RPZ backflow preventer & autofill combo w/ gauge press x press

Product Description

The CALEFFI 574166A is a low lead brass automatic filling valve with a testable reduced pressure zone backflow preventer. This 1-inch press connection unit includes an AutoFill Combo and a pressure gauge, designed for systems requiring precise pressure control. It operates with a maximum inlet pressure of 154 psi and a maximum working temperature of 140°F, ensuring reliable performance.

• Pre-adjustable automatic filling valve with testable reduced pressure zone backflow preventer
• Low lead brass body
• Includes AutoFill Combo and equipped with gauge

Product Highlights

Features a pre-adjustable automatic filling valve and a testable RPZ backflow preventer in a low lead brass body.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 574166A

Technical Specifications

• Connection Size: 1 inch
• Material: Brass
• Product Type: Backflow Preventer
• Connection Type: Press x Press
• Max Inlet Pressure: 154 psi
• Max Working Temperature: 140°F
• Setting Pressure Range: 6-90 psi
• Preset Outlet Pressure: 15 psi
• Pressure Gauge Scale: 0-100 psi / 0-7 bar
• Standards Compliance: ASSE 1013
• Category: Filling Units and Boiler Trim Kits
• Subcategory: Automatic Filling Units
• Type: AutoFill Combo
