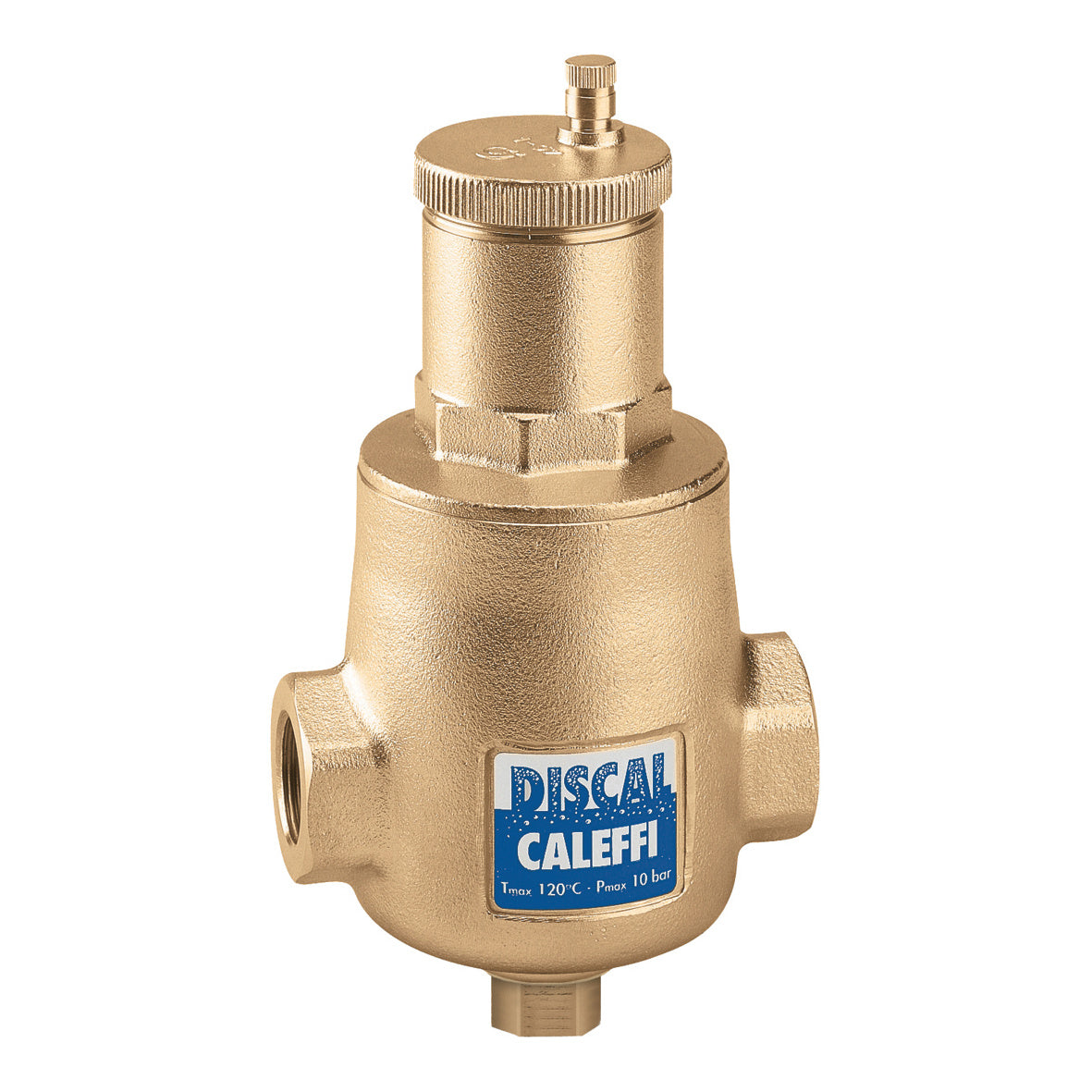

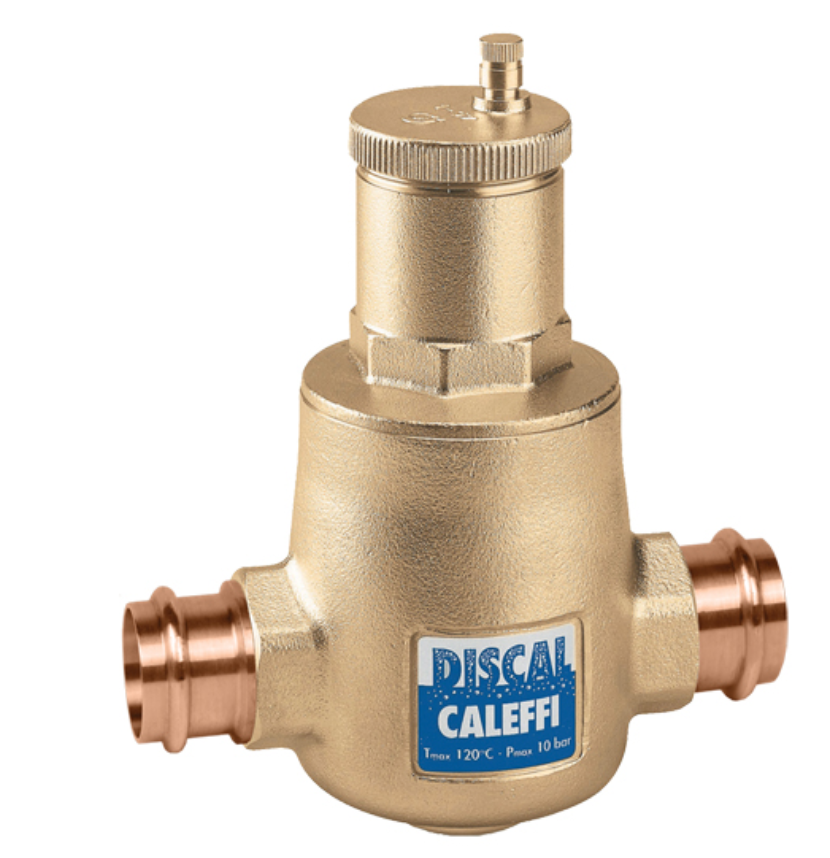

Caleffi 551067AC Discal Air Separator 1-1/4 inches Press w/ Check Valve

Product Description

The CALEFFI 551067AC DISCAL air separator continuously removes air contained in hydronic circuits of heating and cooling systems. Its air discharge capacity removes air down to the micro-bubble level. The circulation of de-aerated water enables equipment to operate under optimum conditions, free from noise and corrosion.

• Brass body
• Maximum working pressure: 150 psi
• Working temperature range: 32- 250 degrees F

Product Highlights

This air separator has up to 100% air separation removal and is corrosion resistant. It includes a stainless steel float guide pin and linkage with a glass reinforced nylon internal element.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 551067AC
• Country of Origin: IT

Technical Specifications

• Compatible with: KIT551546-067
• Size: 1-1/4"
• Material: Brass
• Max Temp (F): 250 F
• Product Type: Air Eliminator
• Connection Type: Press x Press
• Connection Method: Press
• Max Pressure (PSI): 150
• Medium temperature range: 32 – 230 °F
• Maximum operating pressure: 150 psi
• Connection: 1 1/4" Press
• Style: Microbubble Remover
• Approximate Height (inches): 7.50
• Approximate Width (inches): 7.4375
• Series: 551
• Pressure Rating: 150 PSI
• Temperature Rating: 32-250 degree F
• Air Separation Efficiency: Up to 100 percent Removal
• Includes: Expansion Tank Service Check Valve
• Brand: Caleffi
• Category: Hydraulics & Valves
• Application: Designed for hydronic and plumbing systems where dependable flow control, protection, or regulation is required.
