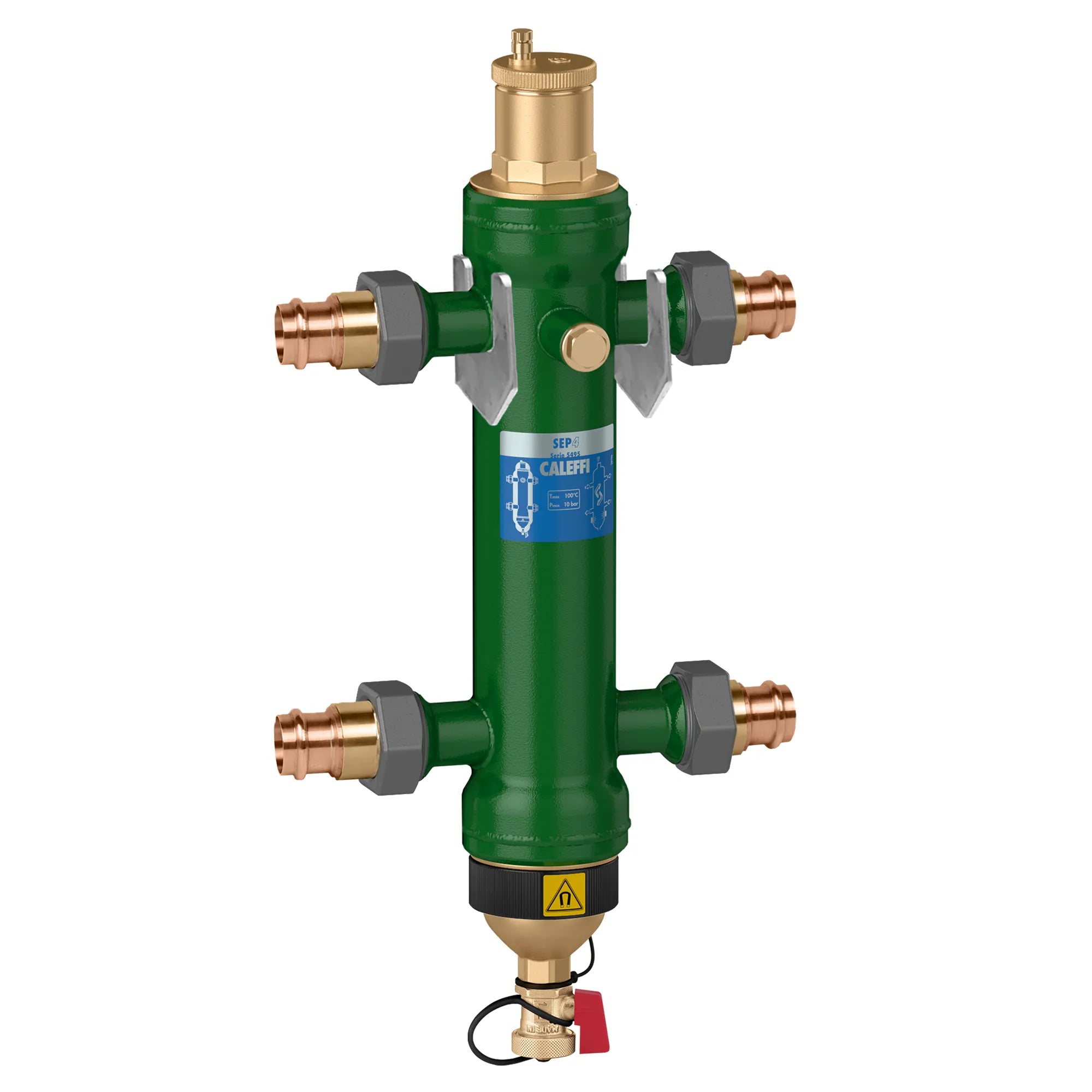

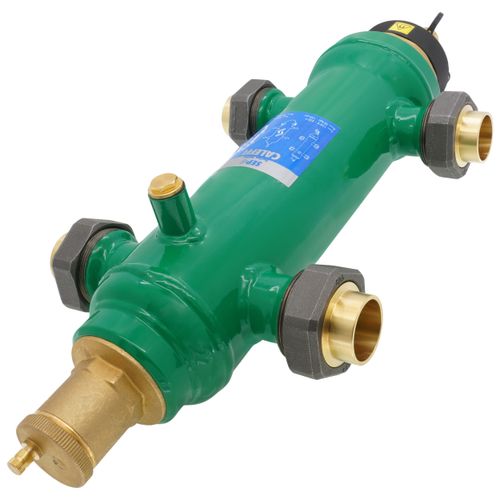

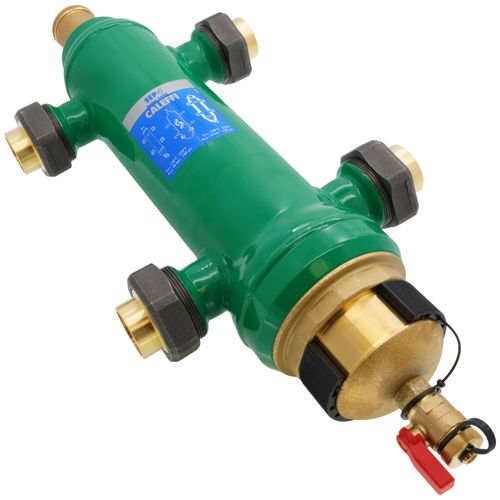

Caleffi 549598A SEP4 4-in-1 Hydraulic Separator 1-1/2 inches

Product Description

The CALEFFI 549598A SEP4 is a multifunction hydraulic separator that combines air, dirt, hydraulic, and magnetic separation. It makes primary and secondary circuits hydraulically independent and can be used on hot or chilled water systems. The SEP4 features an HDPE internal element that continuously eliminates air micro-bubbles while removing dirt particles as small as 5 microns.

• Combination air, dirt, hydraulic and magnetic separator
• Epoxy resin coated steel body
• HDPE internal coalescing element, removable for cleaning

Product Highlights

This 4-in-1 separator saves on system installation and maintenance costs by removing the need for separate air and dirt separators. It also features a magnetic ring for effective capture of ferrous particles.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 549598A

Technical Specifications

• MPN: 549598A
• UPC: 801661544279
• Brand: CALEFFI
• Connection Type: C Union
• Flow Rate: 26 gpm
• Material: Steel
• Nominal Size: 1-1/2 in
• Series: 5495
• Temperature Rating: 32 to 210 deg F
• Type: Magnetic
• Working Pressure: 150 psi
• Size: 1-1/2"
• Replacement Parts: NA10803, NA10796
• Max Pressure: 150 psi
• Max Temp (F): 210°F
• Product Type: Air Eliminator, Dirt Eliminator, Hydraulic Separator
• Connection Method: Sweat
• Manufacturer: Caleffi
• Manufacturer #: 549598A
• Parts Town #: CALE549598A
• Units: Each
• Maximum operating pressure: 150 psi
• Medium temperature range: 32 – 212 °F
• Connection: 1 1/2" Press, union
