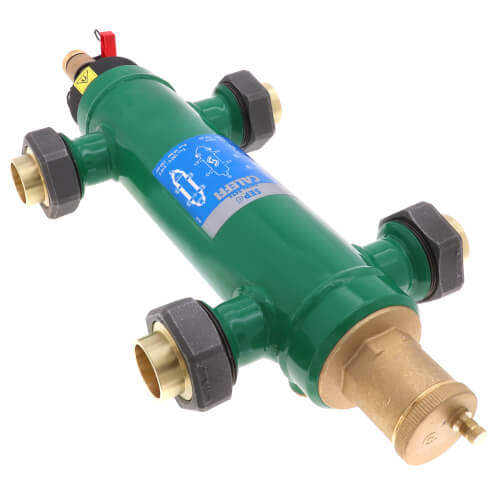

Caleffi 549597A SEP4 4-in-1 Magnetic Hydraulic Separator 1-1/4 Sweat Unions

Product Description

The Caleffi SEP4 549597A is a multifunctional hydraulic separator designed to effectively manage air, dirt, and magnetic impurities in heating and cooling systems. This unit features a durable steel construction with epoxy resin coating and is capable of separating air, dirt, and enhancing hydraulic performance. It connects via sweat unions, making installation straightforward and efficient.

• Combination air, dirt, hydraulic, and magnetic separator.
• Epoxy resin coated steel body with removable internal coalescing element for cleaning.
• Works efficiently in systems ranging from thirty-two to two hundred ten degrees Fahrenheit.

Product Highlights

The Caleffi SEP4 enables optimal performance in air conditioning circuits using its unique features like high air separation efficiency and magnetic impurity capture.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 549597A

Technical Specifications

• Connection Type: C Union
• Dimensions: Nine and three-quarters inches wide
• Flow Rate: Eighteen gallons per minute
• Insulation Material: PE-X
• Material: Steel
• Maximum Percentage of Glycol: Zero point five
• Nominal Size: One and one-quarter inches
• Series: 5495
• Temperature Rating: Thirty-two to two hundred ten degrees Fahrenheit
• Type: 4-in-1
• Working Pressure: One hundred fifty psi
