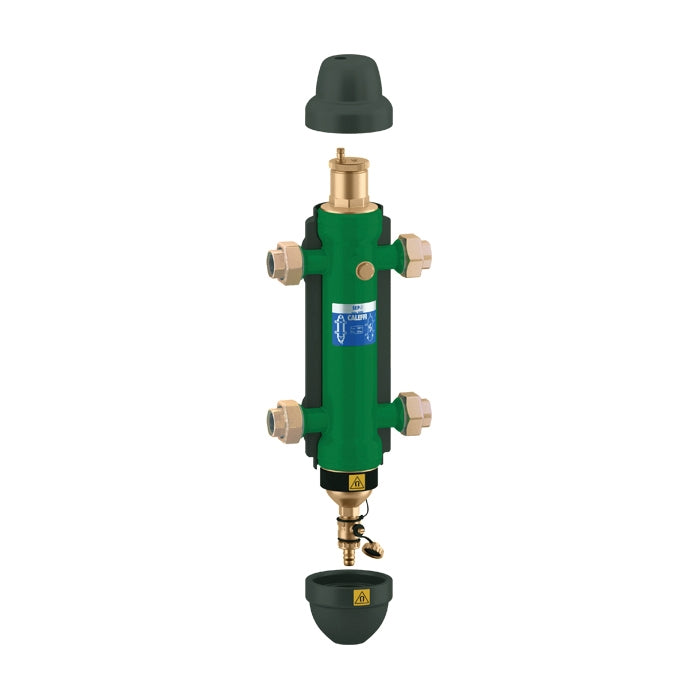

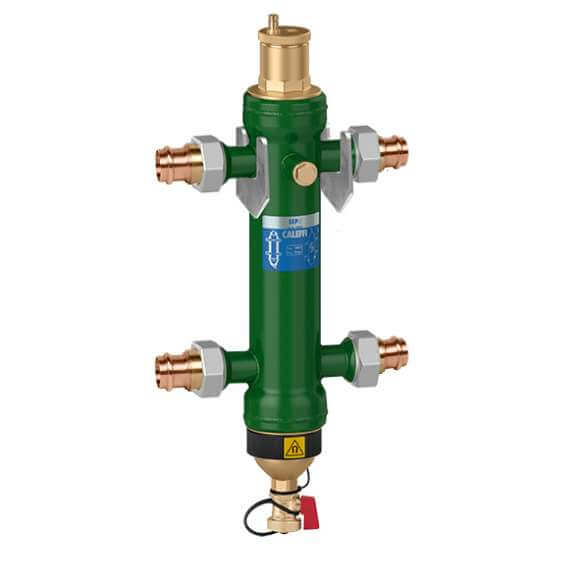

Caleffi 549569A SEP4 magnetic hydraulic separator 4-in-1 2 in

Product Description

The CALEFFI 549569A is a multifunction hydraulic separator designed for air conditioning systems. This 4-IN-1 unit combines hydraulic, micro-bubble coalescing air, dirt, and magnetic separation functions. It features a 2-inch female press union connection, operates up to 150 psi, and handles temperatures from 32 to 210 deg F with a flow rate of 37 gpm. It is constructed from steel with PE-X insulation.

• Combination air, dirt, hydraulic and magnetic separator
• HDPE internal coalescing element, removable for cleaning
• Closed cell expanded PE-X insulation material

Product Highlights

Integrates hydraulic, air, dirt, and magnetic separation for comprehensive system protection.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 549569A

Technical Specifications

• Connection Type: Female Press Union
• Flow Rate: 37 gpm
• Insulation Material: PE-X
• Material: Steel
• Maximum Percentage of Glycol: 0.5
• Nominal Size: 2 in
• Series: 5495
• Temperature Rating: 32 to 210 deg F
• Type: 4-IN-1
• Working Pressure: 150 psi
• Product Type: Hydraulic Separator
