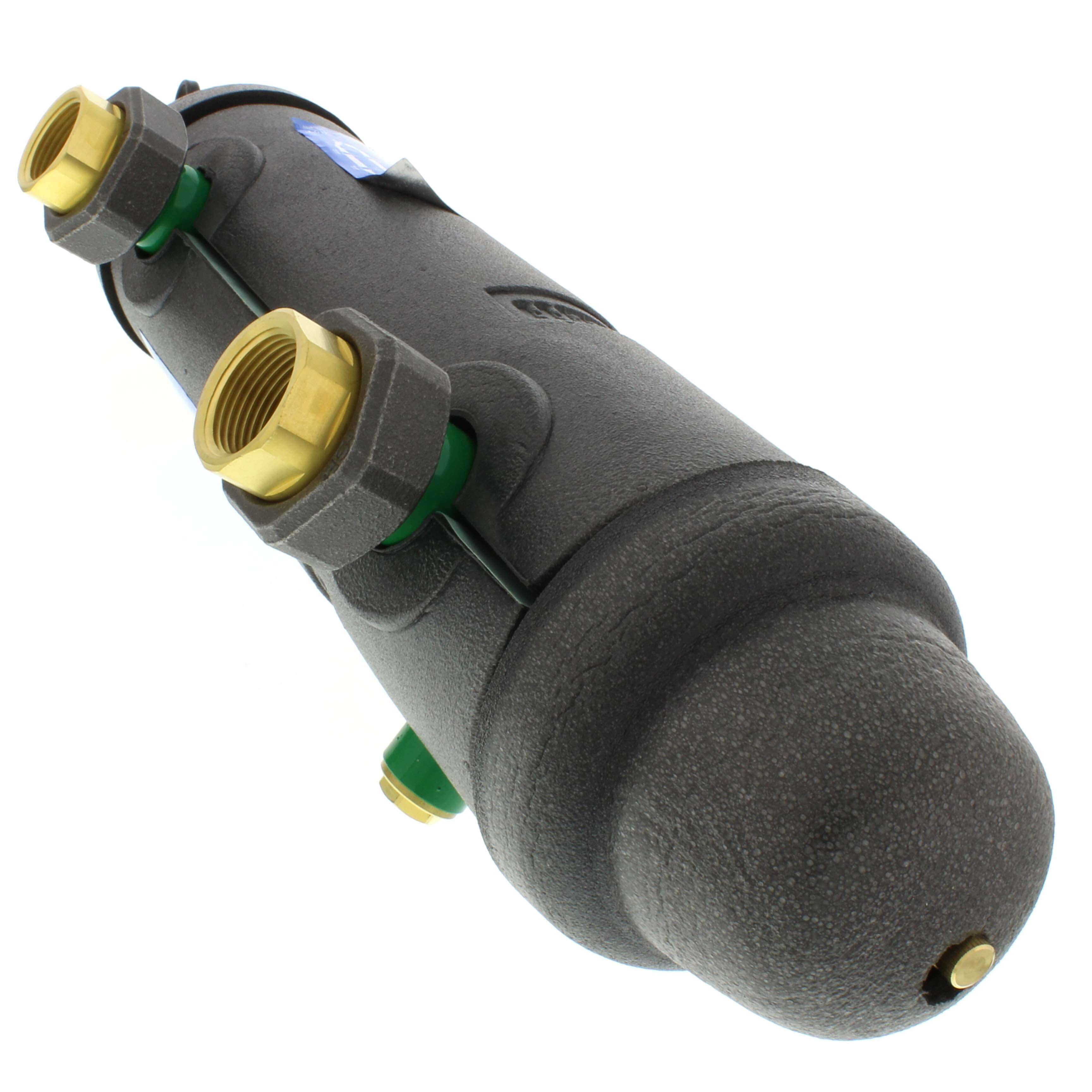

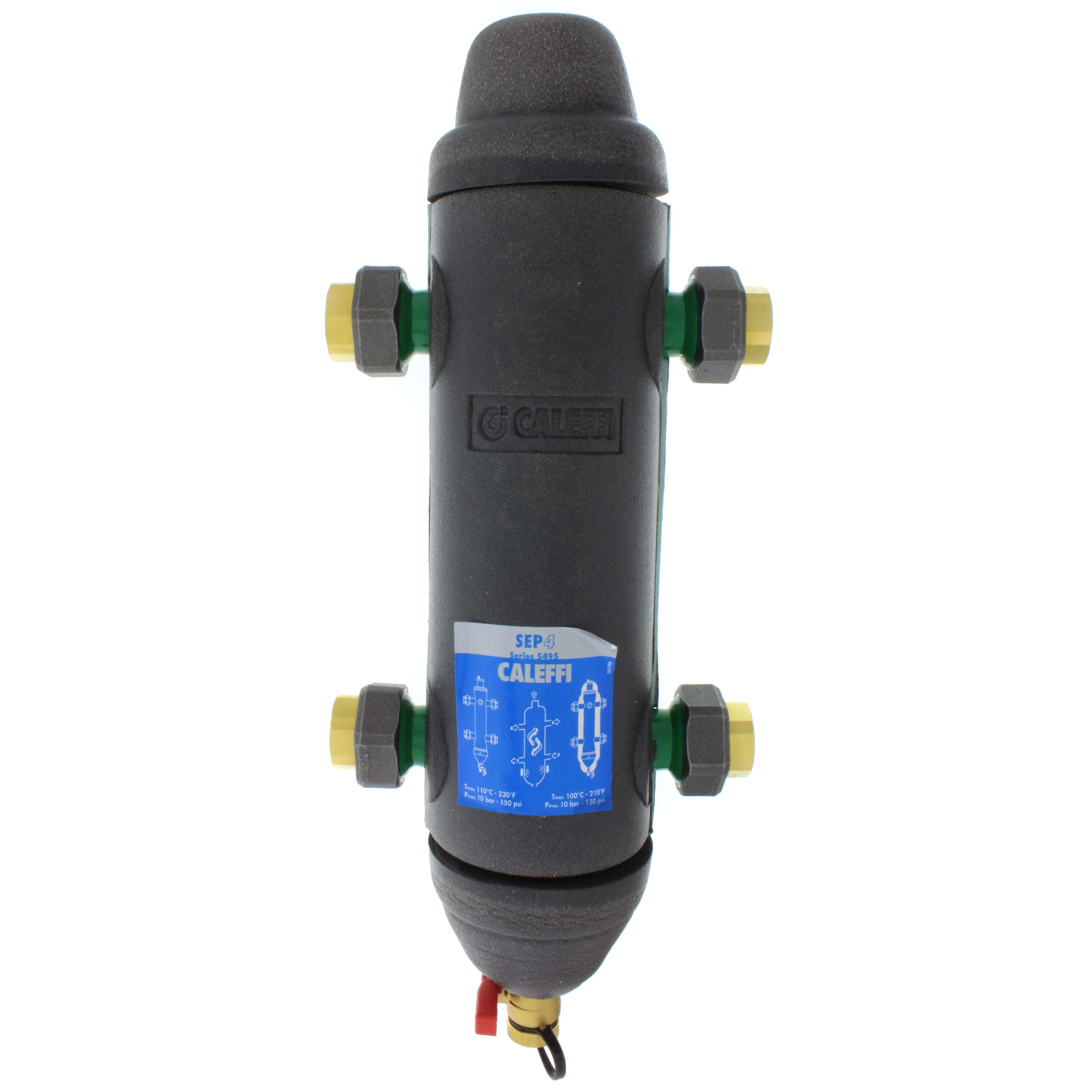

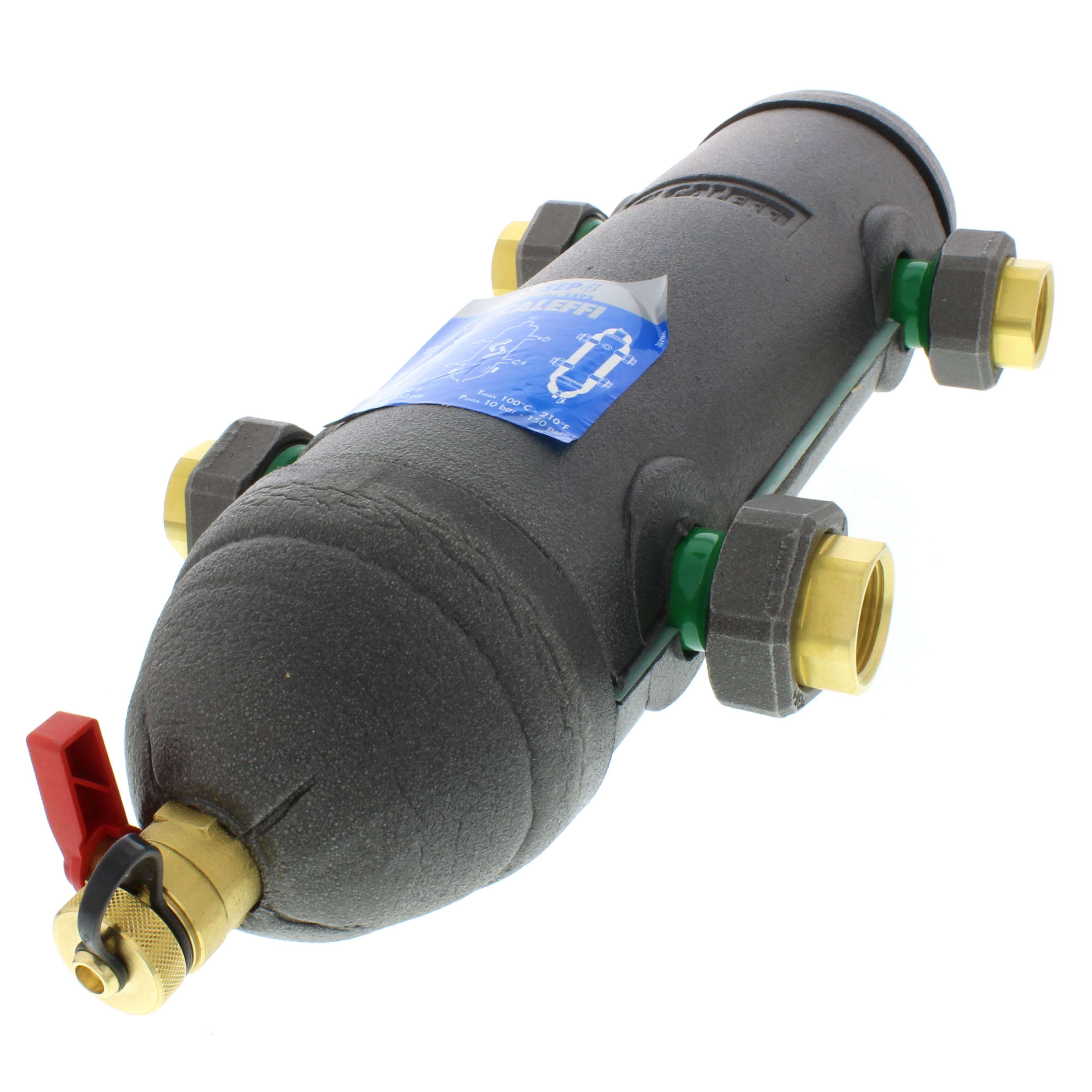

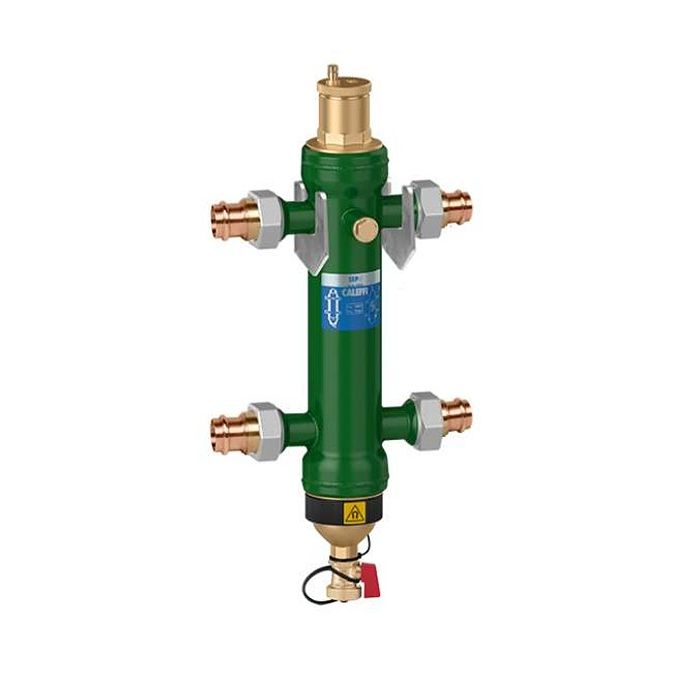

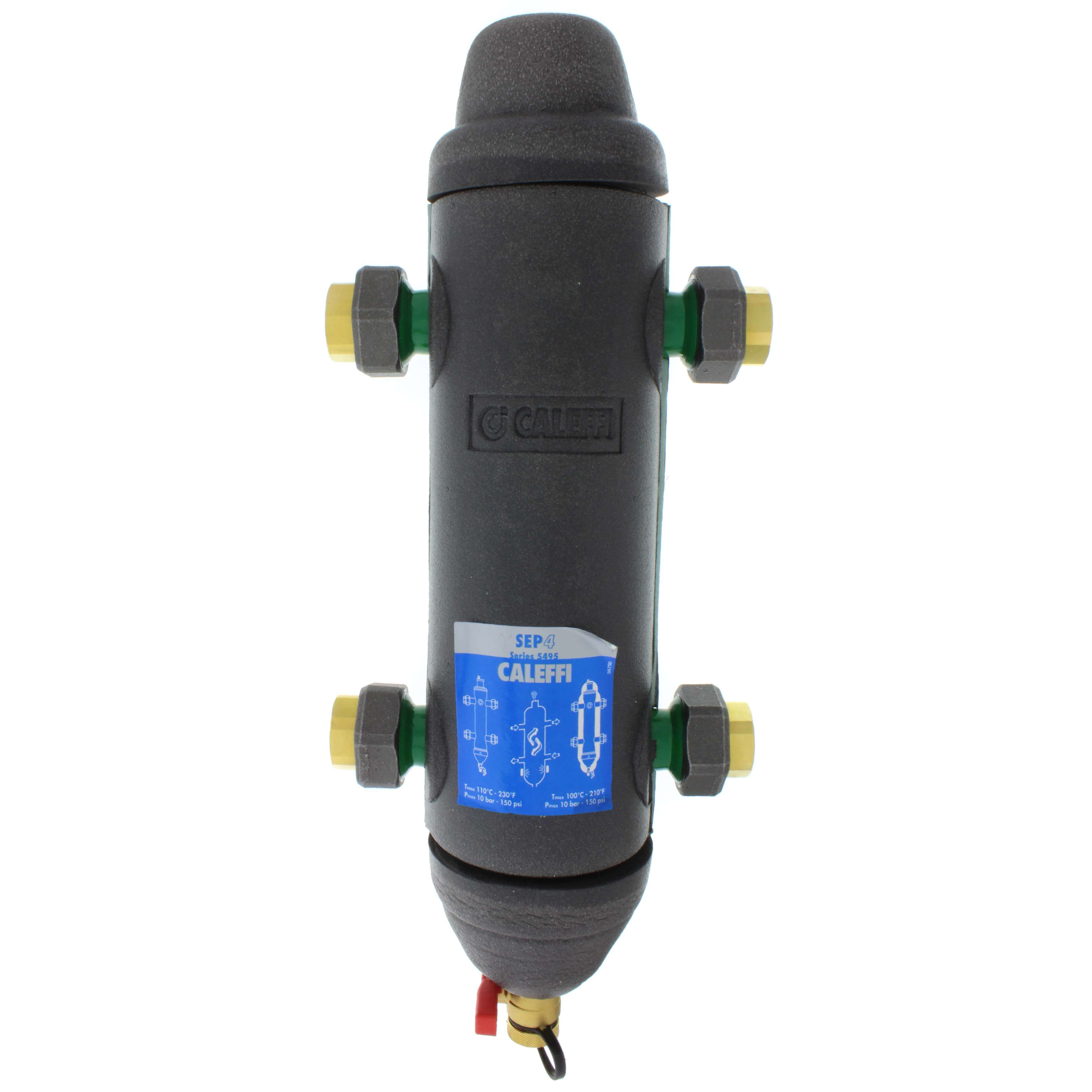

Caleffi 549568A SEP4 4-in-1 air, dirt, hydro & magnet hydraulic separator 1-1/2 inches press NA10796

Product Description

The CALEFFI 549568A SEP4 is a 4-in-1 combination air, hydraulic, dirt, and magnetic separator designed for hot or chilled water systems. This device makes primary and secondary circuits hydraulically independent, continuously eliminating air micro-bubbles and removing dirt particles as small as 5 microns. Its high-performance functionality, including a magnetic ring for ferrous particle capture, reduces installation and maintenance costs by combining multiple separation functions.

• Combination air, dirt, hydraulic, and magnetic separator for comprehensive system protection.
• Features an HDPE internal coalescing element, which is removable for cleaning.
• Operates with a maximum working pressure of 150 PSI and a temperature range of 32°F to 210°F.

Product Highlights

Effectively removes air micro-bubbles, dirt particles, and ferrous impurities from hydronic systems.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 549568A

Technical Specifications

• Connection Size: 1-1/2"
• Separator Type: Magnetic
• Replacement Part Number: NA10796
• Body Material: Steel
• Max Operating Temperature: 210°F
• Product Type: Dirt Eliminator, Hydraulic Separator, Air Eliminator
• Connection Type: Press x Press
• Flow Rate: 2.5 GPM
• Connection Method: Press
• Max Working Pressure: 150 PSI
• Series: 5495 Series
