Caleffi 549567A SEP 4™ 4-in-1 Union 1 1/4 Press

Product Description

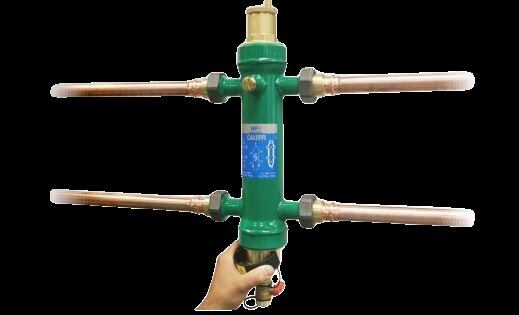

The Caleffi SEP 4™ with MPN 549567A is a versatile air separator that combines four essential functions into one unit for heating systems. This device performs hydraulic separation, air separation, dirt separation, and magnetic separation, making it an efficient choice for managing hot and chilled water systems.

• Four functions in one unit
• Compatible with hot or chilled water systems
• Constructed from corrosion-resistant materials

Product Highlights

This air separator is designed to save on installation and maintenance costs. It features a high air discharge capacity, removing micro-bubbles and dirt particles effectively.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 549567A
• Type: Hydro Separator

Technical Specifications

• Size: 1-1/4 inches
• Connection Type: Press
• Max Working Pressure: 150 psi
• Working Temperature Range: 32 - 210°F
• Magnetite Removal Efficiency: 95%
• Air Separation Efficiency: 100% to micro-bubble level
• Shipping Dimensions: 4 inches x 4 inches x 2 inches
• Weight: 20.1 lbs
