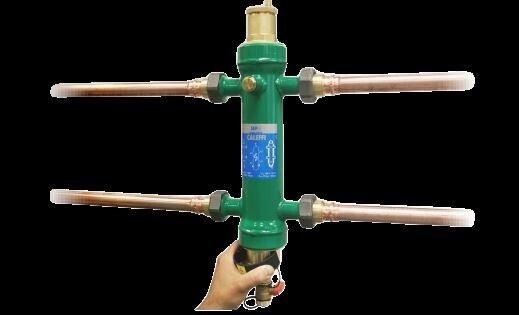

Caleffi 549566A SEP 4™ 4-in-1 Union 1 Press Replacement MPN

Product Description

The Caleffi SEP 4™ 4-in-1 Union 1 Press, MPN 549566A, is a multifunctional hydraulic separator designed for both hot and chilled water systems. It effectively combines four essential functions: hydraulic separation, micro-bubble air separation, dirt separation, and magnetic separation. This compact design allows for efficient system performance while reducing installation and maintenance costs.

• Four functions combined in one device
• High efficiency in dirt and air removal
• Constructed with corrosion-resistant materials

Product Highlights

The SEP 4™ enhances system reliability by automatically capturing air and dirt particles, promoting cleaner water flow. It features an HDPE internal element that aids in the continuous removal of air micro-bubbles and dirt particles as small as five microns.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: 549566A

Technical Specifications

• Type: Hydro Separator
• Size: 1 inch
• Connection Type: Press
• Maximum Working Pressure: 150 psi
• Working Temperature Range: 32 - 210 °F
• Particle Separation Capacity: down to 5 microns
• Magnetite Removal Efficiency: 95%
• Air Separation Efficiency: 100% to micro-bubble level
