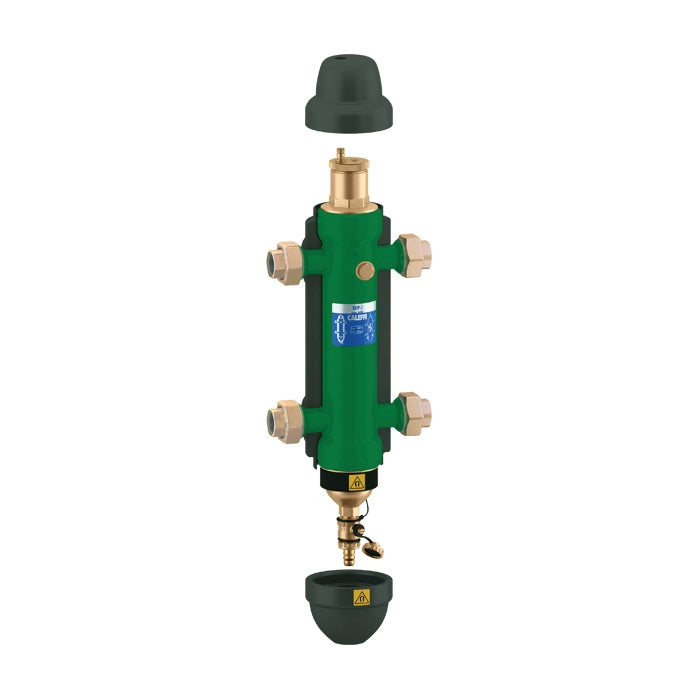

Caleffi 549509A SEP4 4-in-1 Air Dirt Hydro Magnetic Separator 2 Inch

Product Description

The CALEFFI 549509A is a 4-in-1 Air Dirt Hydro Magnetic Separator designed for hydronic systems. This multifunction hydraulic separator combines air, dirt, hydraulic, and magnetic separation functions, ensuring primary and secondary circuits are hydraulically independent. It effectively removes air micro-bubbles and dirt particles down to 5 microns, including ferrous impurities, and is suitable for both hot and chilled water systems.

• Combination air, dirt, hydraulic, and magnetic separation in one device.
• Features an HDPE internal coalescing element, which is removable for cleaning.
• Equipped with a powerful neodymium rare-earth magnet for efficient ferrous impurity capture.

Product Highlights

This separator prevents pump conflict by hydraulically de-coupling circuits and offers high performance air and dirt removal, including microscopic ferrous particles.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 549509A

Technical Specifications

• MPN: 549509A
• Brand: Caleffi
• Manufacturer: Caleffi
• Product Type: Dirt Eliminator, Hydraulic Separator, Air Eliminator
• Category Root: Industrial & Scientific
• Category Sub: Process Controllers
• Category Tree: Industrial & Scientific > Industrial Electrical > Controls & Indicators > Controllers > Process Controllers
• Type: 4-in-1 Magnetic
• Series: 5495
• Material: Steel
• Flow Rate: 37 gpm
• Nominal Size: 2 Inch
• Connection Type: FNPT Union
• Connection Method: Threaded
• Working Pressure: 150 psi
• Temperature Rating: 32 to 210 deg F
• Temperature Rating without Insulation: 32 - 230F
• Insulation Material: PE-X
• Particle Separation Capacity: 5 micron
• Magnetite Removal Efficiency: 95%
• Air Separation Efficiency: 100% to microbubble level
• Replacement Parts: 31426FD
• Finish: Epoxy Resin Coated
• Medium: Water, Glycol Solutions
• Certifications: BSI Certified
