Caleffi 549507A Air Separator 4-in-1 Air/Magnet/Dirt/Hydro 1-1/4 inches FPT Replacement NA10802, NA10778

Product Description

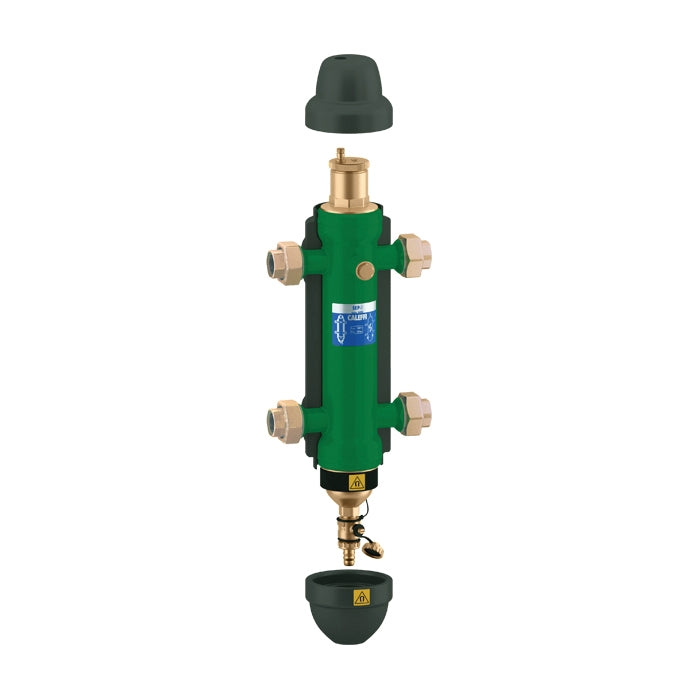

The CALEFFI 549507A is a high-performance multi-function hydraulic separator designed to optimize system efficiency. This 4-in-1 device combines hydraulic separation, micro-bubble coalescing air separation, dirt separation, and magnetic separation into a single unit. It includes a thermowell tap, pre-formed insulation jacket, and an easy-to-use drain valve, ensuring a long, trouble-free operating life with corrosion-resistant functional parts. It is suitable for various heating and cooling system applications.

• Integrates hydraulic, micro-bubble air, dirt, and magnetic separation functions.
• Features a thermowell tap, pre-formed insulation jacket, and an easy-to-use drain valve.
• Constructed with corrosion-resistant parts for extended operational longevity.

Product Highlights

This CALEFFI SEP4 unit streamlines system maintenance by combining four essential separation functions, effectively removing air, dirt, and magnetic particles for improved system performance.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 549507A

Technical Specifications

• Brand: CALEFFI
• MPN: 549507A
• Connection: 1-1/4" FPT
• Functions: Hydraulic separation, micro-bubble coalescing air separation, dirt separation, magnetic separation
• Type: 4-in-1
• Series: 5495
• Material: Steel
• Flow Rate: 18 gpm
• Nominal Size: 1-1/4 in
• Connection Type: FNPT Union
• Working Pressure: 150 psi
• Temperature Rating: 32 to 210 deg F
• Insulation Material: PE-X
• Maximum Percentage of Glycol: 0.5
• Replacement Parts: NA10802, NA10778
• Product Type: Air Eliminator, Hydraulic Separator, Dirt Eliminator
• Connection Method: Threaded
• Working Temperature Range without Insulation: 32 - 230°F
• Particle Separation Capacity: to 5 (0.2 mil)
• Magnetite Removal Efficiency: 95%
• Air Separation Efficiency: 100% to microbubble level
