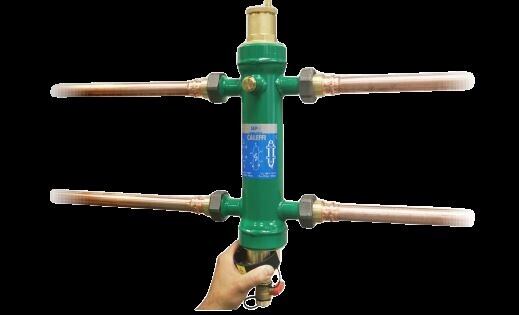

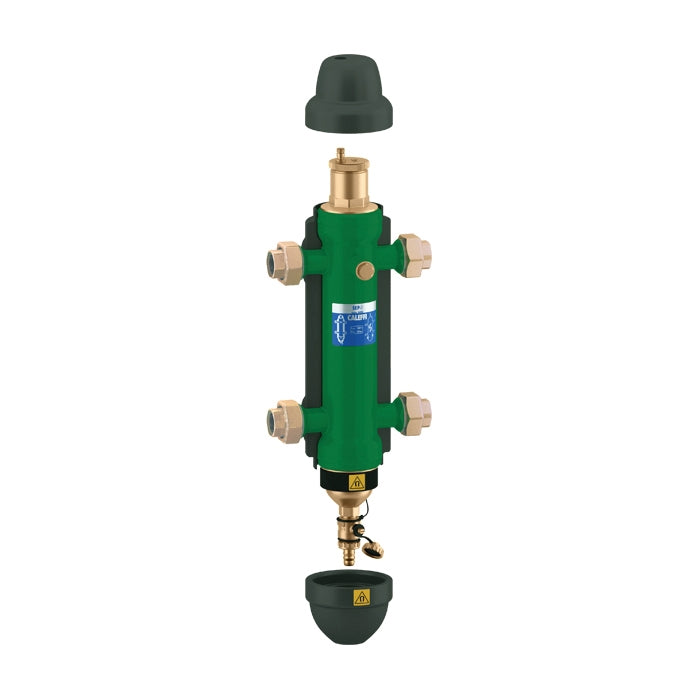

Caleffi 549506A SEP 4 4-in-1 Union 1 NPT

Product Description

The Caleffi SEP 4 4-in-1 Hydro Separator, MPN 549506A, serves as a multifunctional hydraulic separator for air conditioning systems. It combines four important functions: hydraulic separation, air separation, dirt separation, and magnetic separation. This design promotes efficiency and reduces installation costs by integrating these features into a single unit. The product is compatible with both hot and chilled water systems.

• Four-in-one functionality for efficient system performance.
• Temperature range: thirty-two to two hundred ten degrees Fahrenheit.
• Constructed with durable epoxy-coated steel for longevity.

Product Highlights

This hydraulic separator is equipped with pre-formed insulation for thermal efficiency and features a high flow capacity of eleven gallons per minute.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 549506A

Technical Specifications

• Connection Type: FNPT Union
• Nominal Size: 1 inch
• Material: Steel
• Flow Rate: 11 gallons per minute
• Working Pressure: 150 psi
• Temperature Rating: 32 to 210 degrees Fahrenheit
• Dimensions: 8-1/2 inches width
• Insulation Material: PE-X
