Caleffi 548069A 2 Press Union Hydro Separator

Product Description

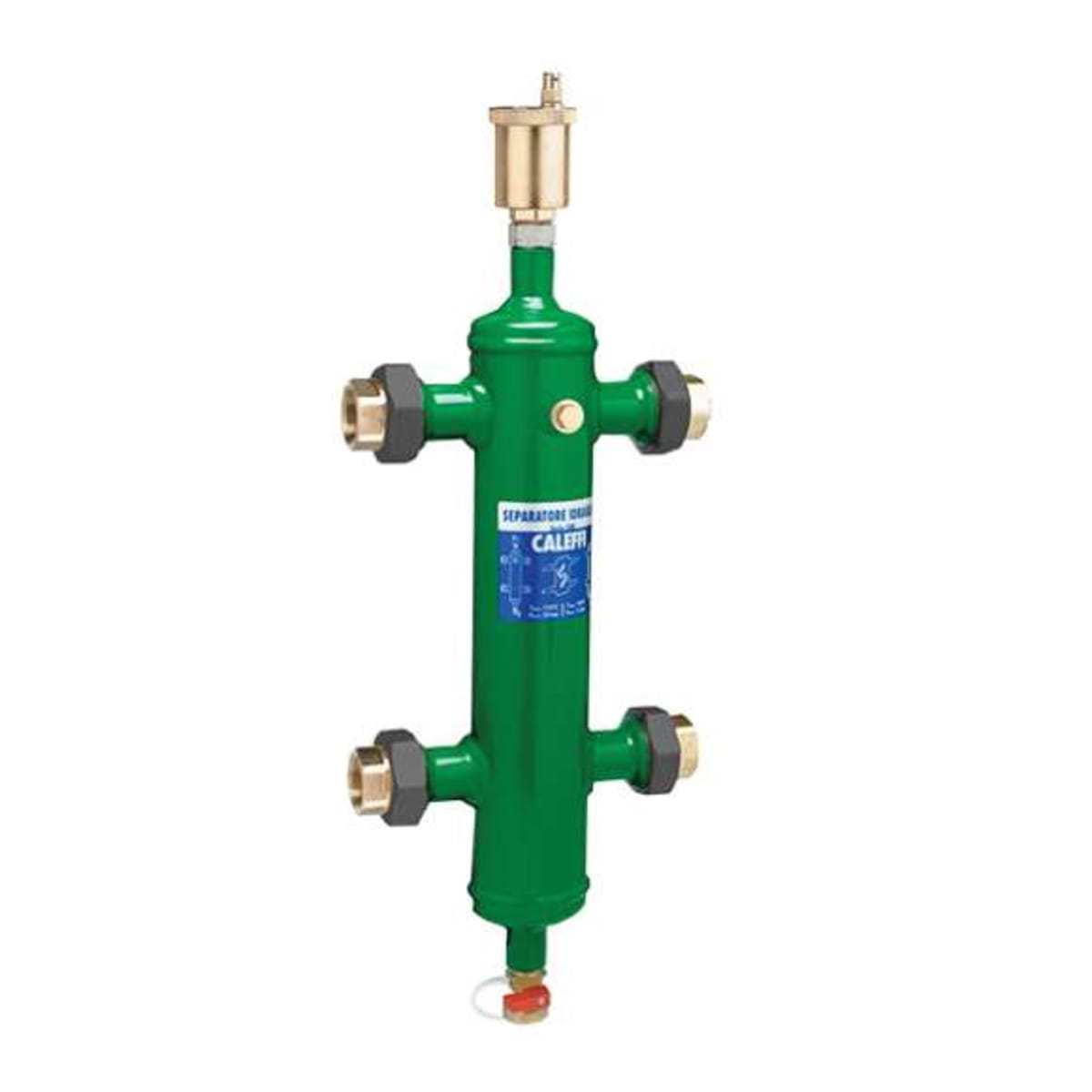

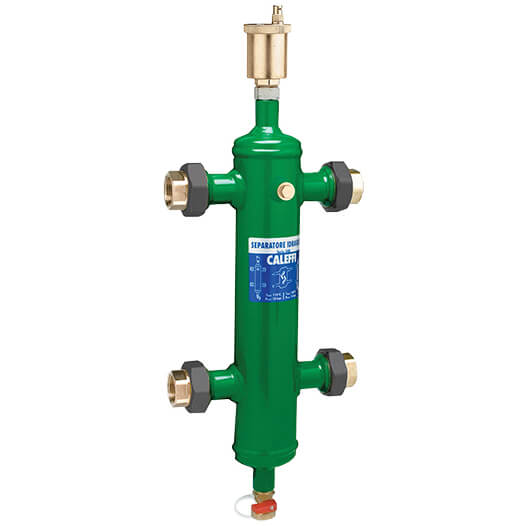

The Caleffi 548069A is a hydro separator designed for efficient hydraulic separation. It allows primary and secondary circuits to function independently, reducing pressure loss and eliminating pump conflicts. This feature is essential in maintaining system efficiency. The unit includes a high-capacity air vent with a service valve for easy air discharge, ensuring smooth operation.

• Hydraulic separation
• Epoxy resin coated steel body
• High-capacity air vent

Product Highlights

This hydro separator is suitable for use in various heating applications. It supports optimal performance in HVAC systems by enhancing flow control and reducing pressure drops.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-548069A

Technical Specifications

• Size: 2 inches
• Connection Type: Press Union
• Material: Brass, Steel
• Max Pressure: 150 PSI
• Weight: 35.1 pounds
• Shipping Dimensions: 29.5 x 15 x 9.5 inches
