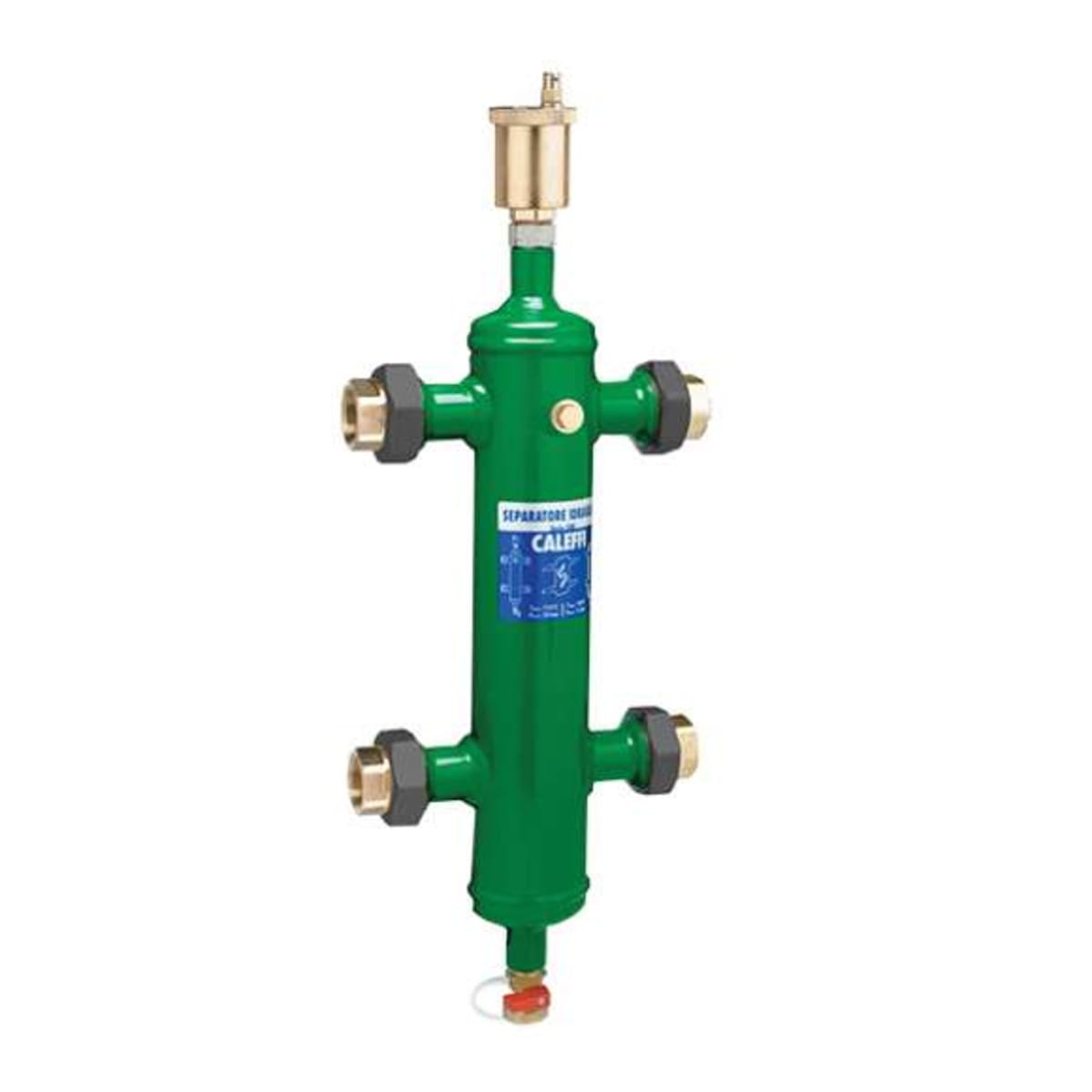

Caleffi 548006A Hydroseparator 1 NPT Union

Product Description

The Caleffi 548006A is a hydraulic separator designed for connection in heating systems. This unit features a one-inch nominal size with FNPT union connections. The separator allows for hydraulic independence between primary and secondary circuits, reducing pressure loss and improving system performance.

• Connection Type: FNPT Union
• Working Pressure: 150 psi
• Temperature Range: 32 to 210 degrees Fahrenheit

Product Highlights

This separator aids in preventing pump conflict by decoupling circuits. It includes an automatic air vent to release accumulated air, ensuring optimal operation.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: 548006A

Technical Specifications

• Nominal Size: 1 in
• Connection Type: FNPT Union
• Dimensions: 8-1/2 in W
• Material: Steel
• Flow Rate: 11 gpm
• Maximum Percentage of Glycol: 0.5
• Temperature Rating: 32 to 210 degrees Fahrenheit
• Working Pressure: 150 psi
• Insulation Material: PE-X
