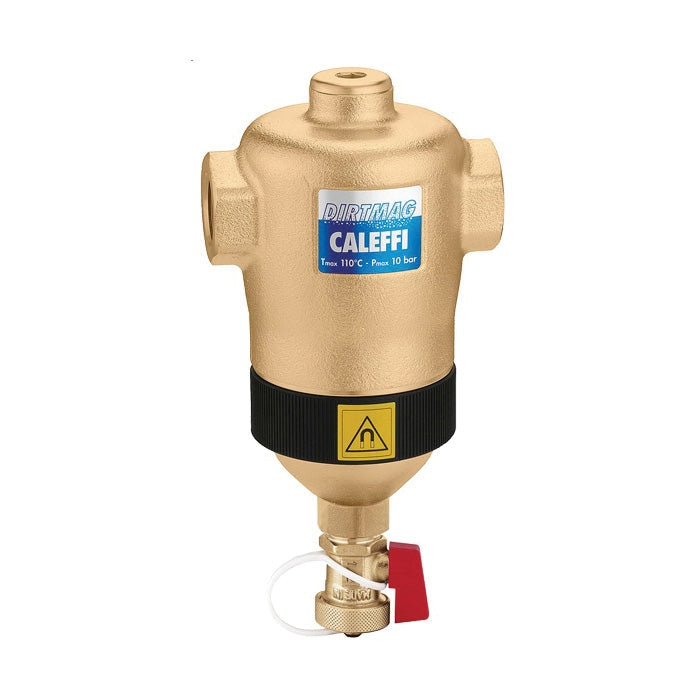

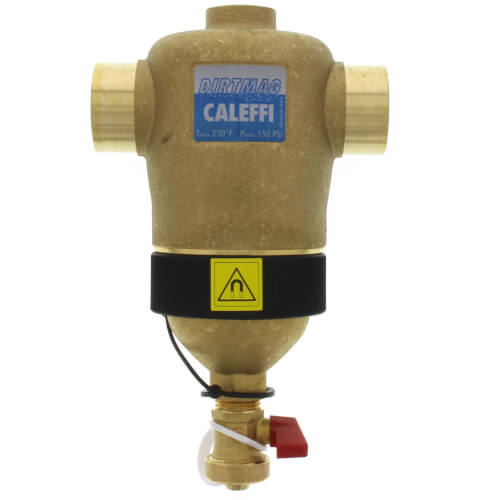

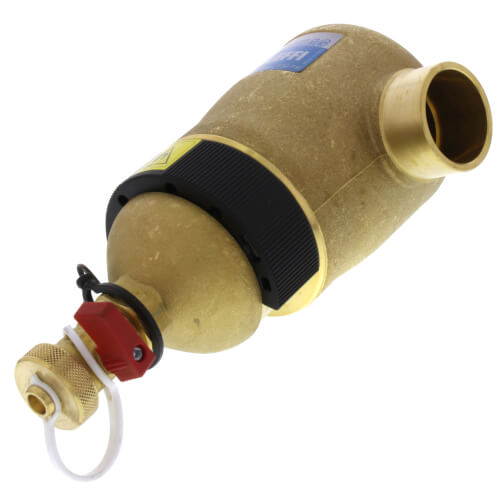

Caleffi 546335A DIRTMAG magnetic dirt separator 1-1/4 sweat

Product Description

The Caleffi 546335A DIRTMAG magnetic dirt separator is designed to continuously remove both ferrous and nonferrous impurities from hydronic systems. It features powerful removable magnets capable of removing up to 100% of ferrous impurities, including magnetite. This brass separator, with a 1-1/4 inch sweat connection, offers enhanced removal performance for heating and air conditioning systems, protecting them from microparticles.

• Removes up to 100% of ferrous impurities, including magnetite, from hydronic systems.
• Collects dirt particles as small as 5 microns for system purification.

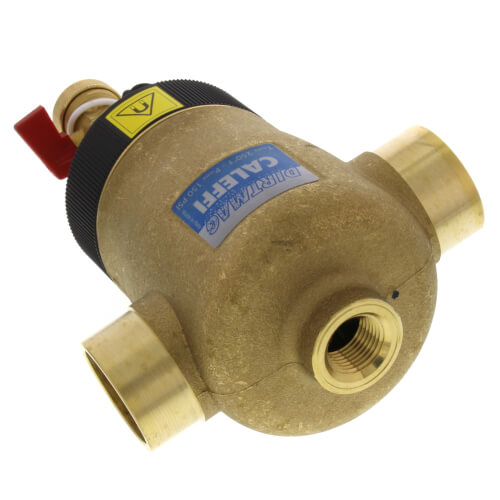

• Features a 1/2 inch NPT top thread with plug for versatile installation.

Product Highlights

Continuously removes ferrous and nonferrous impurities, enhancing system longevity and efficiency.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 546335A

Technical Specifications

• MPN: 546335A
• Product Type: MECHANICAL_COMPONENTS
• Manufacturer: Caleffi
• Brand: Caleffi
• Connection Type: Sweat
• Material: Brass
• Maximum Percentage of Glycol: 50 %
• Nominal Size: 1-1/4 in
• Particle Separation Capacity: 5 um
• Series: 5463
• Suitable Media: Water/Glycol Solution
• Temperature Rating: 32 to 250 deg F
• Working Pressure: 150 psi
