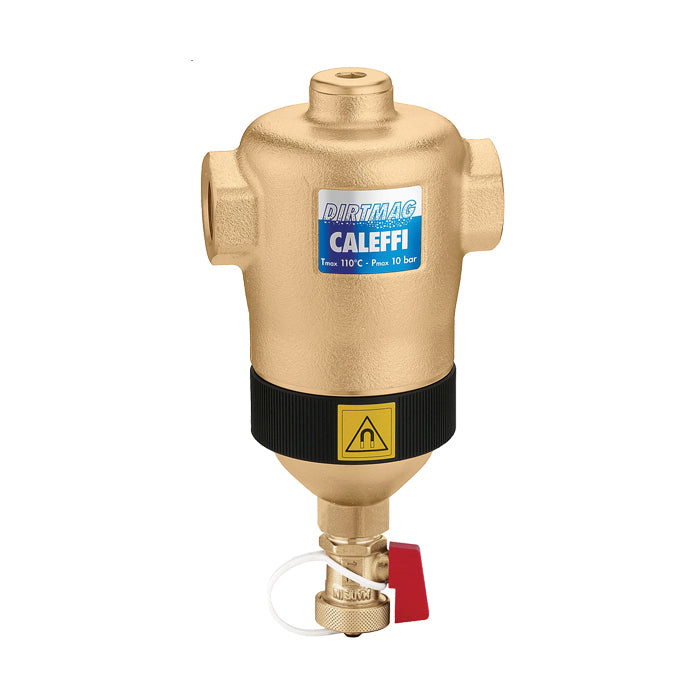

Caleffi 546308A Dirtmag 54623 Dirt Separator With Magnet 1-1/2 in

Product Description

The Caleffi 546308A is a dirt separator designed for heating and air conditioning control systems. It efficiently removes dirt particles from water, which helps prevent wear and damage to pumps and control valves. This unit collects impurities in a large chamber, allowing for flushing while the system operates. It effectively captures even the smallest dirt particles and maintains low head loss.

• High performance with 2.5 times the dirt removal capacity of standard separators.
• Magnetic separation for both ferrous and nonferrous impurities.
• Durable brass construction suitable for a range of temperatures.

Product Highlights

The Caleffi DIRTMAG® provides powerful dirt collection, enhancing system efficiency.

Product Information

Standard Information

• Brand: Caleffi
• Manufacturer: Caleffi

Technical Specifications

• Connection Type: FNPT
• Dimensions: 4-7/8 inches W
• Material: Brass
• Maximum Percentage of Glycol: 0.5
• Nominal Size: 1-1/2 inches
• Particle Separation Capacity: 5 microns
• Series: 54623
• Suitable Media: Water/Glycol Solution
• Temperature Rating: 32 to 250 degrees F
• Working Pressure: 150 psi
