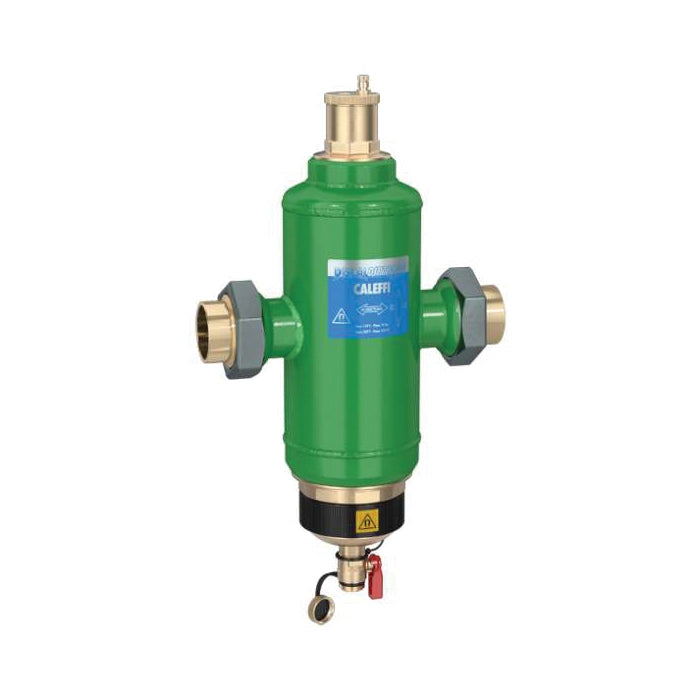

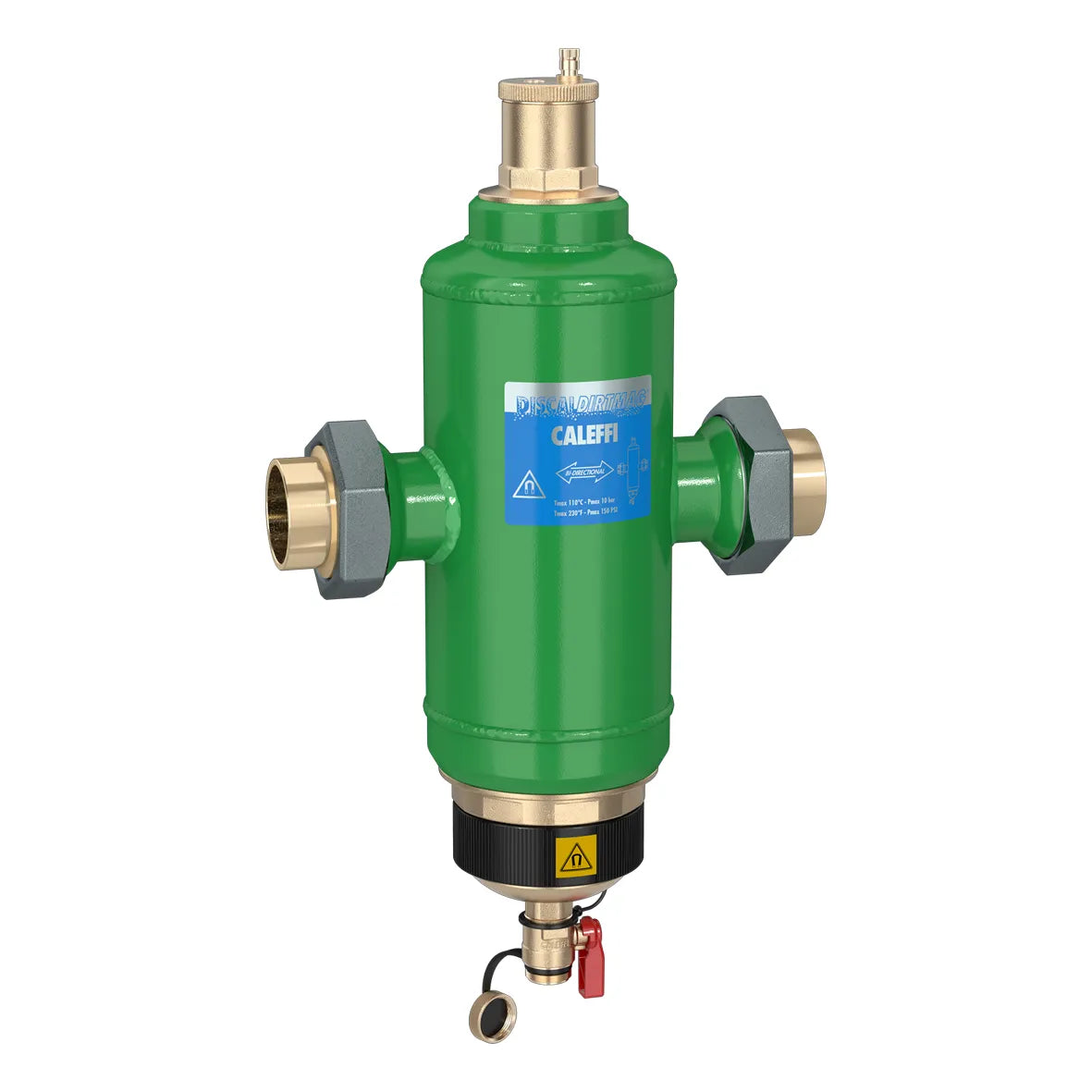

Caleffi 546198A Discaldirtmag Air and Dirt Separator 1-1/2 in

Product Description

The Caleffi 546198A is a Discaldirtmag air and dirt separator with magnet that combines air separation, dirt separation, and ferrous impurity capture for hydronic systems. An internal stainless steel mesh element coalesces micro-bubbles and captures non-ferrous debris down to 5 microns while rare-earth neodymium magnets remove ferrous impurities; captured debris can be blown down through the purge valve without taking the system offline. The 1-1/2 in union connection supports up to 15 gpm and 150 psi at 32 to 230 deg F.

• Combines air separation, dirt separation, and magnetic ferrous particle capture
• Stainless steel mesh internal element captures particles to 5 microns; stainless steel float guide pin and linkage
• 1-1/2 in union connection; supports 15 gpm, 150 psi, and 32 to 230 deg F; epoxy resin coated steel body with purge/drain valve

Product Highlights

1-1/2 in union air and dirt separator with neodymium magnet; 5 microns particle separation; 15 gpm; 150 psi; 32 to 230 deg F

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 546198A

Technical Specifications

• Brand: Caleffi
• MPN: 546198A
• Series: 5461
• Product Type: Air and dirt separator with magnet
• Nominal Size: 1-1/2 in
• Connection Type: C union (1-1/2 in union)
• Flow Rate: 15 gpm
• Particle Separation: 5 microns
• Material: Steel (body); internal element: stainless steel mesh
• Body Coating: Epoxy resin coated
• Internal Element: Stainless steel mesh
• Float Guide: Stainless steel float guide pin and linkage
• Magnet Type: Rare-earth neodymium magnet
• Included Accessories: Drain/purge valve (with cap) [external clip-on magnet may be included depending on kit]
• Maximum Working Pressure: 150 psi
• Temperature Range: 32 to 230 deg F
• Suitable Media: Water/glycol solution (up to 50% glycol)
• Length: 11-1/4 in
