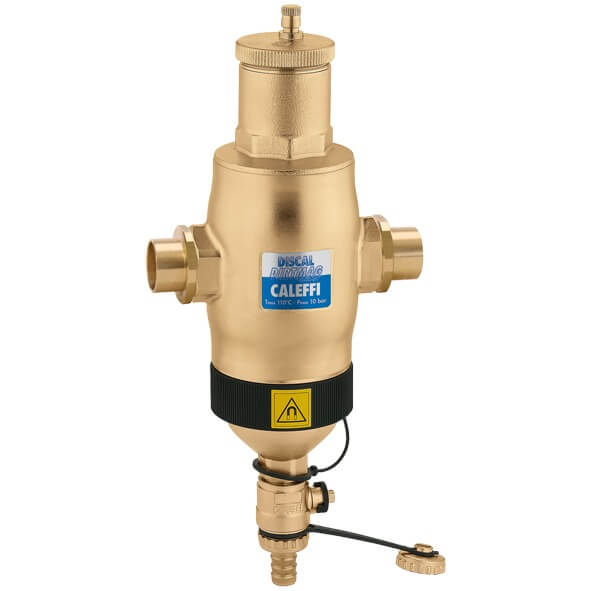

Caleffi 546166A DISCAL DIRTMAG Air & Dirt Separator w/ Magnet 1 Press

Product Description

The Caleffi DISCAL DIRTMAG Air & Dirt Separator with MPN 546166A is designed to improve the efficiency of hydronic systems by performing three critical functions: separating air, removing dirt, and capturing ferrous impurities. Its construction features a brass body and an internal screen element that aids in the automatic removal of air bubbles while trapping debris down to five microns in size.

• Brass body for durability.
• Reliable magnetic field for removing ferrous materials.
• High working pressure capacity.

Product Highlights

This separator enhances system performance by ensuring clean water circulation and protecting equipment from wear.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-546166A

Technical Specifications

• Size: 1 inch
• Connection Type: Press
• Max Working Pressure: 150 psi
• Working Temperature Range: 32 degrees F to 250 degrees F
• Material: Brass
• Weight: 5.8 pounds
• Shipping Dimensions: 13 inches x 7.5 inches x 4 inches
