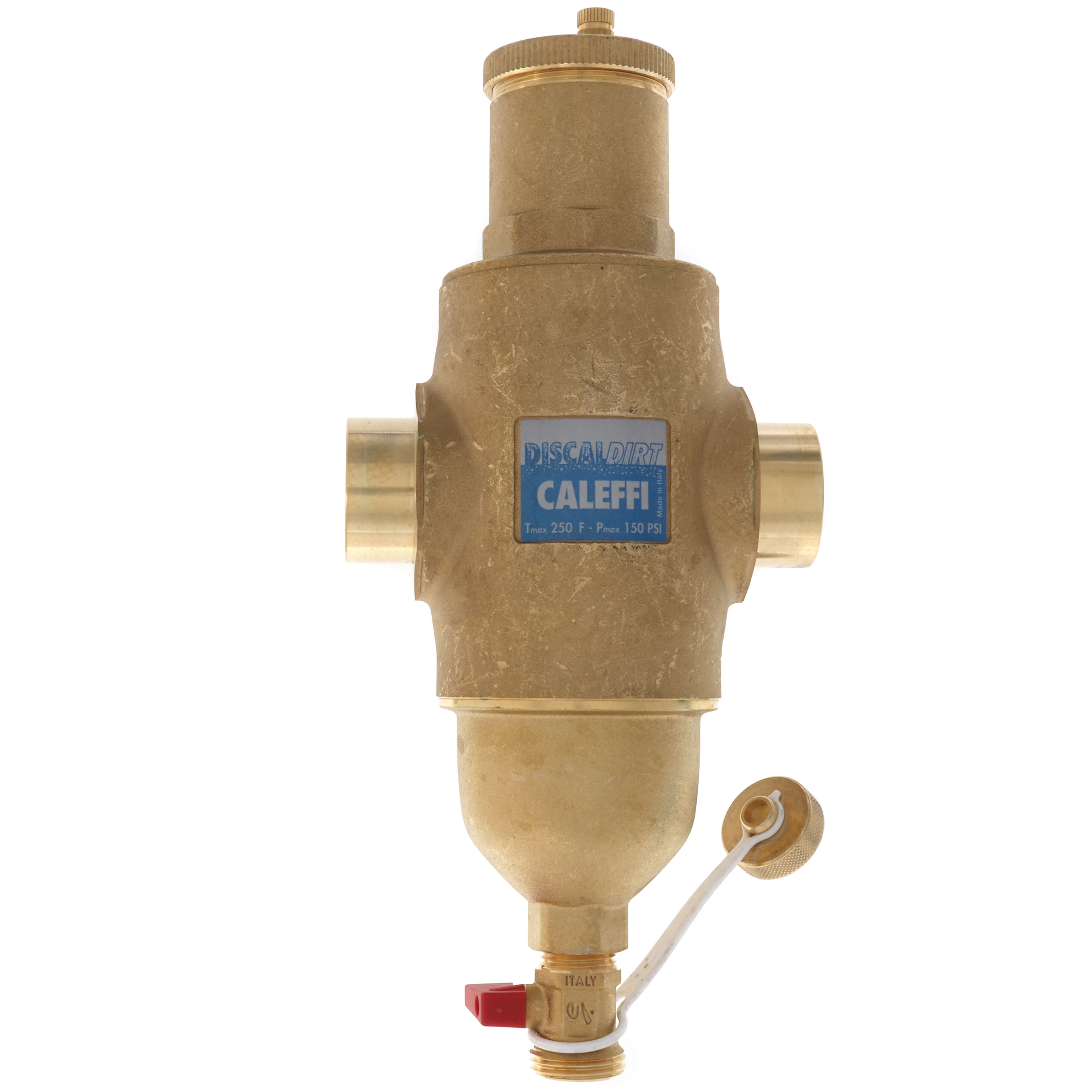

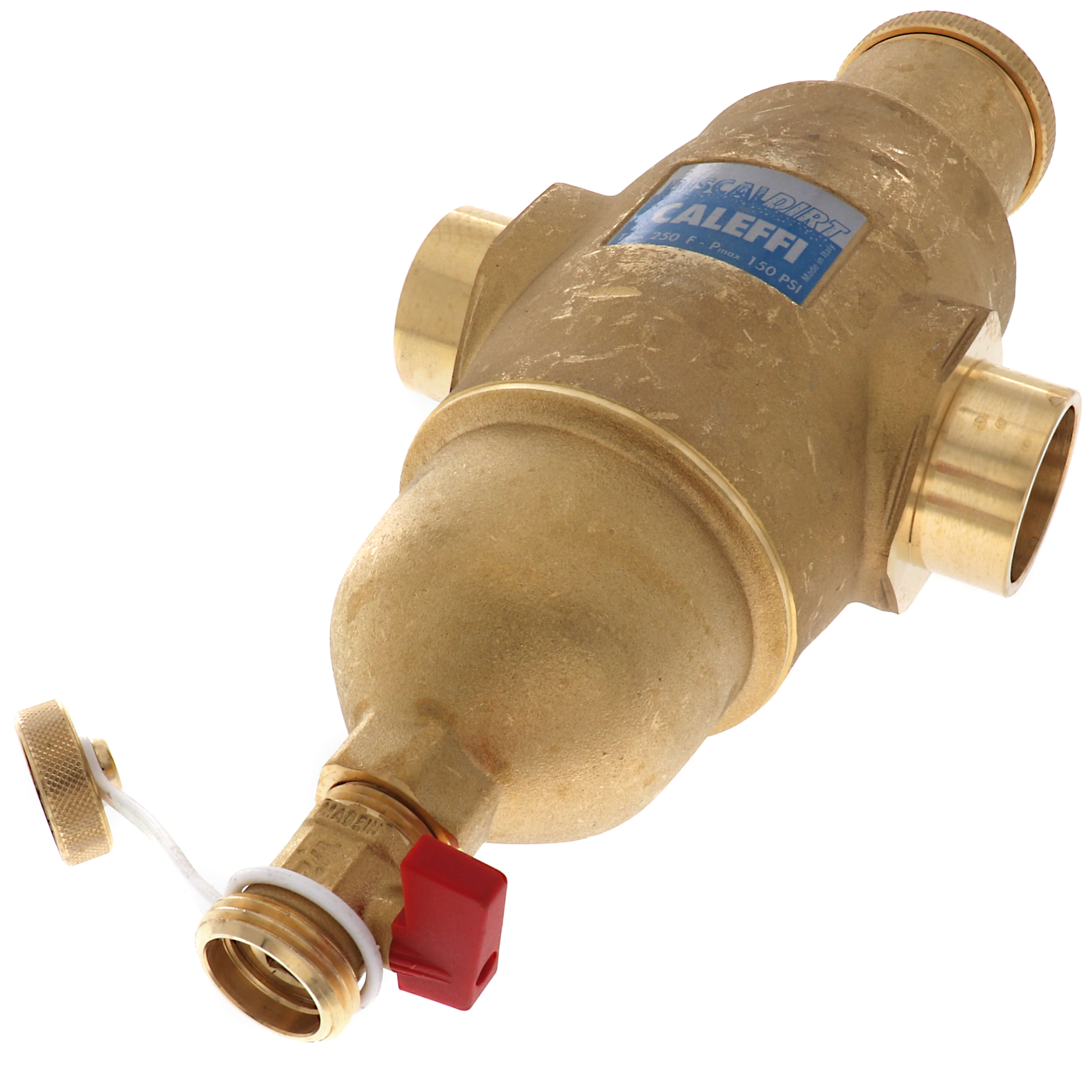

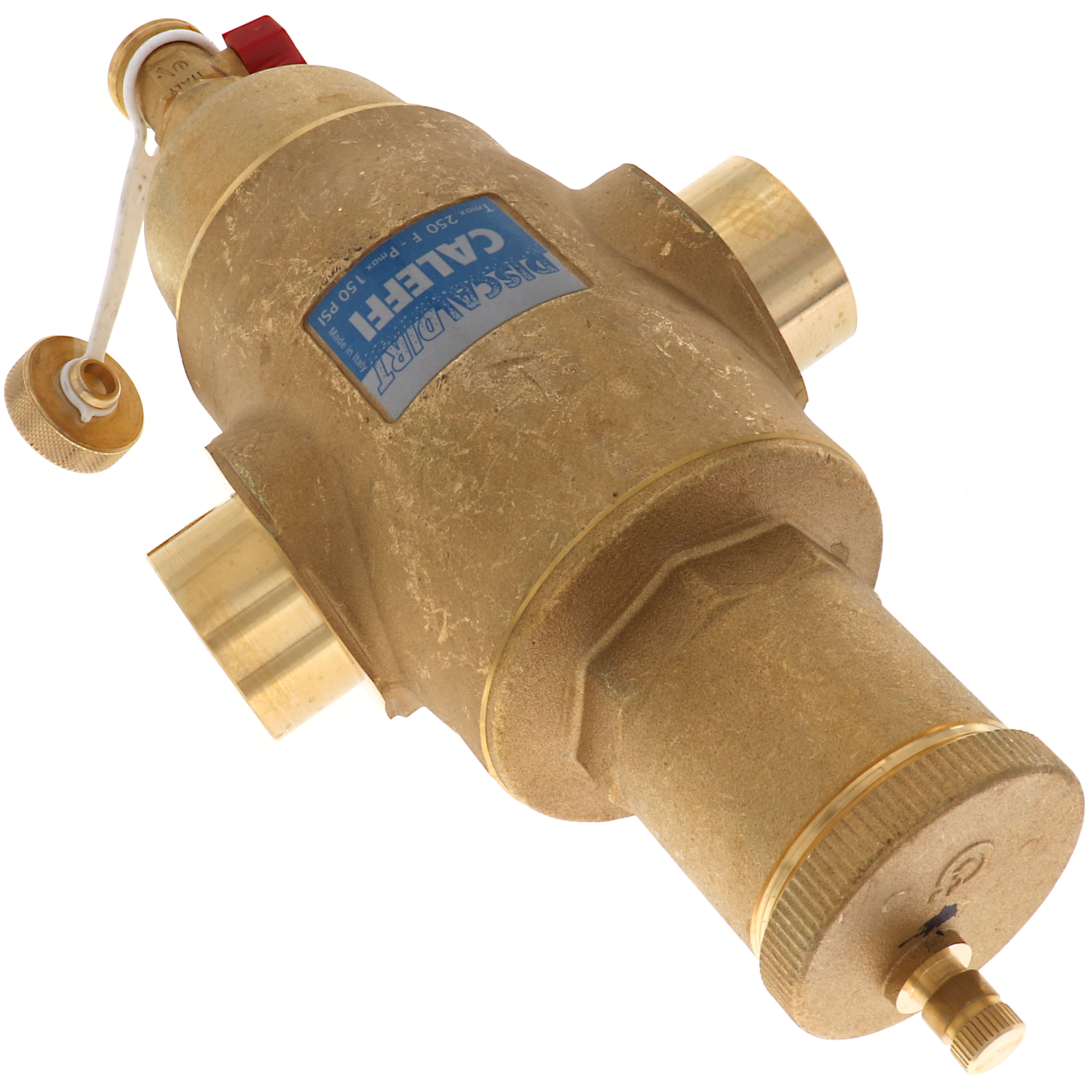

Caleffi 546097A DISCALDIRT Air & Dirt Separator 1-1/4 Sweat

Product Description

The Caleffi DISCALDIRT air and dirt separator, MPN 546097A, is designed for effective separation of air and dirt in heating systems. This unit features a coalescing element that promotes the release of micro-bubbles through specially designed concentric mesh surfaces, allowing for improved efficiency in air elimination.

• Coalescing element for air and dirt removal
• Brass construction for durability
• Automatic air release valve enhances operation

Product Highlights

The DISCALDIRT's design minimizes operational resistance while ensuring effective dirt separation down to 0.2 mil. Its low-velocity zone allows for significant dirt accumulation without clogging.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 546097A

Technical Specifications

• Connection Type: Sweat
• Size: 1-1/4 inches
• Max Pressure: 150 psi
• Working Temperature: 32 - 250 degrees Fahrenheit
• Particle Separation Capacity: 0.2 mil
• Weight: 6.595 lbs
• Shipping Dimensions: 13.15 inches (Depth) x 5.85 inches (Width) x 3.75 inches (Height)
