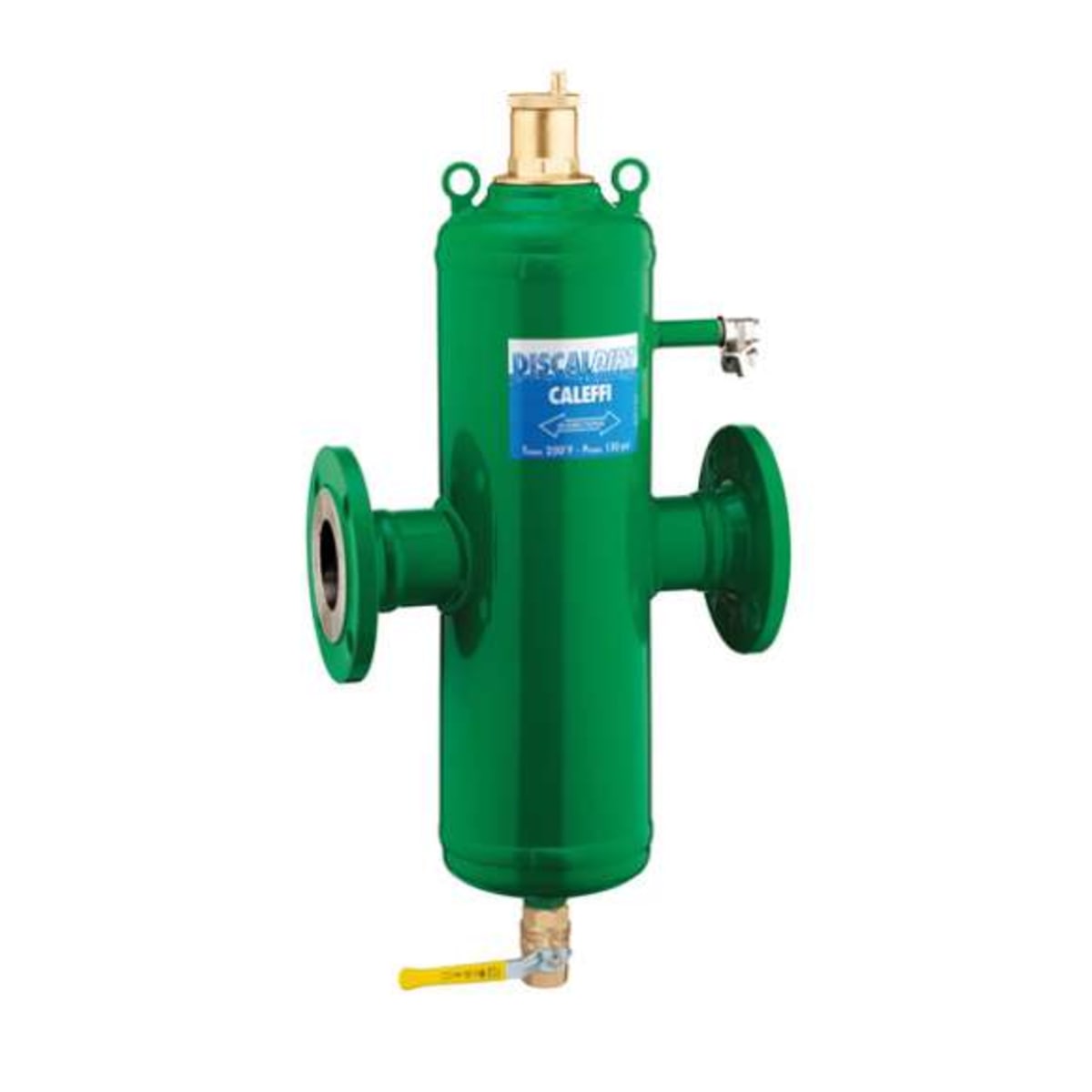

Caleffi 546080A 3 Flanged DISCALDIRT Air and Dirt Separator

Product Description

The Caleffi 546080A is a three-inch flanged air and dirt separator designed for effective operation in heating and cooling systems. This vital component efficiently eliminates air and impurities from hydronic circuits, improving system performance and integrity.

• Material: Steel with epoxy resin coating
• Temperature range: thirty-two to two hundred seventy degrees Fahrenheit
• Max flow rate: ninety-five gallons per minute

Product Highlights

This air and dirt separator features a stainless steel mesh internal element for enhanced filtration and a one-inch NPT male drain pipe for easy maintenance. The ANSI flanged connections ensure a secure and reliable fit.

Product Information

Standard Information

• Type: Non-Magnetic
• Connection Type: Flanged x Flanged

Technical Specifications

• MPN: 546080A
• Max Pressure: 150 psi
• Dimensions: eighteen and three-eighths inches long x thirty-four and a half inches high
• Flow Rate: ninety-five gallons per minute
• Particle Separation Capacity: five micrometers
• Suitable Media: Water and glycol solution
• Maximum Percentage of Glycol: fifty percent
• Standards Met: ANSI
