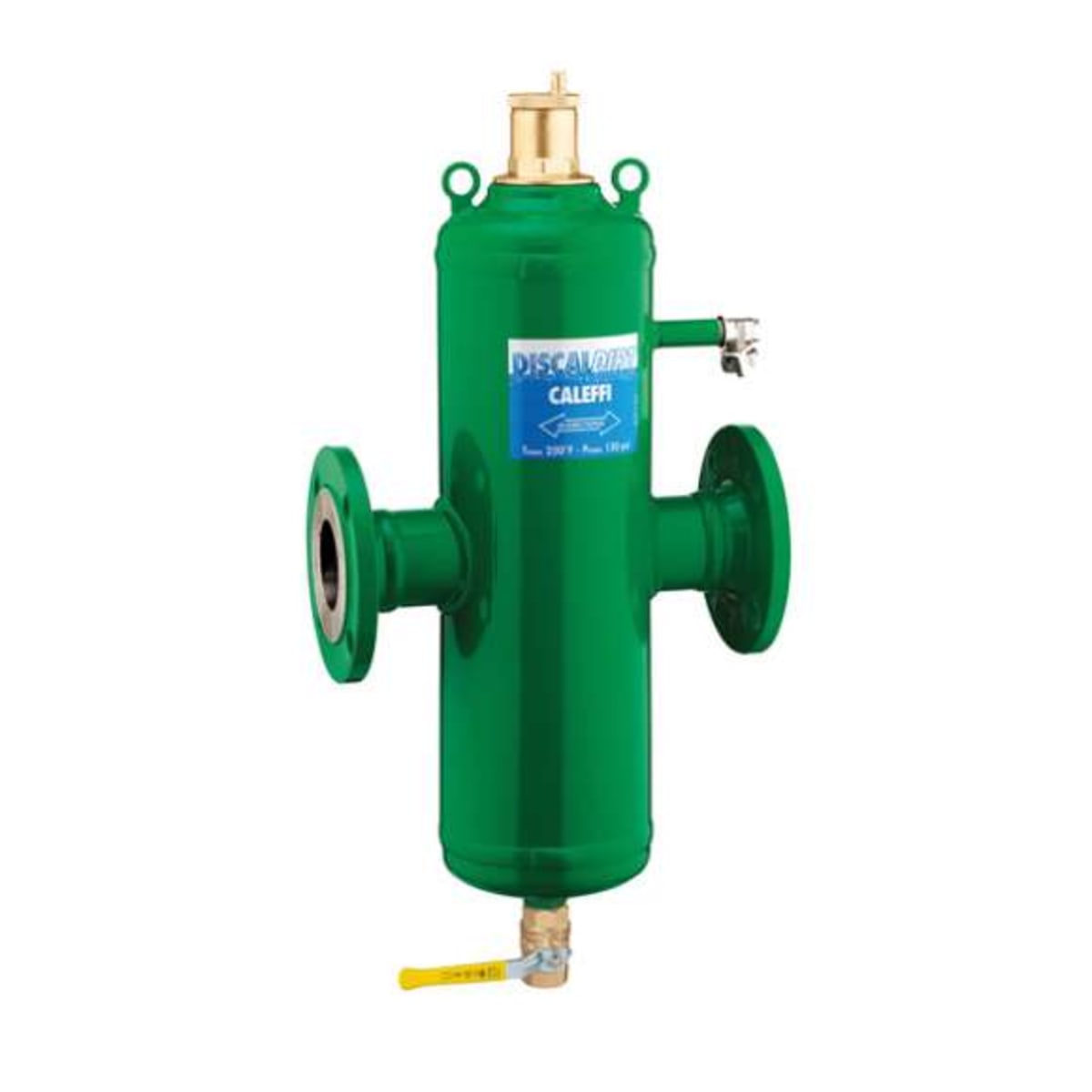

Caleffi 546050A DISCALDIRT Air & Dirt Separator 2 ANSI Flange

Product Description

The Caleffi DISCALDIRT Air & Dirt Separator, MPN 546050A, effectively removes air and dirt from heating and cooling systems. It is designed to handle air discharge efficiently, eliminating air down to the microbubble level. This separator is ideal for maintaining system performance and preventing noise or corrosion.

• Removes air and solid impurities from hydronic systems
• Flanged connection type for easy installation
• Suitable for both water and glycol solutions

Product Highlights

This unit is crucial for proper operation in any hydronic system, ensuring clean water circulation.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: 546050A

Technical Specifications

• Connection Type: ANSI Flange
• Nominal Size: 2 inches
• Flow Rate: 37 gpm
• Temperature Rating: 32 to 270 deg F
• Material: Steel
• Working Pressure: 150 psi
• Maximum Percentage of Glycol: 50%
• Particle Separation Capacity: 5 um
• Dimensions: 13-3/4 inches L x 28-1/4 inches H
